ProtoBoard - Wombat (PTH)
An empty canvas for electrical enthusiasts! Designed to fit the SFE project enclosures this project board gives you 8x10cm (3.15x3.94") of building space ...

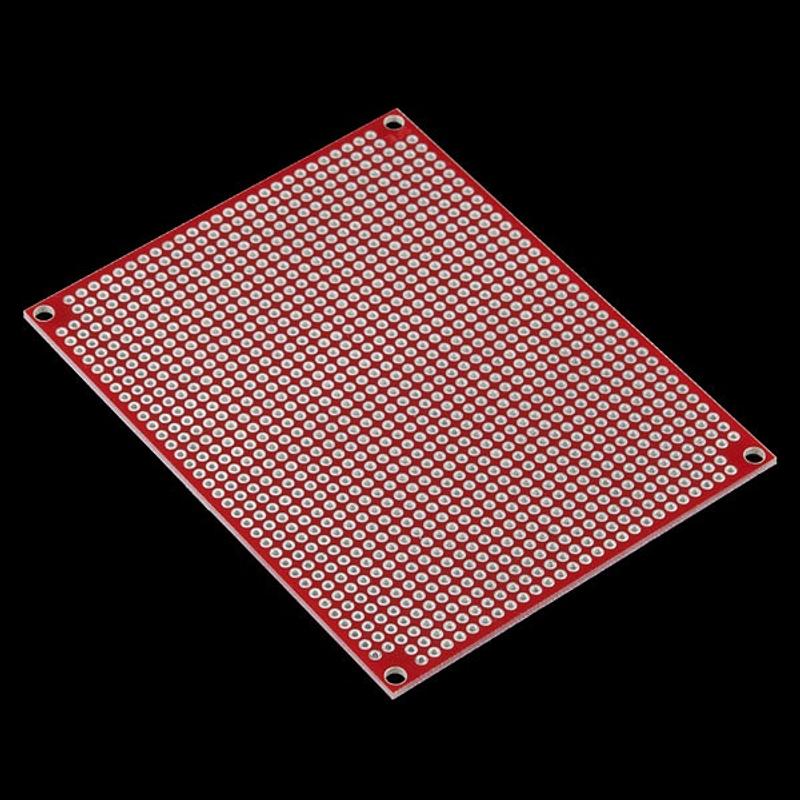

An empty canvas for electrical enthusiasts! Designed to fit the SFE project enclosures this project board gives you 8x10cm (3.15x3.94") of building space for through-hole components with 2.54mm (100mil) spaced holes. This is not your normal perf board! This board is much higher quality with plated-through-holes and annular rings that will not lift off the PCB under normal soldering conditions.
The marsupial naming convention is what happens when you let Engineers into a Marketing meeting. They looked so happy, we just couldn’t tell them no. Wombat is the board with nothing but PTH prototyping pads.
Check out our Unregulated Power Supply Tutorial!
Dimensions: 8x10cm (3.15x3.94")
Documents:
- GitHub (Design Files)
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
- PTH
- Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.
