MyoWare 2 Muscle Sensor Development Kit
· MPN: KIT-27920
This all-in-one electromyography (EMG) kit gives you the MyoWare 2 boards needed to experiment with different muscle-sensing setups. Depending on how you con...
Get notified when back in stock

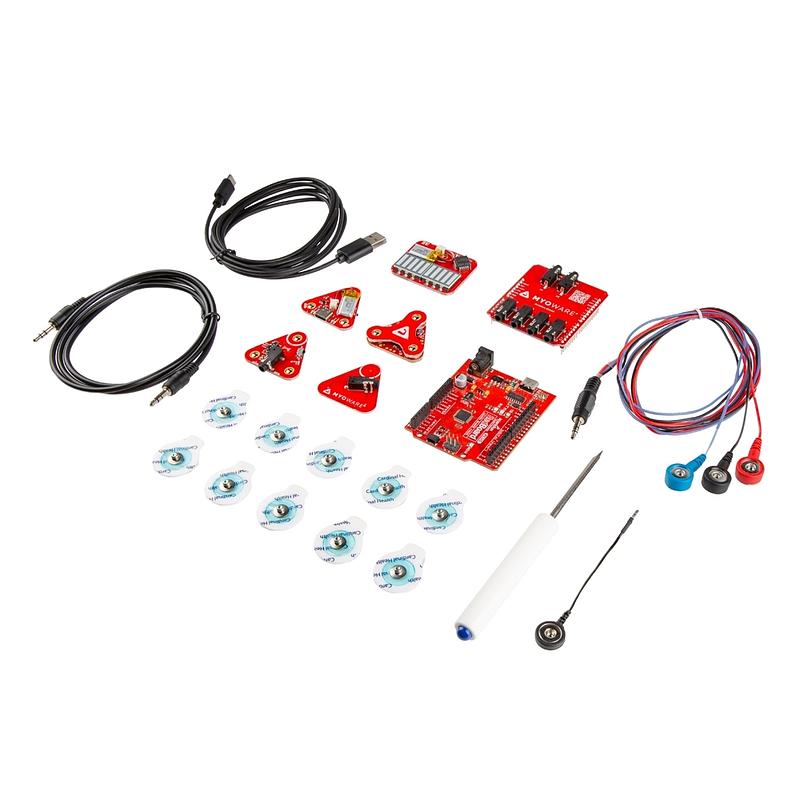

This all-in-one electromyography (EMG) kit gives you the MyoWare 2 boards needed to experiment with different muscle-sensing setups. Depending on how you configure it, you can visualise muscle activity with the MyoWare 2 LED Shield or read an analogue output with an Arduino-compatible microcontroller.
Setup is designed to be straightforward: snap on a MyoWare 2 Shield, add EMG sensor pads, attach the sensor to a muscle group, and flex. The solderless connector system makes it easier to move between the MyoWare 2 ecosystem boards without having to wire everything permanently.
The included MyoWare 2 Muscle Sensor measures surface electromyography (EMG/sEMG) by detecting the electric potential generated when a muscle flexes. It analyses filtered and rectified muscle activity and outputs a signal from 0-VIN volts, where VIN is the voltage of the power source, to indicate the degree of muscle flexion.

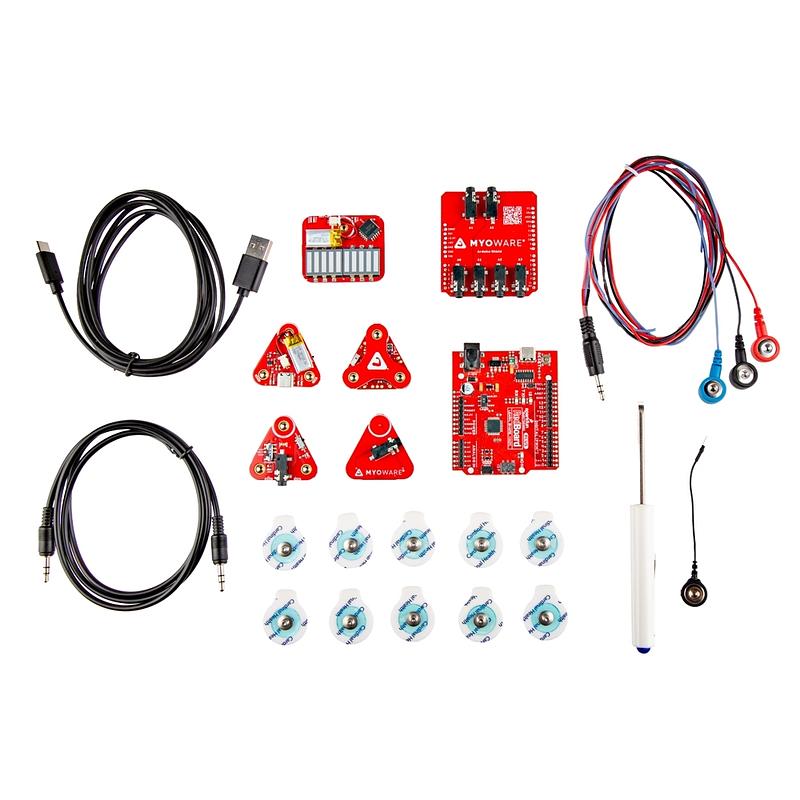

The kit includes accessories for development and testing, including a mini screwdriver, USB A to C cable, MyoWare 2 Reference Cable, sensor cable, 3.5mm TRS-to-TRS cable, RedBoard Plus, and rechargeable 40mAh LiPo batteries. It is designed to follow the standalone MyoWare 2 Power Shield and LED Shield examples, as well as examples for reading a single muscle sensor with an Arduino-compatible microcontroller.
