Monocle Magnifier - Illuminated
When working with small parts, sometimes you need magnification and some extra light. This is a monocle we use regularly in our production facility. It has a...
Get notified when back in stock

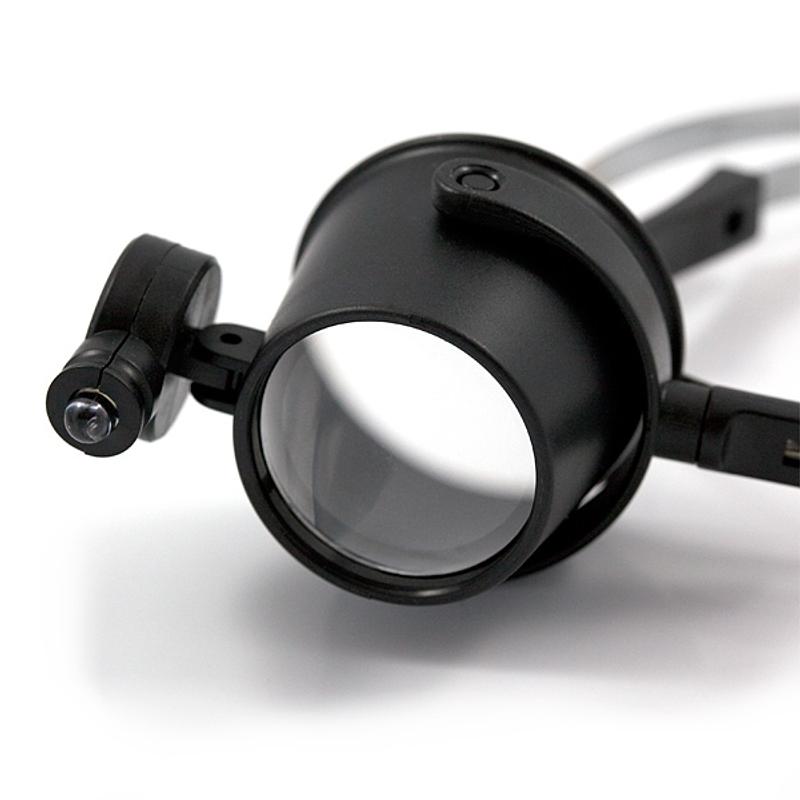

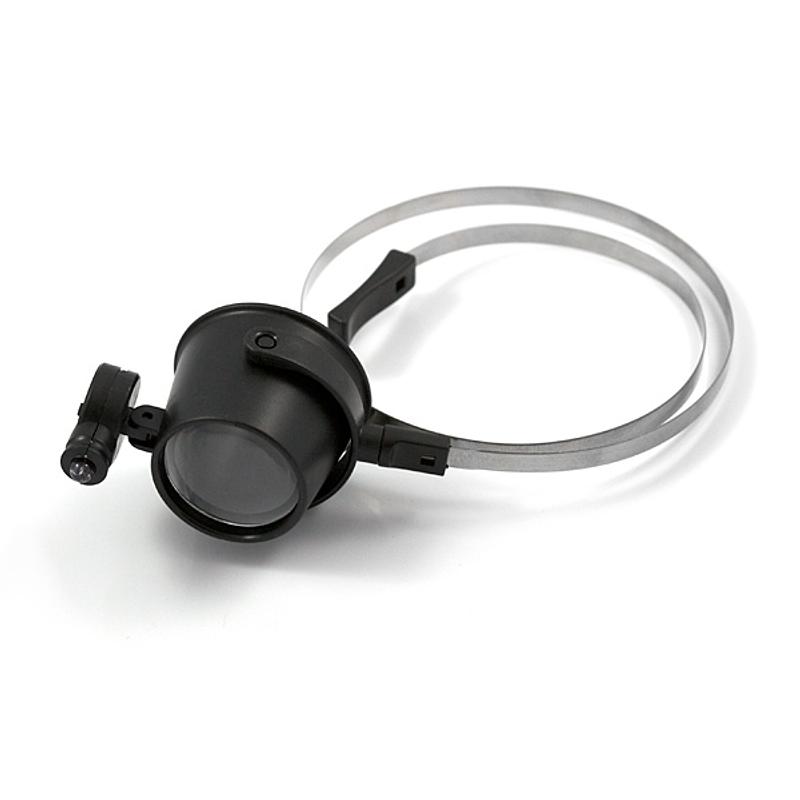

When working with small parts, sometimes you need magnification and some extra light. This is a monocle we use regularly in our production facility. It has a 10x lens with a working distance of about 1-½". The 1" diameter eye piece fits snugly around your eye with a 15" aluminum-core headband. The LED provides sufficient light at the working distance.
This loop magnifier set itself apart in our eyes because of the little LED on the side. Trying to view SMD connections is hard enough - the LED on the side is a huge help for those close up inspections.
LED battery comes installed.
Note: We’ve recently received a shipment of these magnifiers with 15x lenses instead of 10x. When ordering this product you may receive the 15x or the 10x as we transition the stock.
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
