Molex Cube PCB Mount GPS Antenna

Name: Molex Cube PCB Mount GPS Antenna
Brand: SparkFun
SKU: SF-GPS-29203
Price: 5.6 AUD
Availability: InStock

· MPN: GPS-29203

GPS & Location Sensors

$5.60 |

In stock at supplier

No reviews yet

This compact cube antenna from Molex is designed for GPS applications and surface mounting directly to a PCB. It covers a frequency range of 1.556GHz ~ 1.607...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

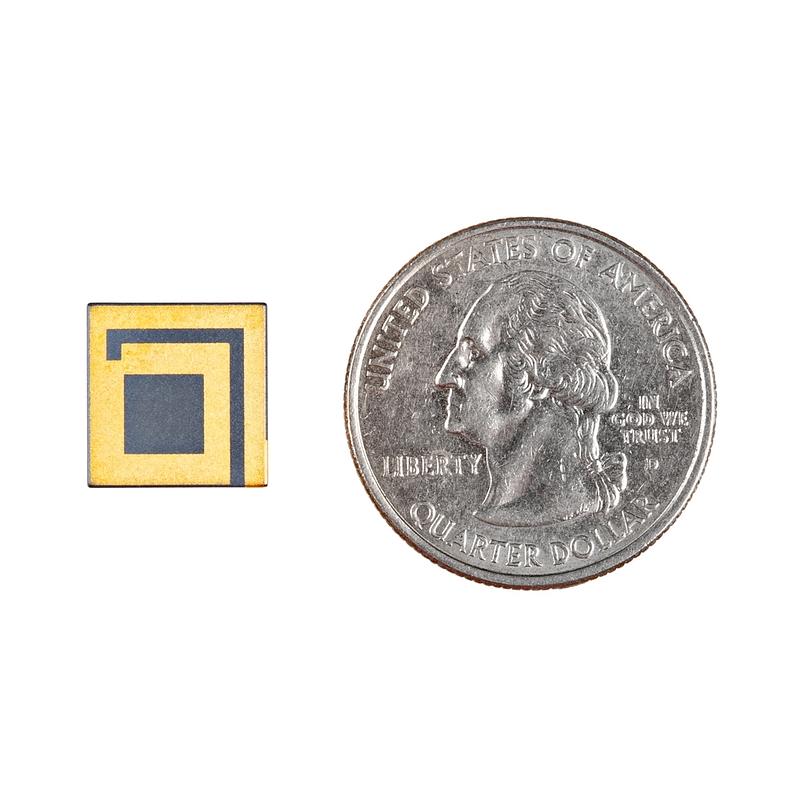

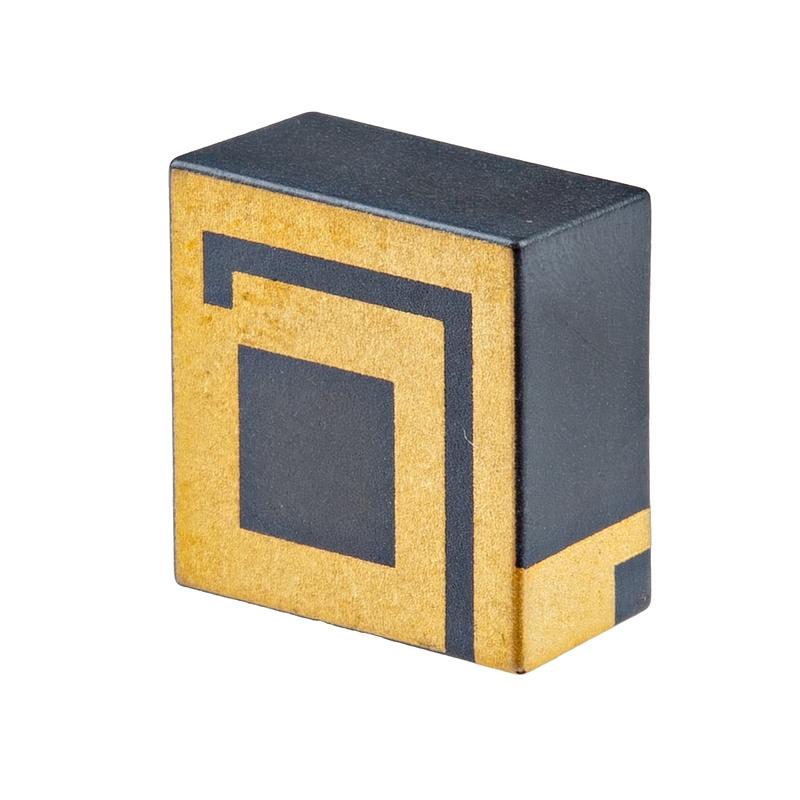

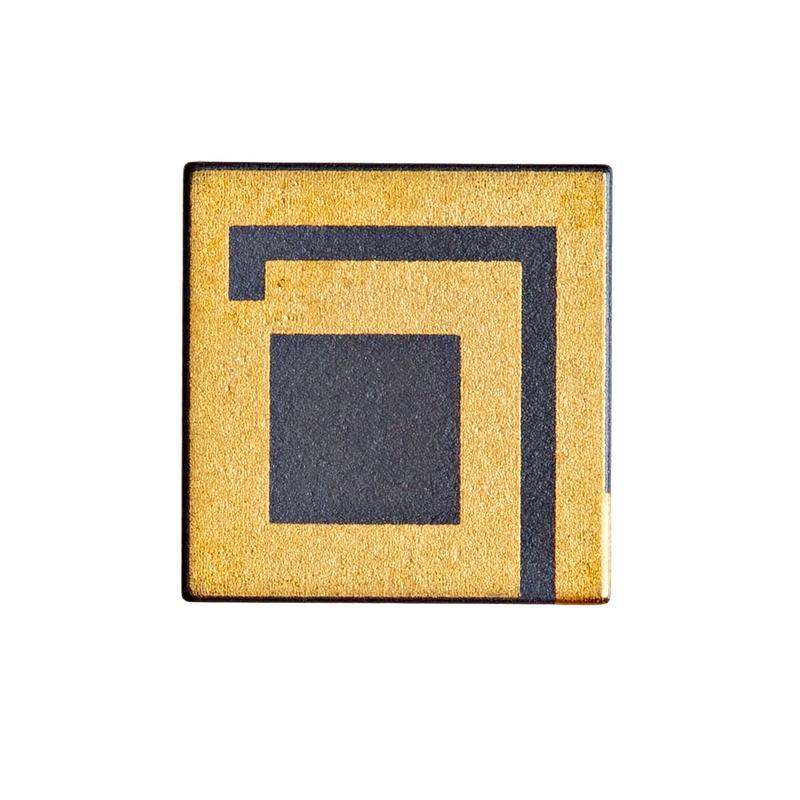

This compact cube antenna from Molex is designed for GPS applications and surface mounting directly to a PCB. It covers a frequency range of 1.556GHz ~ 1.607GHz, making it suitable for embedded positioning projects where a low-profile board-mounted antenna is required.

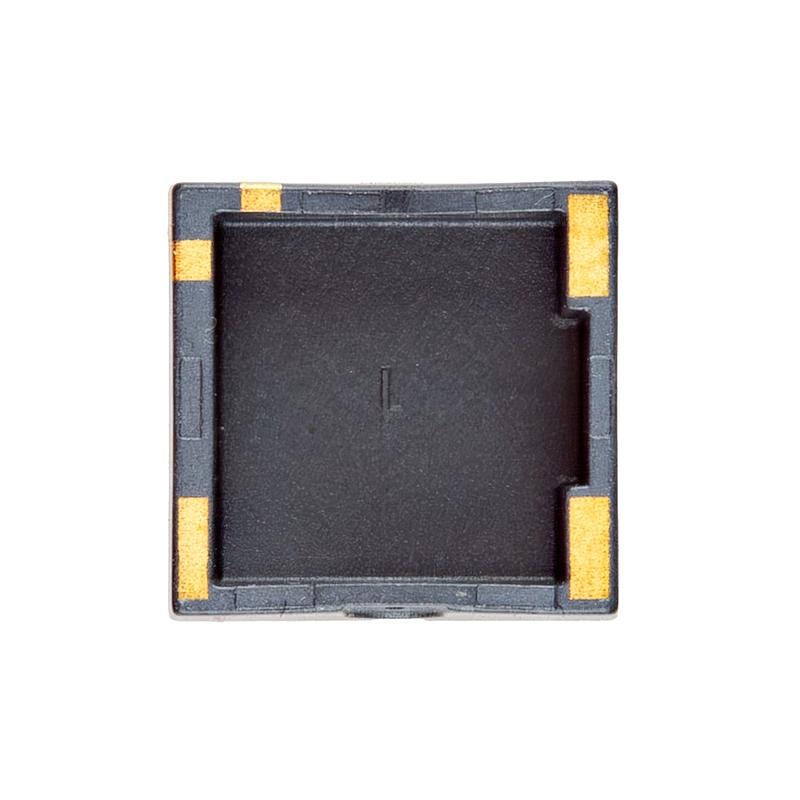

Electrical connectivity is via SMD pads, so it can be integrated into custom PCB designs without an external antenna lead. Its right handed circular polarisation and omnidirectional radiation pattern are suited to receiving satellite signals across a broad range of orientations.

Supplier documentation includes a datasheet and mechanical drawing for layout and integration reference.

Specifications:

Frequency range: 1.556GHz ~ 1.607GHz
Band #1: 1556MHz ~ 1566MHz
Band #2: 1571MHz ~ 1580MHz
Band #3: 1597MHz ~ 1607MHz
Electrical Connectivity: SMD
Peak Gain (dBi): 0.6 @ 1561MHz
Peak Gain (dBi): 1.1 @ 1575MHz
Peak Gain (dBi): 1.1 @ 1602MHz
Return Loss - S11 (dB): <-10
Total Efficiency: >55% @ 1561MHz
Total Efficiency: >57% @ 1575MHz
Total Efficiency: >60% @ 1602MHz
Polarization: Right Handed Circular
Radiation Pattern: Omnidirectional

A practical choice for custom GPS receiver boards and compact positioning hardware that needs a PCB-mounted antenna solution.

Jargon buster

Plain-language definitions for the technical terms used above.

GPS: The US satellite navigation system used by GNSS receivers to calculate position and time. Support for GPS is important because it is widely available and often used together with other constellations for more reliable positioning.
PCB: A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
SMD: SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
