DFRobot Gravity LED Button for Arduino and micro:bit - White
· MPN: DFR0785-W
This Gravity LED button is a simple illuminated push button with a transparent cap, designed for interactive Arduino and micro:bit projects. When the button ...
Get notified when back in stock

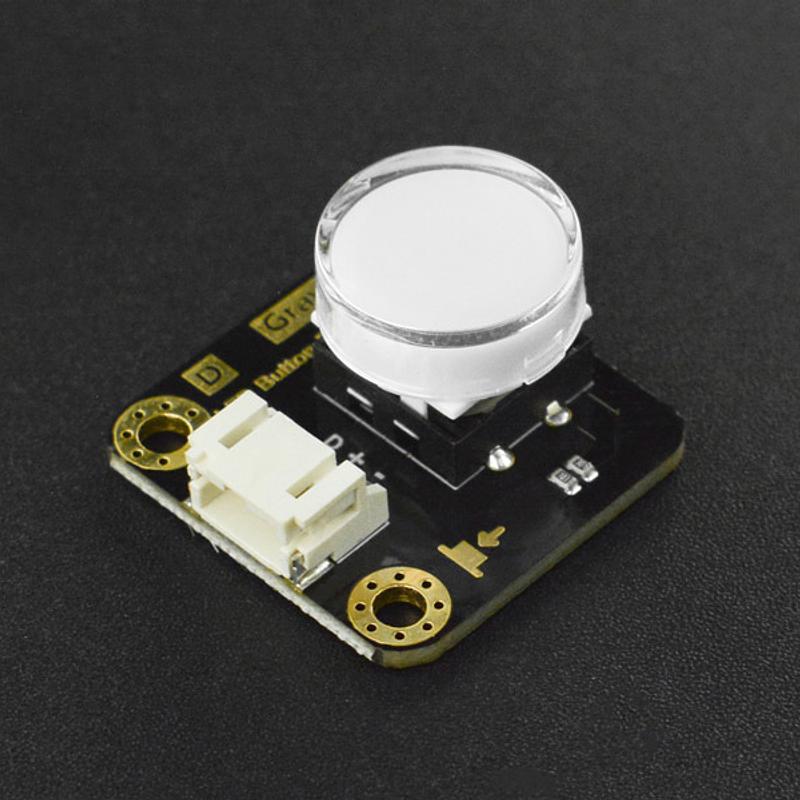

This Gravity LED button is a simple illuminated push button with a transparent cap, designed for interactive Arduino and micro:bit projects. When the button is pressed, the internal white LED turns on to provide clear visual feedback.
The module behaves like a basic digital switch: when pressed down it outputs High and the LED lights up, and when released it outputs Low and the LED turns off. It uses the Gravity PH2.0-3P connector for straightforward wiring into compatible projects.

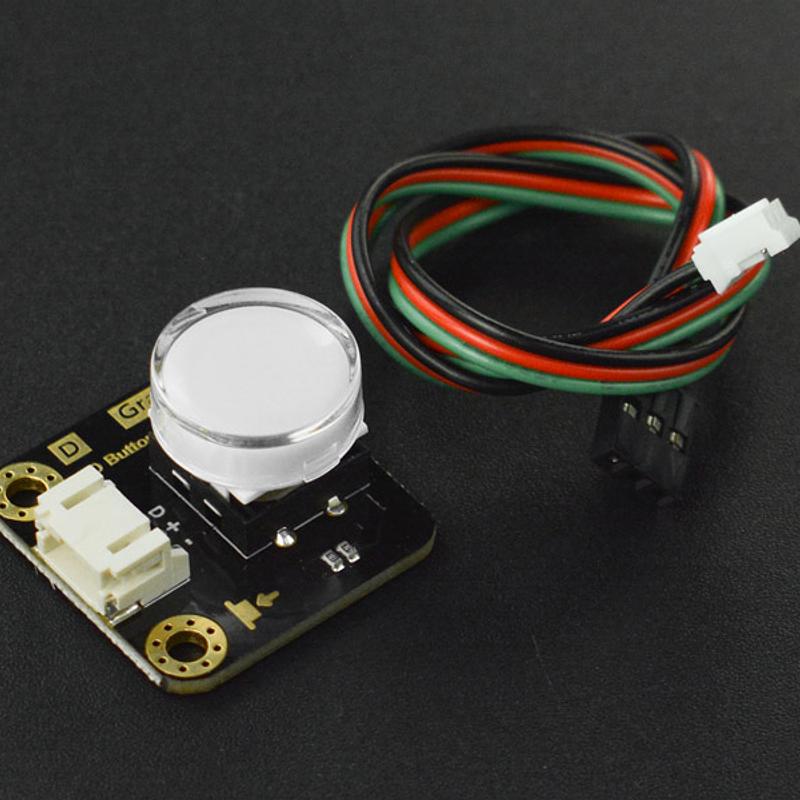

Included in the pack are one Gravity LED Button - White and one digital sensor connector.
Features:
- Internal LED turns On when the button is pressed down.
Specifications:
- Operating Voltage: +3.3-5V (3.3V is recommended)
- Output: digital
- Connector: PH2.0-3P
- Dimension: 27×26.5mm/1.06×1.04”
- Colors Available: red, yellow, green, blue, white
A handy input module for games, classroom builds, interactive displays, and simple user controls where visible button feedback is useful.
