GPS Receiver - GP-735 (56 Channel)
The GP-735 is a slim, ultra-high performance, easy to use GPS smart antenna receiver. With -162dBm tracking sensitivity and only 29 second cold start time, t...
Get notified when back in stock

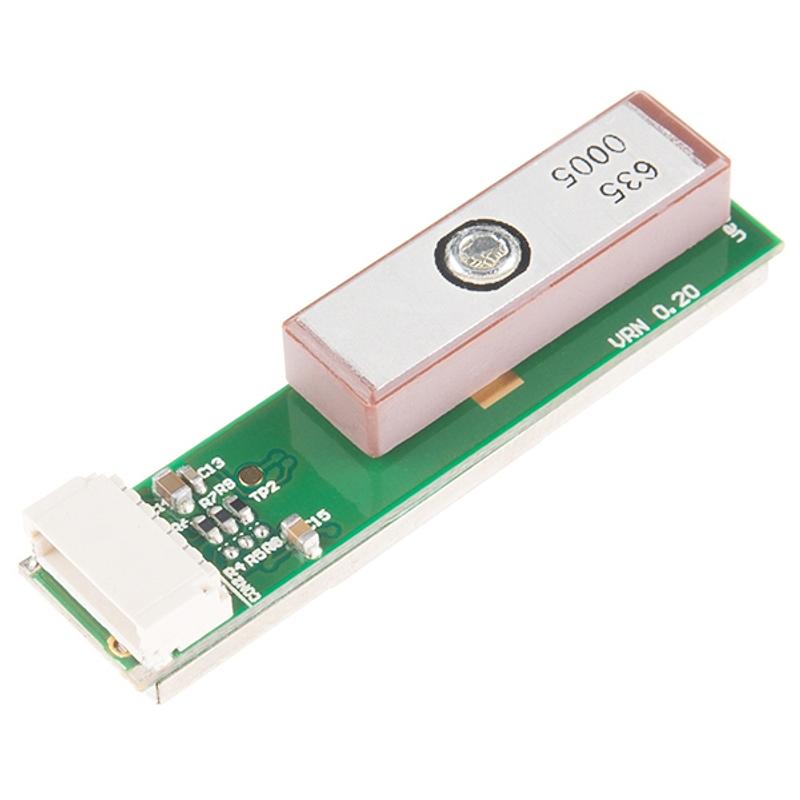

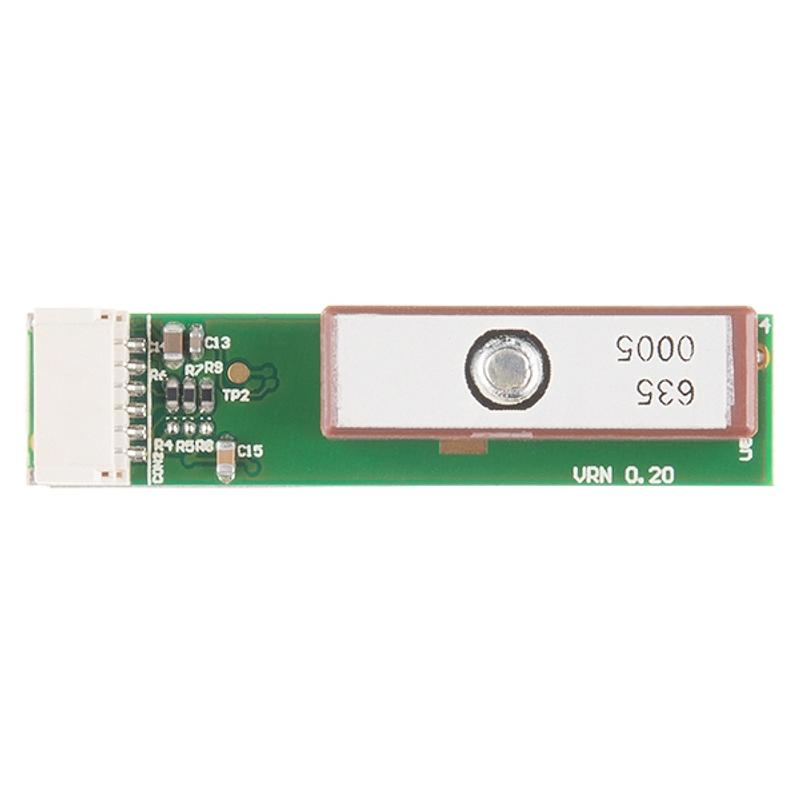

The GP-735 is a slim, ultra-high performance, easy to use GPS smart antenna receiver. With -162dBm tracking sensitivity and only 29 second cold start time, the GP735 is a tiny, yet powerful, piece of tech. The slim design makes it ideal for applications where you don’t have a lot of space to work in. Really it’s quite small.
This 56-channel GPS module, based on the uBlox 7th generation chipset, has an operating voltage of 3.3~5.5V, an antenna on board, and connects to your system via TTL serial. The 1Hz update rate is fast enough for the majority of applications (and can be increased to 10Hz if you need) so whether you’re tracking a pet or building an autonomous car, the GP-735 has you covered!

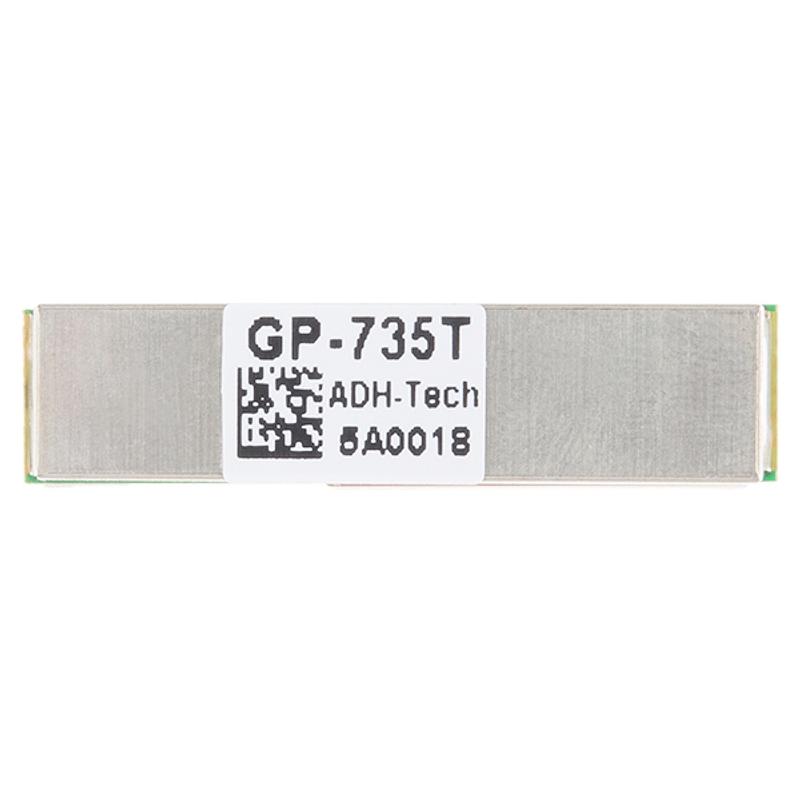

Note: We are carrying the “T” option of this module which is TTL-UART and not USB.

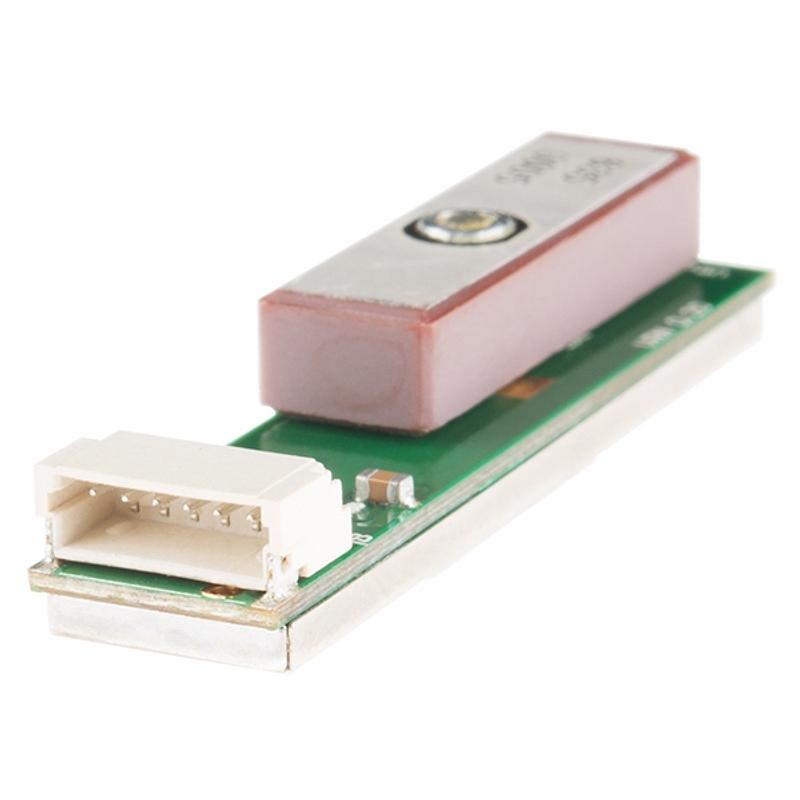

Note: This receiver works with 6-pin 1mm pitch JST type cables and connectors which you can find in the Recommended Products section below!

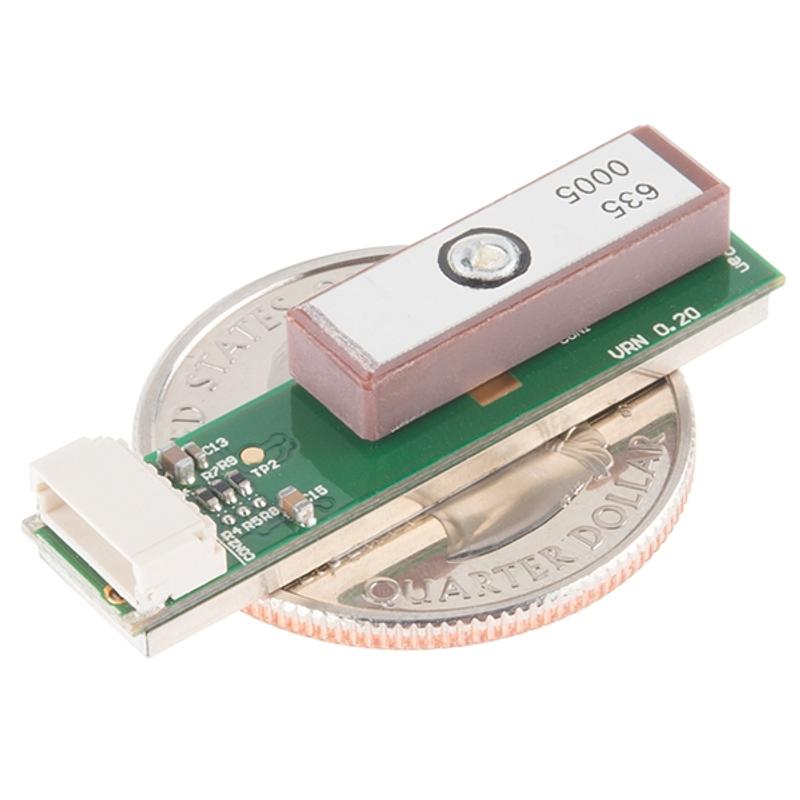

Dimensions: 35 x 8 x 6.5 mm
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- GPS
- The US satellite navigation system used by GNSS receivers to calculate position and time. Support for GPS is important because it is widely available and often used together with other constellations for more reliable positioning.
- TTL serial
- A simple serial data connection that uses microcontroller logic-level voltages (typically 3.3 V or 5 V) rather than the higher, inverted voltages of computer RS-232. When a device lists TTL serial, it can usually wire straight to a microcontroller's UART pins or to a USB-to-TTL serial adapter, but it needs a level converter before connecting to a true RS-232 port.
- UART
- UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.
