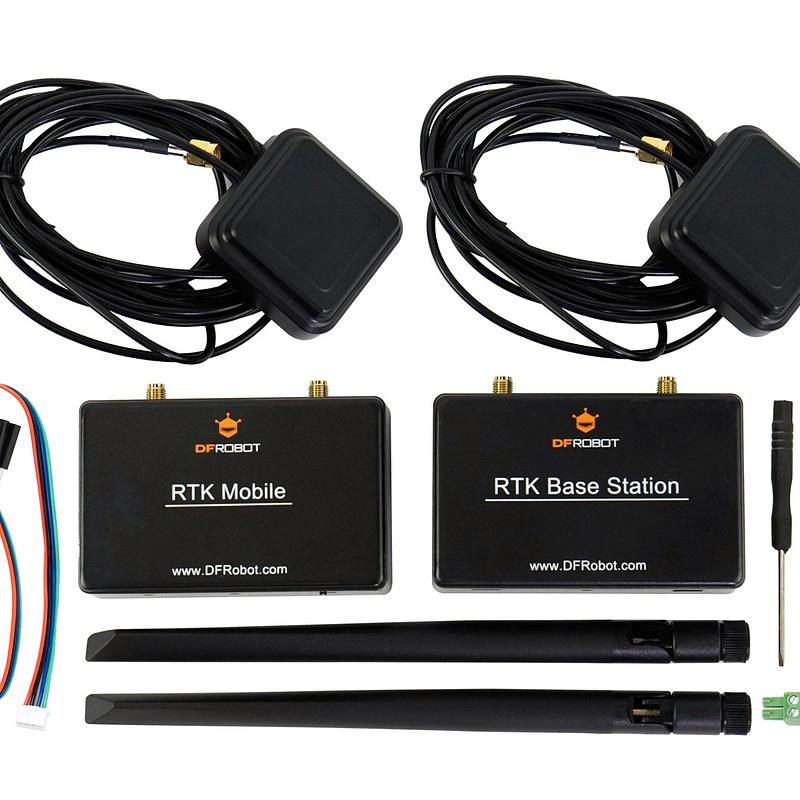

GNSS-RTK Positioning Kit with LoRa 868MHz (EU)

Jargon buster

Plain-language definitions for the technical terms used above.

1PPS

One Pulse Per Second is a precise timing signal often provided by a satellite positioning receiver. It matters when a project needs very accurate time alignment, such as timestamping logged data.

B2a

A BeiDou satellite signal used by newer dual-band GNSS receivers. Support for B2a can improve accuracy and reliability when combined with other GNSS bands.

BDS

BeiDou, China’s satellite navigation system. Support for BDS gives the receiver access to more satellites, which can help maintain a better position fix in challenging locations.

E1

A Galileo satellite signal band used for standard positioning. Knowing which signal bands are supported helps you judge compatibility and expected performance of a GNSS receiver.

E5a

A Galileo satellite signal band used for higher-performance positioning services. Support for E5a can help dual-band GNSS receivers improve accuracy and reduce errors from atmospheric delay.

EGNOS

Europe’s SBAS service for improving GNSS positioning accuracy and reliability. It is relevant if the receiver will be used in Europe or nearby supported areas without an RTK correction link.

GAGAN

India’s SBAS service for improving GNSS positioning. It matters for projects in its coverage region because it can improve standard GNSS accuracy when RTK is not being used.

Galileo

Europe’s satellite navigation system. Galileo support can improve satellite availability and accuracy, especially when combined with GPS and other constellations.

GLONASS

Russia’s satellite navigation system. A receiver that can also use GLONASS has more satellites to choose from, which can improve positioning reliability when the sky view is partly blocked.

GNSS

GNSS stands for Global Navigation Satellite System, an umbrella term for satellite positioning networks such as GPS, GLONASS, Galileo and BeiDou. Receivers use these satellites to determine position, and high-precision units can output a steady stream of serial position data.

GPS

The US satellite navigation system used by GNSS receivers to calculate position and time. Support for GPS is important because it is widely available and often used together with other constellations for more reliable positioning.

Gravity

Gravity is DFRobot’s plug-in connector system for sensors, motors and modules, using standard cables to reduce loose jumper wiring. It matters because Gravity-compatible parts can connect directly to these ports, while non-Gravity parts may need adapters or manual wiring.

I2C

I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.

L5

A modern GNSS signal band used by several satellite systems for more accurate and robust positioning. Dual-band receivers that include L5 can often perform better than single-band receivers, especially for RTK and areas with reflected signals.

LC29H

A series of Quectel GNSS receiver modules used for satellite positioning, with some variants supporting high-precision RTK. The exact module matters because it determines which satellite systems, signal bands, correction formats, update rates and RTK features a receiver can support.

LLCC68

A Semtech LoRa radio chip used to send and receive long-range low-power wireless data. The radio chip affects the wireless link’s frequency support, transmit power and receiver sensitivity.

LoRa

LoRa is a long-range, low-power wireless radio technology often used for telemetry, remote sensors and other links that send small amounts of data over long distances. It is distinct from Bluetooth and WiFi, so sharing a connector or pinout with LoRa hardware does not mean a device actually uses LoRa.

LoRa Spread Spectrum

A radio modulation method used by LoRa that spreads a small amount of data across the radio band, trading data rate for long range and strong tolerance to noise and interference. It lets a device send data reliably over long distances at low power, which suits links such as telemetry, sensor networks or relaying correction data.

MSAS

Japan’s SBAS service for improving GNSS positioning. It is useful to know because SBAS benefits depend on whether your project is located in the service’s coverage area.

NMEA 0183

A standard text-based data format used by GPS and GNSS receivers to report position, time and satellite information as lines of plain ASCII text. When a receiver outputs NMEA 0183, most microcontrollers and software libraries can parse its basic location data.

ppm

ppm means parts per million, a common way to express very small gas concentrations in air. For CO₂ sensors, the ppm range tells you what levels the sensor can measure, such as normal indoor air through to poorly ventilated spaces.

QZSS

Japan’s regional satellite navigation system designed to improve coverage around Japan and the Asia-Pacific region. QZSS support can improve satellite availability in supported regions when used alongside GPS.

RF

RF means radio frequency, referring to signals used for wireless communication and other high-frequency electronics. A low-noise, stable power supply is important for RF circuits because power noise can affect signal quality and measurements.

RTCM 3.x

RTCM 3.x is a standard data format used to send GNSS correction information from a base station to a rover. It matters because both ends of an RTK setup need to understand the correction format to achieve high-accuracy positioning.

RTK

Real-Time Kinematic positioning is a GNSS technique that uses correction data from a base station to greatly improve location accuracy. It matters if you need centimetre-level positioning for robotics, mapping, surveying, or tracking rather than ordinary metre-level GPS accuracy.

SBAS

Satellite-Based Augmentation System, a set of regional services that broadcast correction information for GNSS receivers. SBAS can improve ordinary GPS-style positioning, although it is not the same as centimetre-level RTK correction.

SMA

SMA is a small threaded coaxial (RF) connector widely used to attach antennas and other radio-frequency cables. A device with SMA antenna ports needs antennas or pigtails with matching SMA connectors, or a suitable adapter, to connect to them.

Terminal block

A terminal block is a connector that joins wires together in a neat, removable, or serviceable way, usually clamping each wire under a screw or spring instead of soldering. It makes it easier to connect, change, or service wiring without permanent joints.

Type-C

USB Type-C (USB-C) is a small, reversible USB connector used for charging, power, and data transfer on many modern devices. A Type-C port or plug indicates the cable and charger connection needed to power, charge, or communicate with a device.

UART

UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.

UAV

UAV stands for Unmanned Aerial Vehicle, an aircraft that flies without an onboard pilot, such as a drone or autonomous aircraft. Because airborne platforms have limited payload, factors like weight, power draw and any positioning features such as GNSS or RTK are often important considerations.

WAAS

A North American SBAS service that provides correction data for GNSS receivers. It matters if you are using the product in a supported region and want better non-RTK positioning accuracy.
