Digital Temperature humidity sensor (With Stainless Steel Probe)
All Products
Humidity Sensors
New Arrivals
Sensors
Temperature Sensors
Environmental (temperature, humidity, air quality)
DFRobot
Sensors & Modules
$54.10
|
In stock at supplier
This is an anti-rust, robust and precise SHT10 sensor, which can master enterprise-class and industrial-level applications. It can be applied in various fie...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

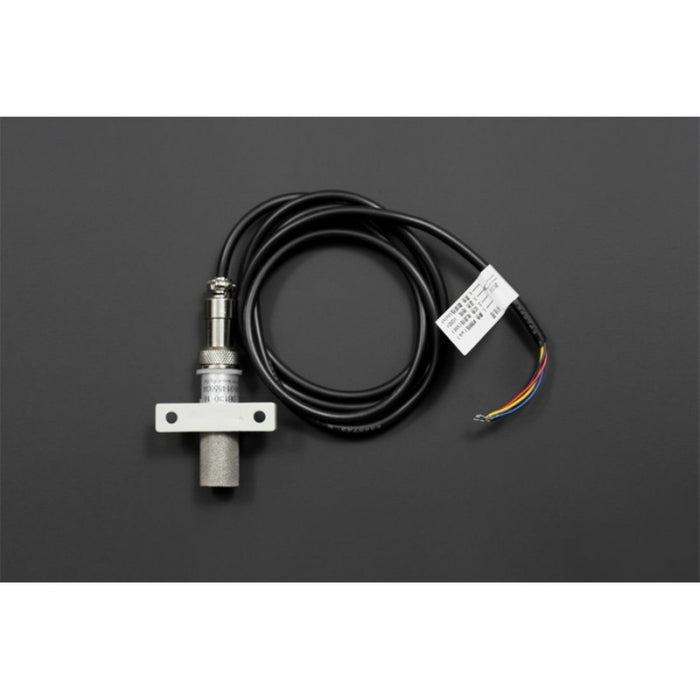

This is an anti-rust, robust and precise SHT10 sensor, which can master enterprise-class and industrial-level applications. It can be applied in various fields: telepoint base stations, electronic control cabinet, production site, storehouse, machine rooms, greenhouses, animal farming, medicine stock and etc. Metallic package enables it to deal with the very dusty or other severe circumstance. the wall-hanging style makes it easy to install.
The metallic mesh covering the sensor adopts method of infiltering copper during sintering to enhance the temperature resistance, pressure resistance, and wearing resistance of it. The 2-wire serial interface and internal voltage regulation allows for easy and fast system integration. Moreover, it's Arduino compatible and we will supply the library for it. Caution: the line to the ground is blue instead of black.
Connection
SPECIFICATIONS
- Power consumption: 0.15mW(Average)
- Interface Type: Two-Wire interface(Digital)
- Red wire - 5v
- Blue wire - GND
- Yellow wire - Clock wire
- Black wire - Data wire
- Humidity Ranger:0-100%RH
- Temperature ranger: -10-80°C
- Humidity accuracy:±5.0%RH
- Temperature accuracy:±0.5°C
- Size: 49mm x 14mm (1.93" x 0.55")
- Cable Length: 90 cm
DOCUMENTS
SHIPPING LIST
- Digital Temperature and humidity sensor x1
Jargon buster
Plain-language definitions for the technical terms used above.
- 2-wire serial interface
- A 2-wire serial interface sends data over just a couple of signal wires, typically a clock line and a data line. It lets a device be controlled with only a few microcontroller pins, leaving the rest free for other parts; common examples include I2C and similar clock-plus-data protocols.
- GND
- GND is the ground or reference connection (0 V) for a circuit. When connecting two devices together, their grounds must be joined so both agree on what counts as a low or high signal.
