Button Pad 2x2 - Breakout PCB
All Products
Breakouts
Buttons & Switches
New Arrivals
Arduino Breadboards and Prototyping Accessories
Physical Buttons & Switches
$14.65
|
Out of stock
A simple breakout board for 2×2 button pads with integrated LEDs. Each LED and button is brought out to side connectors, making wiring straightforward. The b...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

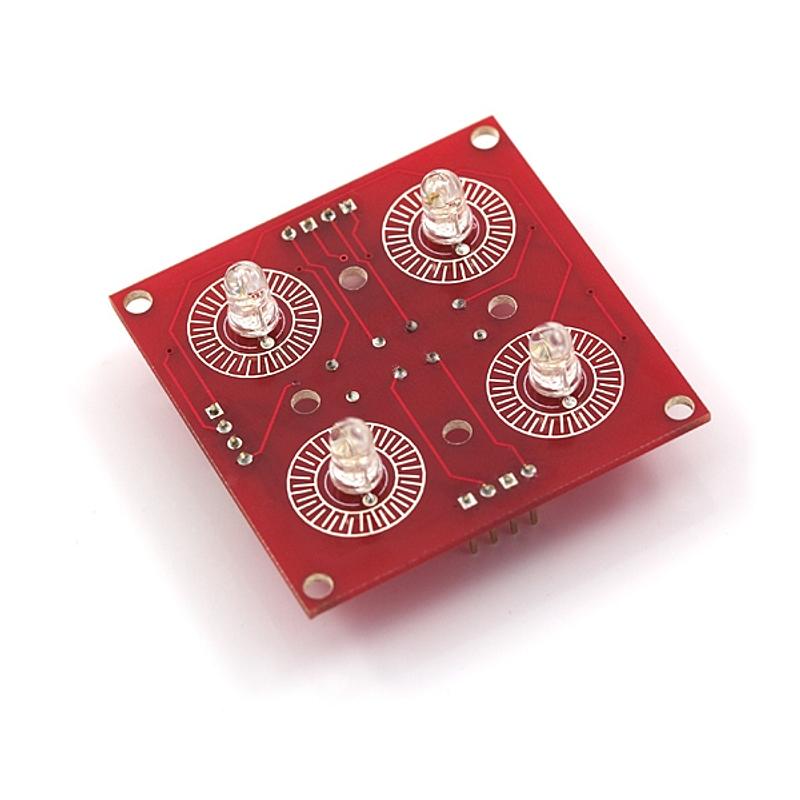

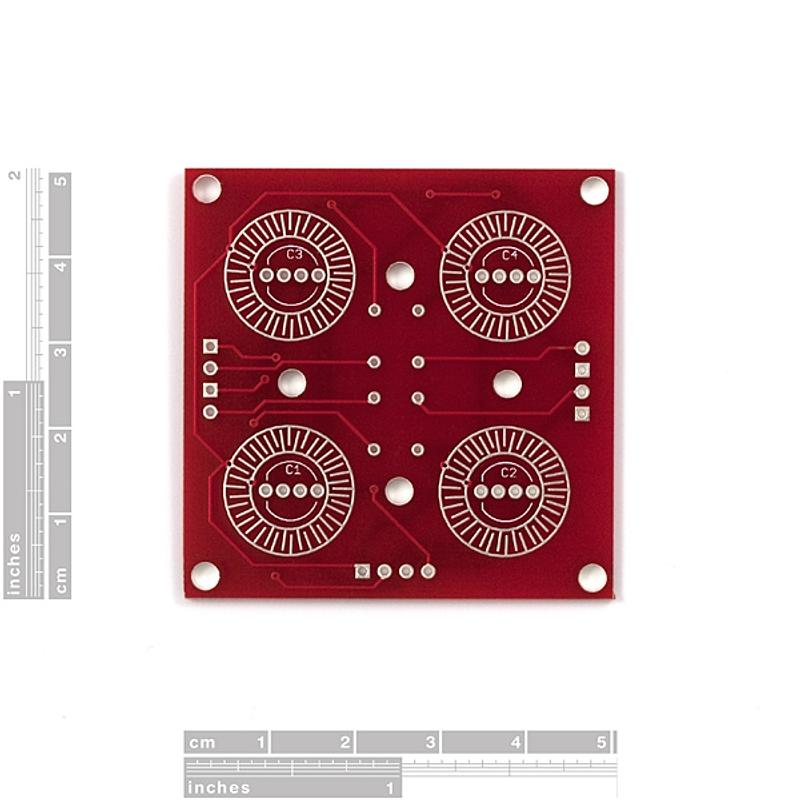

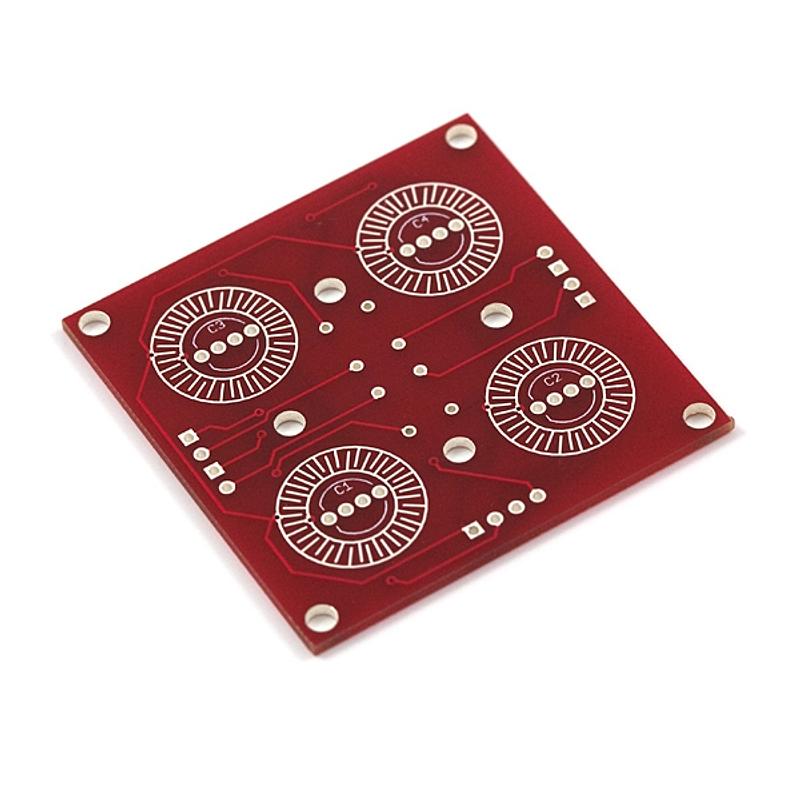

A simple breakout board for 2×2 button pads with integrated LEDs. Each LED and button is brought out to side connectors, making wiring straightforward. The board also includes footprints for 1N4148 through-hole diodes to isolate switches for easier matrix decoding.
Key Features
- 2×2 Button Layout – Breaks out each LED and button to individual side connectors
- Diode Footprints – Onboard pads for 1N4148 diodes to isolate switches in a matrix configuration

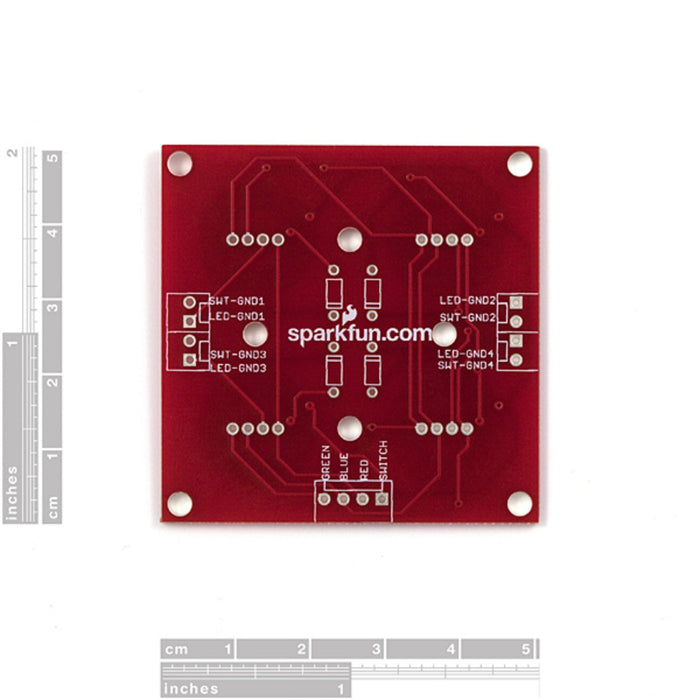

- Back-Side Connectors – Soldered to the rear of the PCB to keep the button side clear
Ideal For
- Custom button pad interfaces and control panels
- LED-backlit keypad projects
- Button matrix prototyping

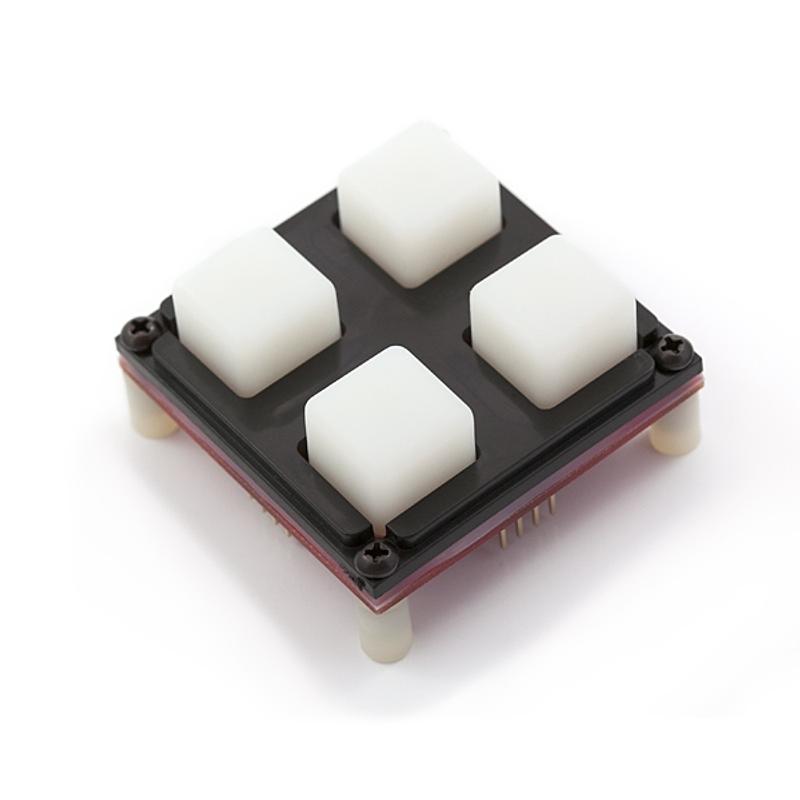

Tip: Trim the connector leads on the button side as short as possible to reduce pad deflection.
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- 1N4148
- A common small-signal switching diode used for low-current electronic signals. It is a good choice for fast signal switching or simple protection tasks, but not for carrying large power currents.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
