Battery Holder - 18650 (PTH)
This is a PCB mount clip to hold a 18650 Lithium Ion Cell battery. Each battery holder is sold in single units, you’ll need two for each battery. These work ...

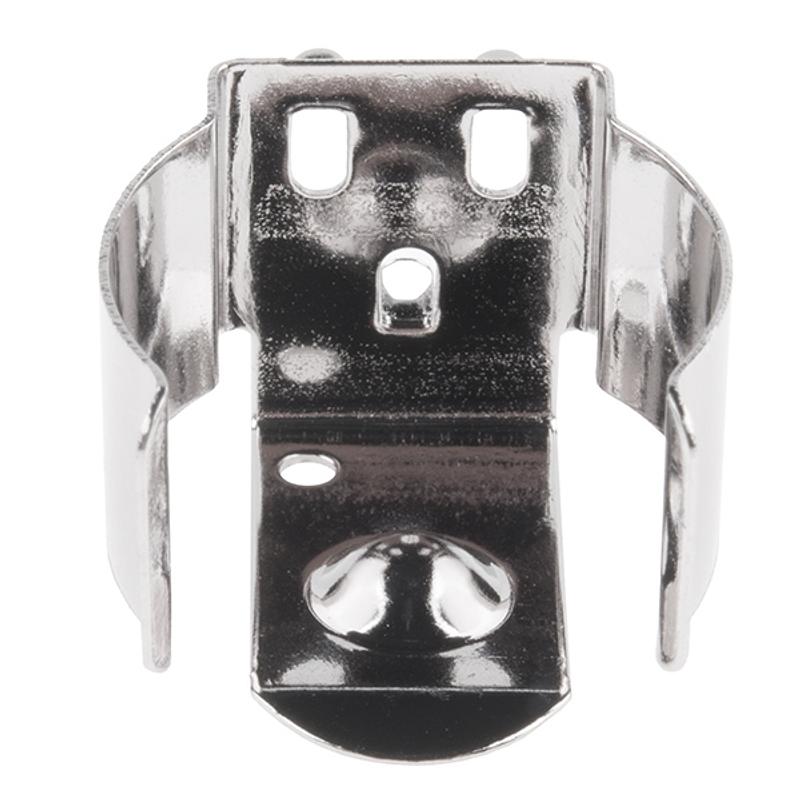

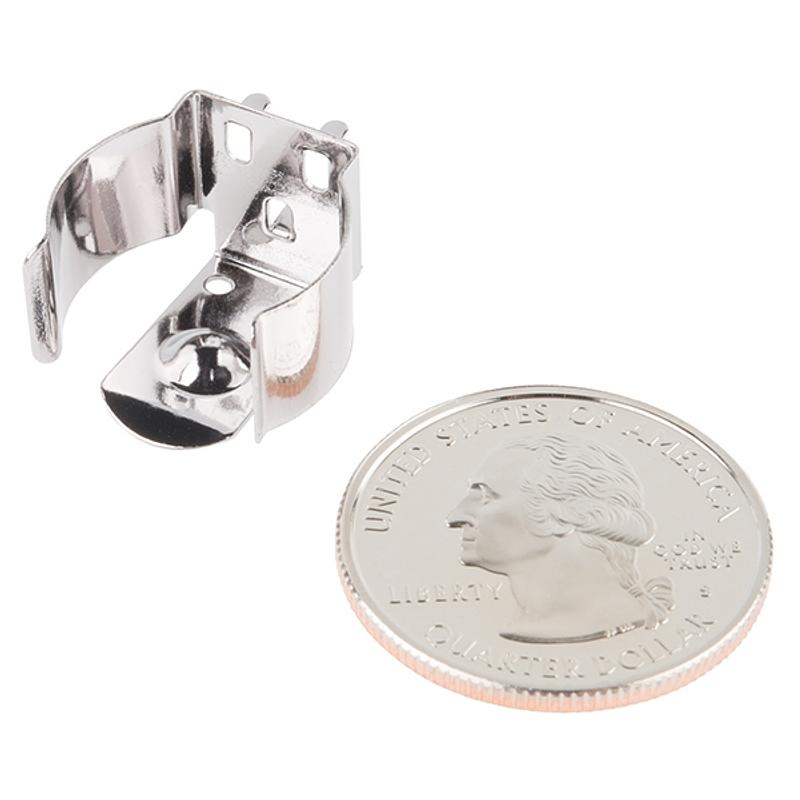

This is a PCB mount clip to hold a 18650 Lithium Ion Cell battery. Each battery holder is sold in single units, you’ll need two for each battery. These work great for larger, high capacity applications where a drop-in rechargable cell is needed. These little guys are low cost and easy to use!
Note: This part can be found in the Electromechanical Eagle library under ‘Battery18650’.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
Find this product in
Power & Batteries
Battery Holder 18650 PTH Datasheet
Datasheet · 235.6 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 562.2 KB · Click any page to view full size
