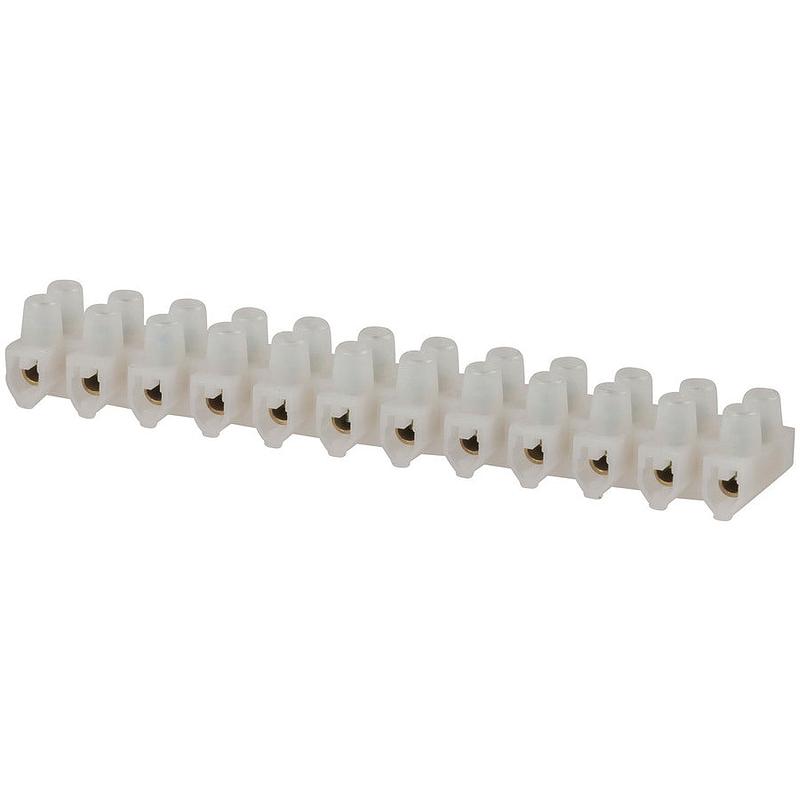

6 Amp 12-way Screw Terminal Strip
$1.15
|
Only 5 left
A 12-way screw terminal strip rated at 6A and 250VAC. Can be divided into smaller sections with a sharp knife, making it easy to create custom-sized terminal...
Get notified when back in stock
Estimated Delivery
Arrives
Order within 2h 25m for same-day dispatch
Disclaimer
Secure checkout
A 12-way screw terminal strip rated at 6A and 250VAC. Can be divided into smaller sections with a sharp knife, making it easy to create custom-sized terminal blocks for any project. Each terminal block includes a mounting hole on a fixed pitch.
Key Features
- 12-Way Configuration – Divisible into smaller sections as needed
- 6A / 250VAC Rating – Suitable for low-power mains and DC wiring
- Sturdy Screw Retention – Secure wire connections that resist vibration
- Nylon Body – Electrically insulating and heat resistant
- Mounting Holes – Fixed-pitch holes for panel mounting
Specifications
- Current Rating – 6A
- Voltage Rating – 250VAC
- Number of Ways – 12
- Cable Entry Diameter – 3.3mm
- Terminal Spacing – 10mm pitch
- Strip Length – 114.5mm
- Body Material – Nylon
- Operating Temperature – −35°C to 110°C
- Part Number – HM-3194
- Warranty – 3 months
Ideal For
- Joining and distributing wires in electronics enclosures
- Panel wiring and prototyping
- Custom terminal blocks cut to size
Package Contents
- 1× 6A 12-way screw terminal strip
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- screw terminal
- A connector that clamps bare wire using a small screw, making it easier to attach and remove wires without soldering. Screw terminals are useful for power wiring or thicker wires that are not suited to small plug-in connectors.
- Terminal block
- A terminal block is a connector that joins wires together in a neat, removable, or serviceable way, usually clamping each wire under a screw or spring instead of soldering. It makes it easier to connect, change, or service wiring without permanent joints.
