SparkFun TRRS 3.5mm Jack Breakout
TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards. TRRS stands for “Tip, Ring, Ring, Sleeve,” wh...
Get notified when back in stock

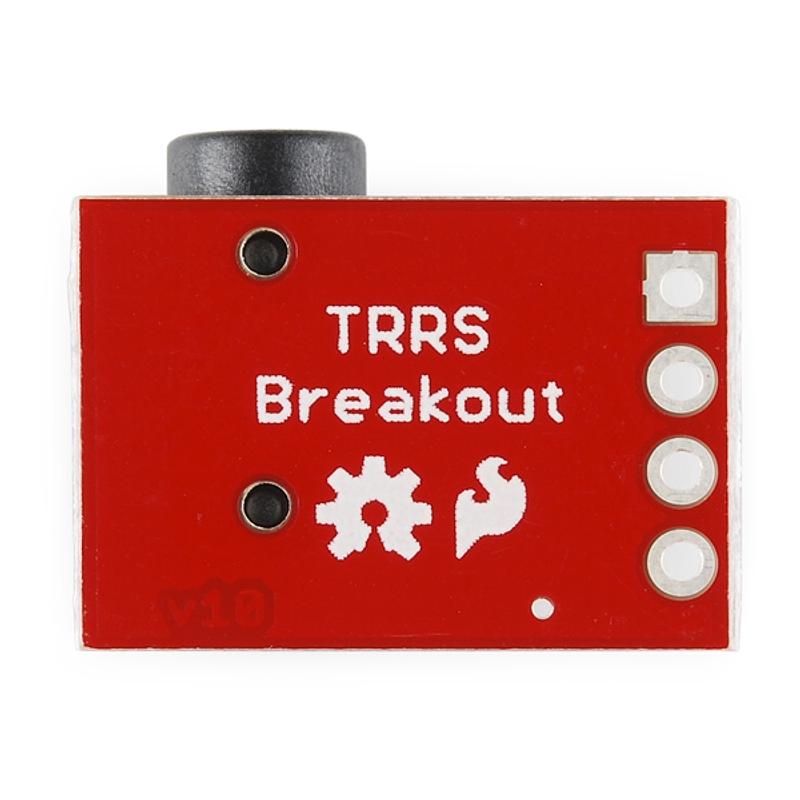

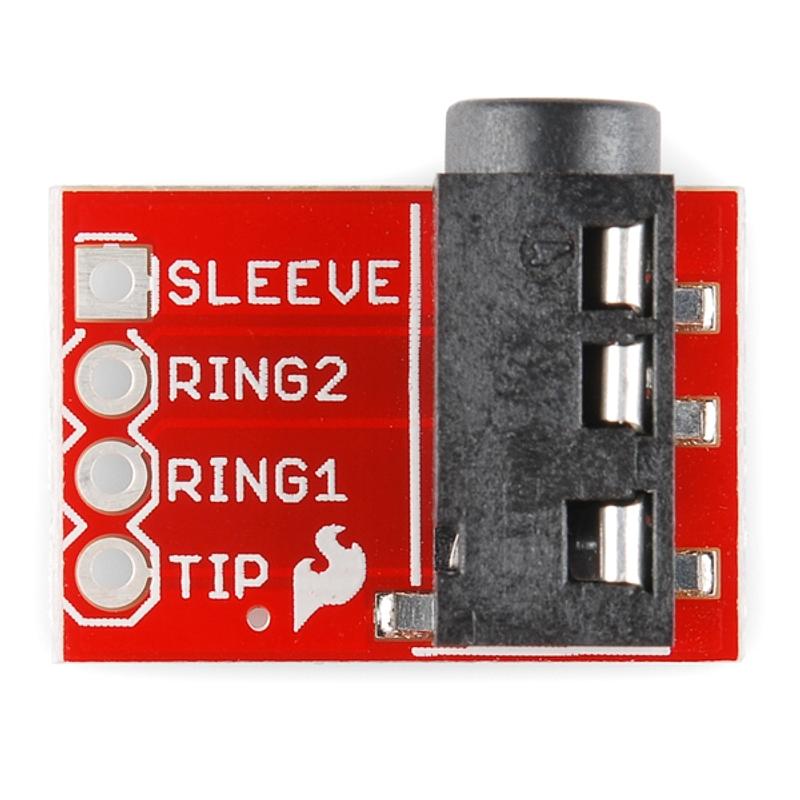

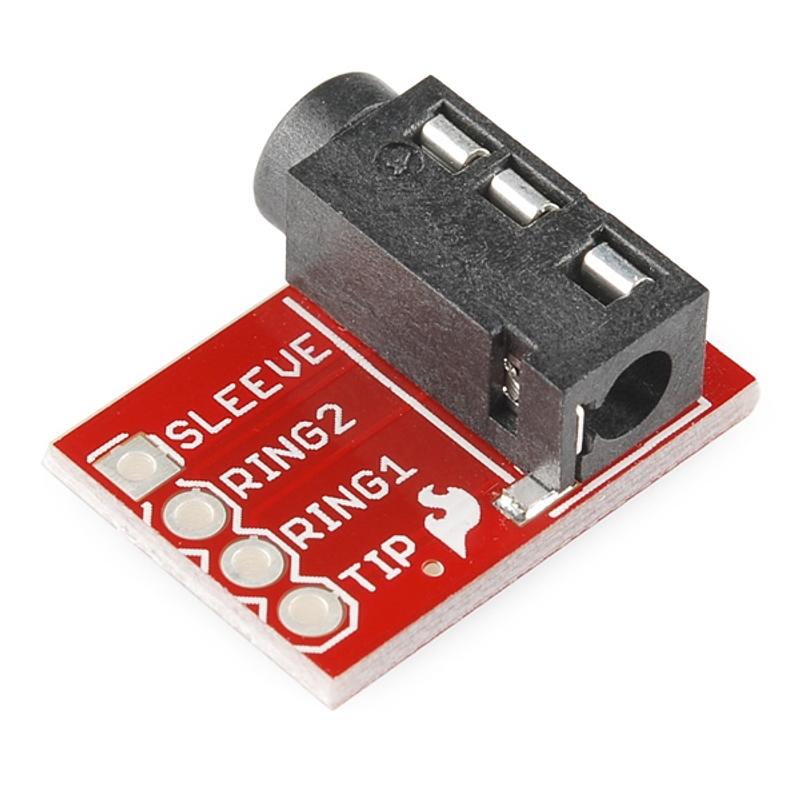

TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards. TRRS stands for “Tip, Ring, Ring, Sleeve,” which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground. Some devices use the extra conductor for a microphone (like hands-free headsets) or to carry a video signal (like in some MP3/MP4 players). This breakout board makes it easy to add a TRRS jack to your prototype or project by breaking out each conductor to a standard 0.1" spaced header.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
Find this product in
Audio & Video
Brands
TRRS Breakout Schematic
Schematic · 28.9 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 604.5 KB · Click any page to view full size
Resources & Downloads
Guides, code examples, and more
Source Code
Open-source libraries, firmware & example projects for this product
SparkFun TRRS 3.5mm Jack Breakout
1e6fa36
about 11 years ago
· 1 commits
- Hardware Adding hardware files, updating README about 11 years ago
- Production Adding hardware files, updating README about 11 years ago
- .gitattributes Adding hardware files, updating README about 11 years ago
- .gitignore Adding hardware files, updating README about 11 years ago
- LICENSE.md Adding hardware files, updating README about 11 years ago
- README.md Adding hardware files, updating README about 11 years ago
