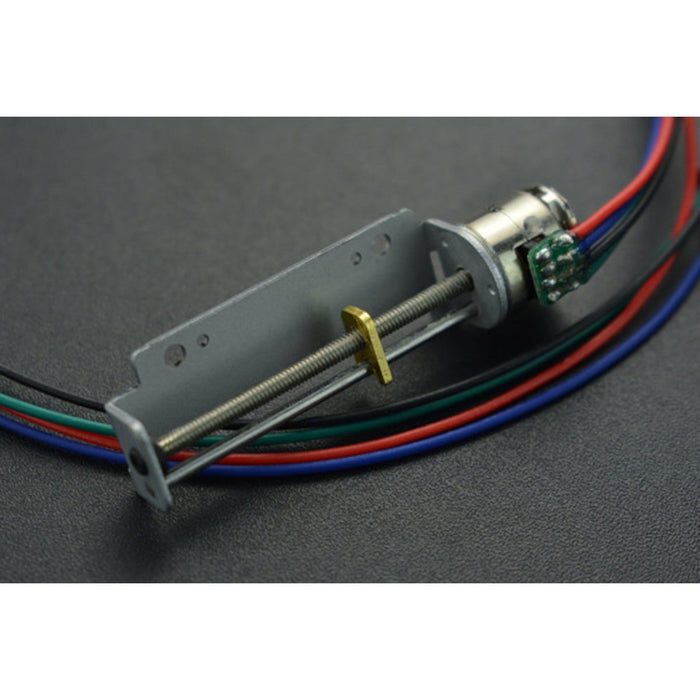

18° Micro Stepper Motor for Arduino
A compact 10 mm micro stepper motor with 18° per step, designed for direct connection to microcontrollers like Arduino and ESP32 without requiring a dedicate...
Get notified when back in stock
A compact 10 mm micro stepper motor with 18° per step, designed for direct connection to microcontrollers like Arduino and ESP32 without requiring a dedicated driver board. The 2-phase 4-wire bipolar configuration makes it straightforward to integrate into small-scale automation projects.
The motor features a metal slider on the slide rod, making it well-suited for linear motion applications such as automatic door locks, camera mechanisms, and DIY smart home devices.
Key Features
- 18° Step Angle – 20 steps per full revolution for precise positioning
- No Driver Board Required – Connect directly to Arduino, ESP32, or other microcontrollers
- 2-Phase 4-Wire Bipolar – Simple wiring with 2-2 phase excitation
- Metal Slider – Built-in linear motion mechanism on the slide rod
- Wide Voltage Range – Operates at DC 3.3–5 V
- Compact Size – 10 mm form factor for space-constrained projects
Specifications
- Driving Voltage: DC 3.3–5 V
- Coil Resistance: 20 Ω ±10%
- Phase: 2
- Step Angle: 18°/step
- Excitation: 2-2 phase
- Driving Method: Bipolar drive
- Max Auto-Start Frequency: 1500 PPS min
- Insulation Grade: E Class
- Withstand Voltage: 100 V AC, 1 s
- Insulation Resistance: 1.0 MΩ (DC 100 V)
- Operating Temperature: -10°C to +60°C
Ideal For
- Automatic door locks and latches
- Camera sliders and positioning systems
- DIY smart home automation
- Small robotics and linear actuator projects
Package Contents
- 1× 18° micro stepper motor
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- ESP32
- ESP32 is a family of low-cost microcontroller chips and modules from Espressif with built-in WiFi and Bluetooth. They support programmable firmware and over-the-air updates, and are commonly programmed with toolchains such as the Arduino core and ESP-IDF.
