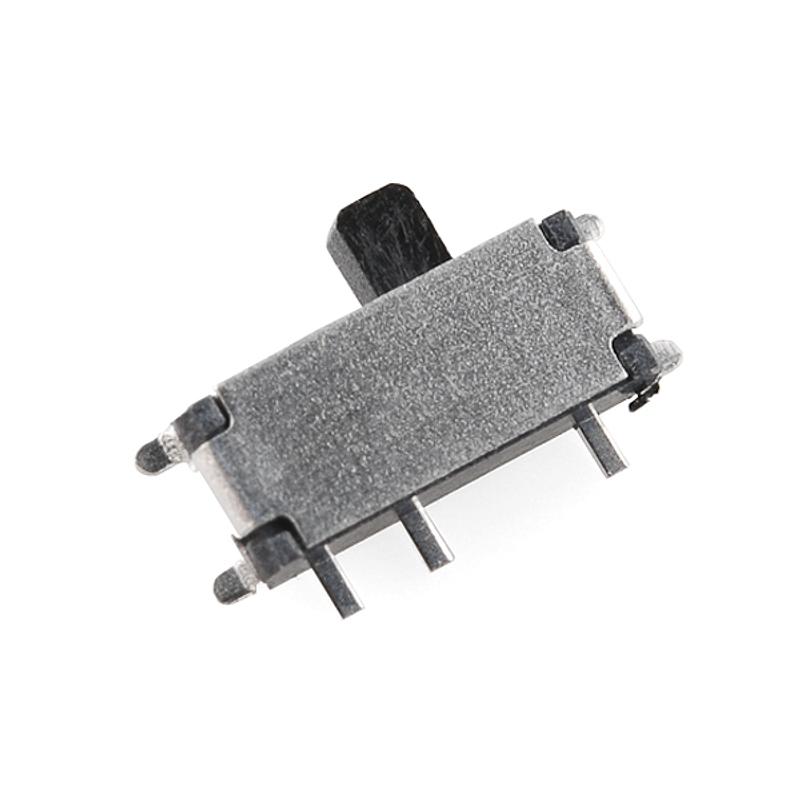

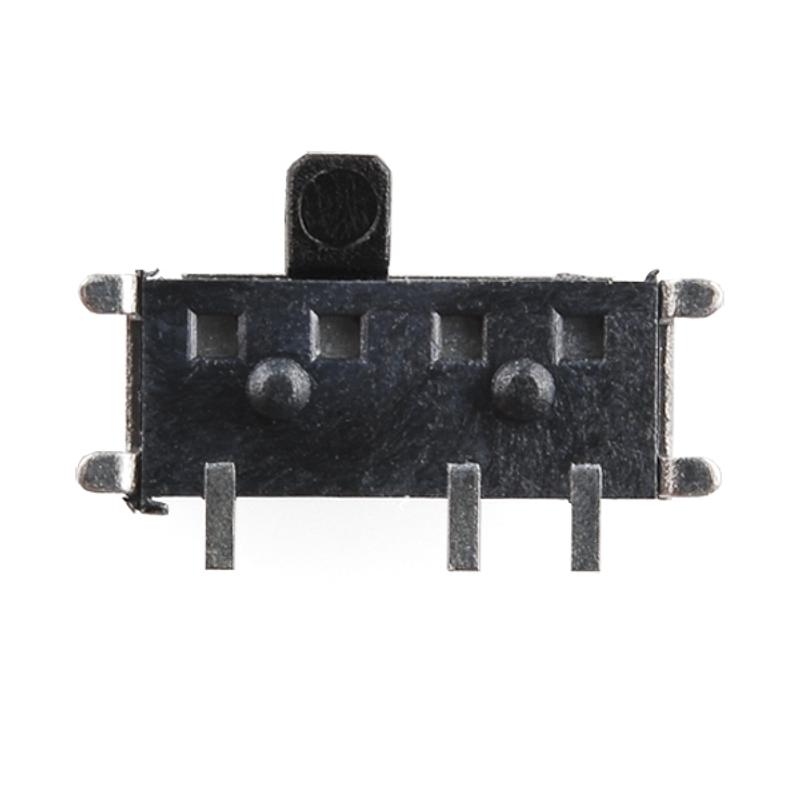

Surface Mount Right Angle Switch
A simple SMD slide switch. Perfect for when you need access to a setting or a power switch from the edge of a PCB buried deep within a project. Features:...
Get notified when back in stock
A simple SMD slide switch. Perfect for when you need access to a setting or a power switch from the edge of a PCB buried deep within a project.
Features:
- 4V - 300mA
- 70mOhm resistance
- 10,000 cycle life
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
