$63.91
|
In stock at supplier
This is a simple, but very powerful stepper motor with a 4-wire cable attached. This is a Bipolar Motor. Features: Step Angle (degrees) :1.8 2 Phase Rat...
Estimated Delivery
Arrives
Disclaimer
Secure checkout

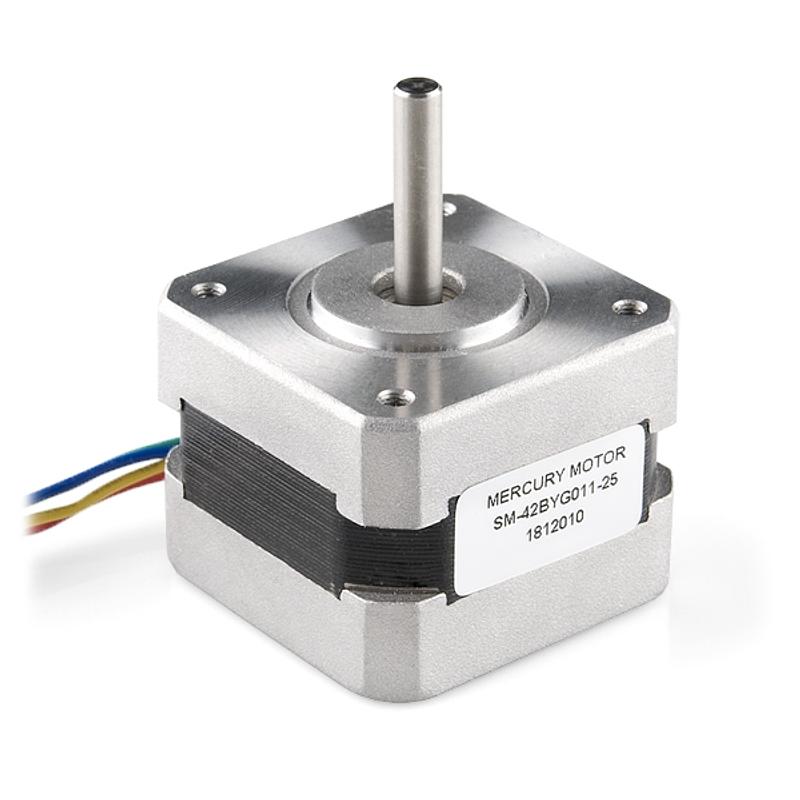

This is a simple, but very powerful stepper motor with a 4-wire cable attached.
This is a Bipolar Motor.
Features:
- Step Angle (degrees) :1.8
- 2 Phase
- Rated Voltage : 12V
- Rated Current : 0.33A
- Holding Torque : 2.3kg*cm
- 5mm Diameter Drive Shaft
- Winding resistance: 32.6 Ω
- Winding inductance: 48 mH
- Max flux linkage: 1.8 Vs
- Maximum Detent Torque: 0.016 N.M
- Total inertia (kg.m.m): 3.5 Kg.m.m
- Total friction (kg.m/s): 4 Kg.m/s

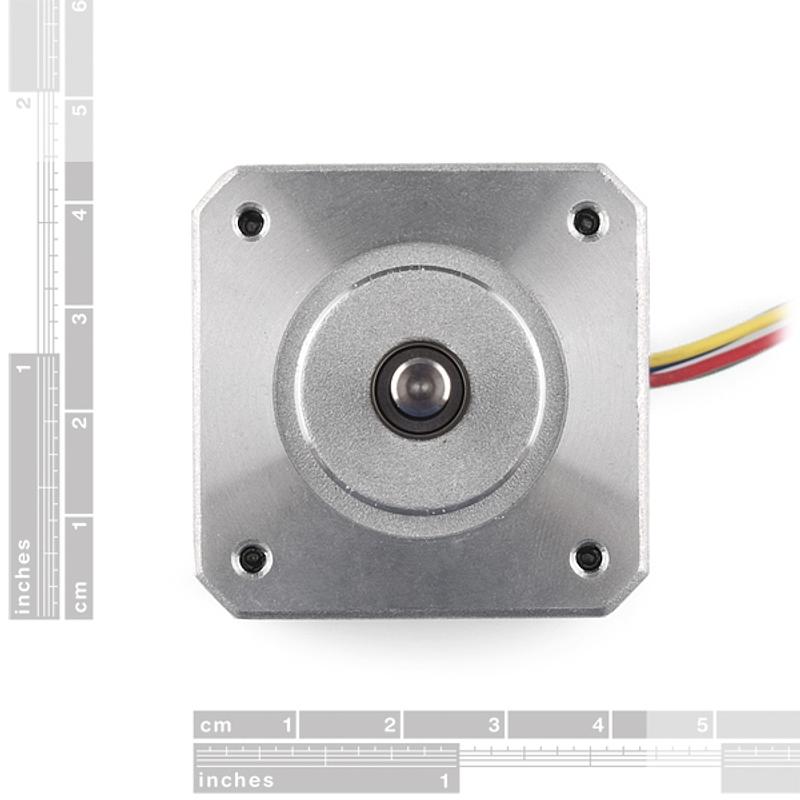

- NEMA 17 Mounting Hole Pattern (31mm)
- Motor Width: 42mm (1.67”)
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- Torque
- A twisting force that causes something to rotate, usually measured in newton-metres or kilogram-centimetres. It matters when choosing motors, servos, gears, and tools because higher torque is needed to lift heavier loads, turn larger wheels, or move mechanisms without stalling.
