Stackable Header - 8 Pin
All Products
Headers & Connectors
New Arrivals
Arduino
Arduino Breadboards and Prototyping Accessories
Brands and Manufacturers
DFRobot
Components
Prototyping & Wiring
$4.75
|
In stock
An 8-pin female header with extra-long legs, designed for stacking Arduino shields. The extended pins pass through to the board below, allowing multiple shie...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

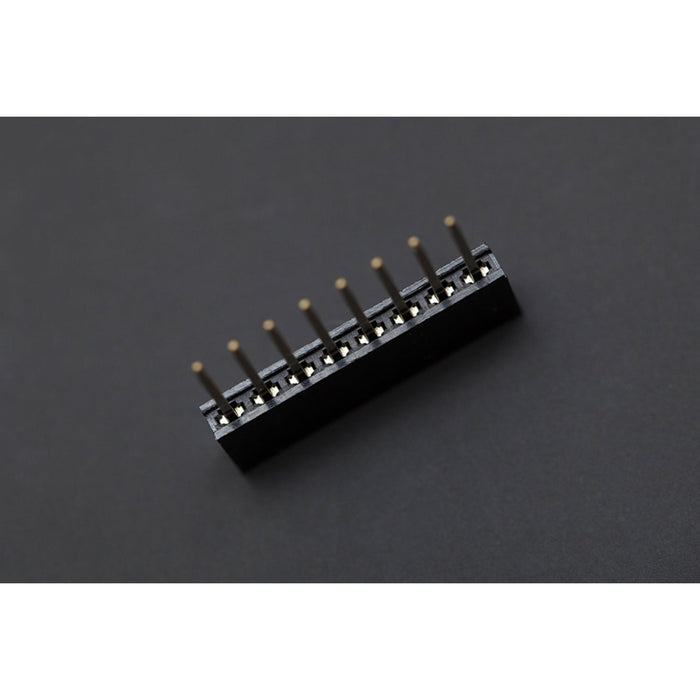

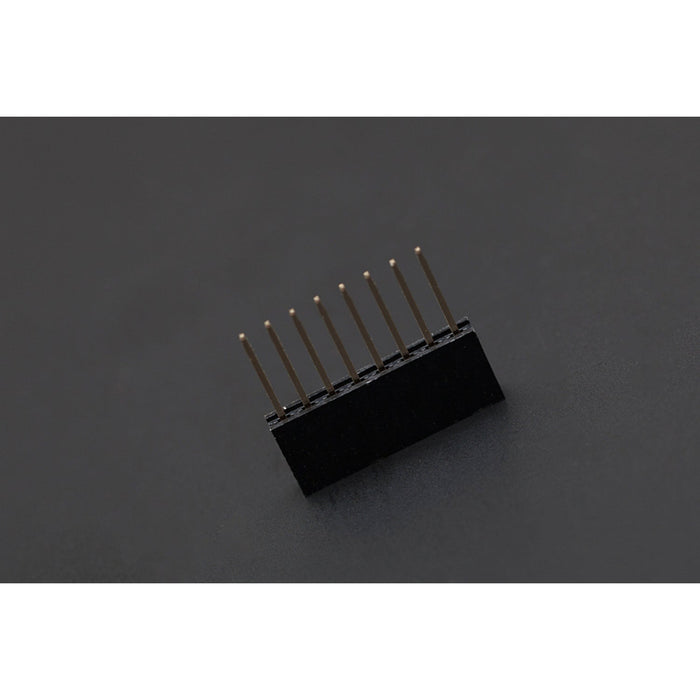

An 8-pin female header with extra-long legs, designed for stacking Arduino shields. The extended pins pass through to the board below, allowing multiple shields to be stacked on a single Arduino. Pins are spaced at standard 0.1″ (2.54mm) pitch.
Specifications
- Pin Count – 8 pins, single row
- Pin Pitch – 0.1″ (2.54mm)
- Dimensions – 20.7 × 20.8 × 2.5mm
- Type – Female stackable header with extended legs
Ideal For
- Stacking Arduino shields
- PCB prototyping and custom board designs
- Any project requiring pass-through female headers
Package Contents
- 10× 8-Pin Single Row Female Stackable Headers
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
