SparkFun SOIC to DIP Adapter - 28-Pin
The SparkFun SOIC to DIP Adapter converts 28-pin SOIC surface-mount packages to standard 0.1" through-hole headers, making it easy to prototype with SMD ICs ...
Get notified when back in stock

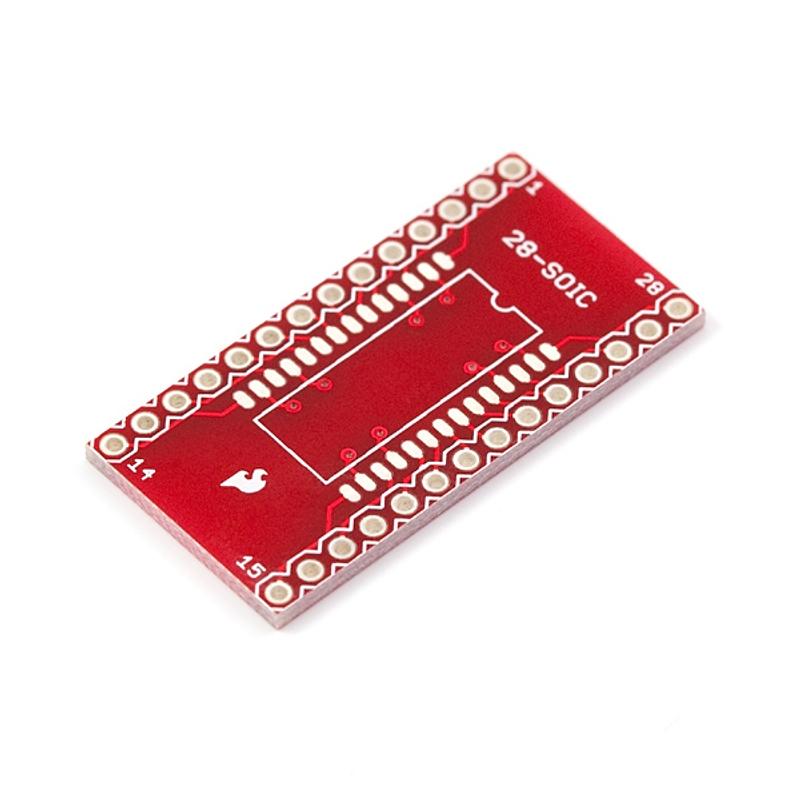

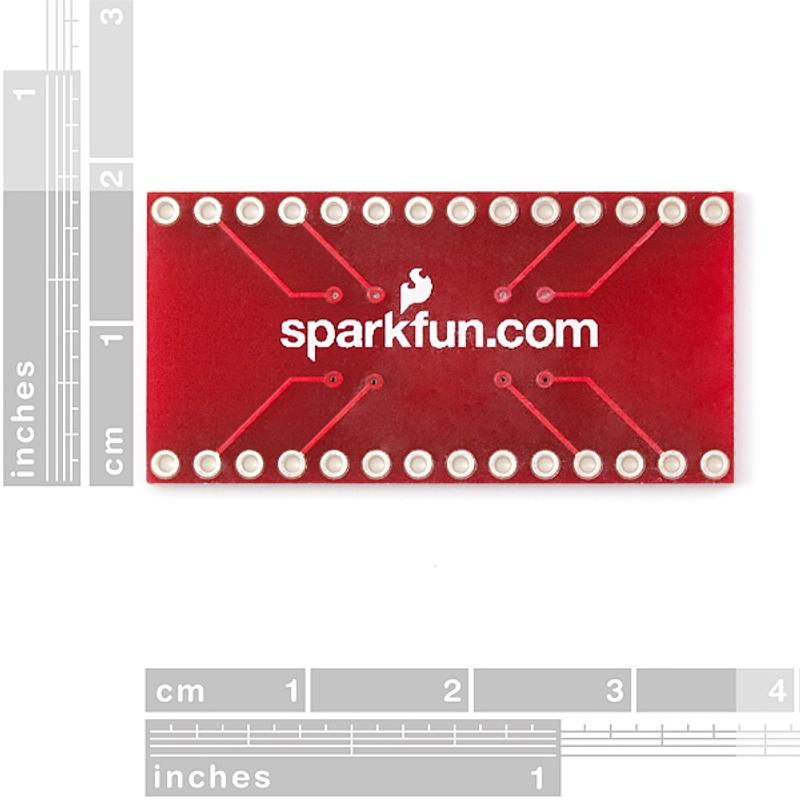

The SparkFun SOIC to DIP Adapter converts 28-pin SOIC surface-mount packages to standard 0.1" through-hole headers, making it easy to prototype with SMD ICs on breadboards or in DIP sockets.
Key Features
- 28-Pin SOIC Layout – Pad layout fits all standard 28-pin SOIC devices
- 0.6" Pin Spacing – Standard wide-body (600 mil) DIP footprint, fits directly into wide DIP sockets
- 0.1" Header Compatible – Break-away headers solder directly to the board for breadboard use
Ideal For
- Prototyping with wide-body SOIC ICs (memories, drivers, 74-series, etc.)
- Adapting SMD components for breadboard use
- DIP socket replacement for SOIC packages
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
Find this product in
Brands
Prototyping & Wiring
SparkFun SOIC to DIP Adapter 28-Pin Schematic
Schematic · 18.1 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 491.8 KB · Click any page to view full size
