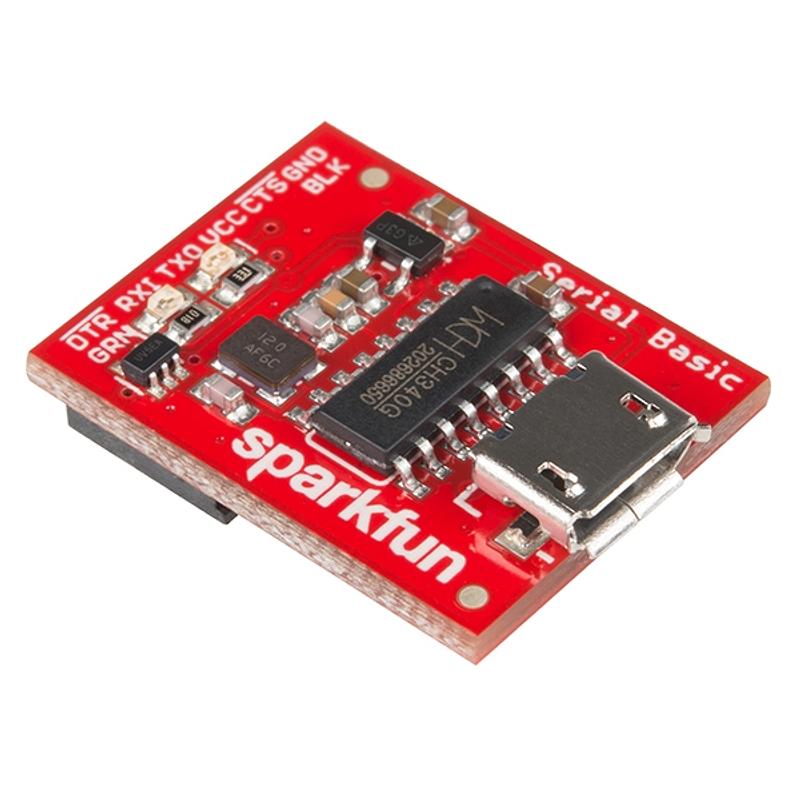

SparkFun Serial Basic Breakout - CH340G

Jargon buster

Plain-language definitions for the technical terms used above.

breakout

A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.

CTS

CTS stands for Clear To Send, a serial flow-control signal that tells the other device it may transmit. It matters for reliable high-speed serial communication where buffers could otherwise overflow.

GND

GND is the ground or reference connection (0 V) for a circuit. When connecting two devices together, their grounds must be joined so both agree on what counts as a low or high signal.

GPS

The US satellite navigation system used by GNSS receivers to calculate position and time. Support for GPS is important because it is widely available and often used together with other constellations for more reliable positioning.

RX

RX means receive, usually showing data being received by the board. An RX indicator LED can help with troubleshooting USB or serial communication.

TX

TX means transmit, usually showing data being sent from the board. A TX indicator LED can help you see when the board is communicating or uploading code.

VCC

VCC is the positive power-supply connection on a chip or module. Connecting it to the correct supply voltage is needed for the part to power on and helps avoid damaging the electronics.
