NEO-D9S GNSS Correction Data Receiver with Qwiic
· MPN: GPS-19390
This NEO-D9S breakout is an L-Band satellite correction data receiver designed to feed correction streams to a compatible multi-band, high-precision GNSS rec...
This NEO-D9S breakout is an L-Band satellite correction data receiver designed to feed correction streams to a compatible multi-band, high-precision GNSS receiver such as the u-blox ZED-F9P. With a clear view of the sky, especially to the south, it can decode L-Band correction broadcasts and help a suitable GNSS system achieve centimetre-level positioning without a separate RTK or NTRIP correction source.

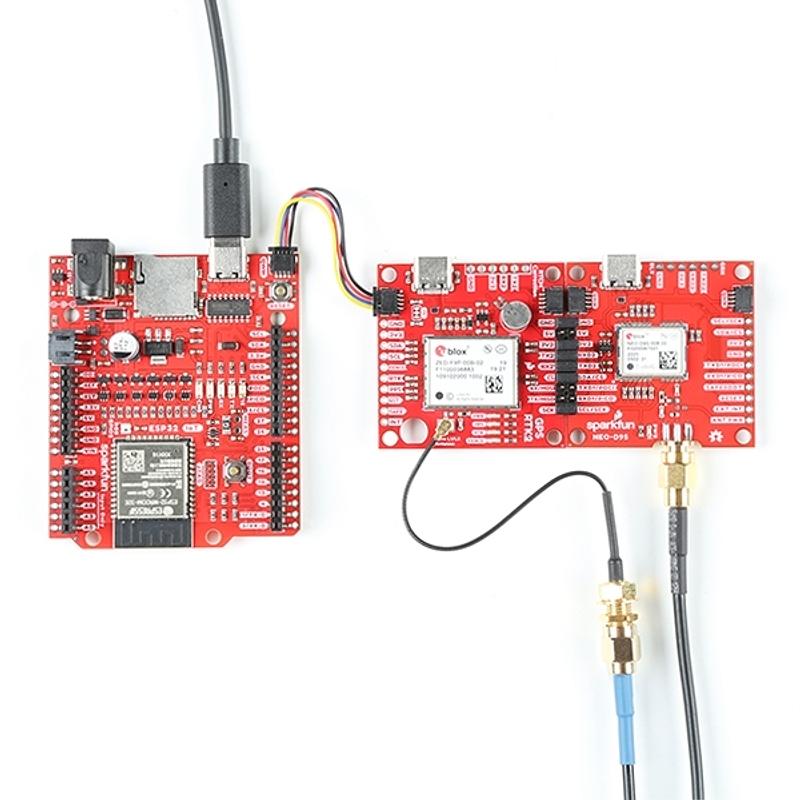

The board includes USB-C for configuration from a computer using u-blox u-center, plus two Qwiic connectors for quick I2C connection to development boards. It is also supported by the SparkFun u-blox GNSS Arduino Library, with example code available for the NEO-D9S and for using the NEO-D9S with a ZED-F9P.
An integrated SMA connector provides a secure connection to a suitable L-Band antenna, and power, I2C, UART1, UART2 and SPI are also broken out to 0.1" spaced PTH pins. Please note that this product requires a suitable L-Band antenna.
From 10 March 2025, the u-blox PointPerfect L-Band correction service for this receiver is currently only available in the USA's 48 contiguous states, with the EU L-Band service suspended from that date.
Features:
- USB: 1x USB Type C Connector
- Qwiic: 2x Qwiic Connectors
- Antenna connector: Integrated SMA connector for use with L-Band antenna of your choice
- Reception: Concurrent reception with L-Band Satellite
- Power LED: Power LED
- USB Shield jumper: USB Shield
- Power jumper: Power
- 3v3 jumper: 3v3 (for UART2 Port)
- I2C Pull-Up Resistors jumper: I2C Pull-Up Resistors
- SPI jumper: SPI
- Protocols: Supports UBX protocols over UART or I2C interfaces
Specifications:
- Default I2C Address: 0x43
- Receives L-Band: 1525 MHz to 1559 MHz
- Time to First Frame: <10s @ 2400bps
- User Data Rates: 600, 1200, 2400, 4800 baud
- Dynamics: +/- 2g acceleration for all data rates (600 bit/s, 1200 bit/s, 2400 bit/s, 4800 bit/s)
- Velocity: Up to and including 300 km/h
- Voltage: 5V or 3.3V but all logic is 3.3V
- Current Consumption (Acquisition & Tracking) Peak: 130mA
- Current Consumption (Acquisition & Tracking) Average: 35mA
- Board Dimensions: 1.70" x 1.70" (43.2mm x 43.2mm)
The Qwiic connectors use the common 1mm pitch, 4-pin JST format, making this board easy to add to Qwiic-based prototypes without soldering.
Jargon buster
Plain-language definitions for the technical terms used above.
- baud
- Baud is the signalling rate of a serial connection, often used as the speed setting for UART communication. Matching the baud rate matters because both connected devices must use the same setting for readable data.
- breakout
- A breakout is a small circuit board that makes a tiny or hard-to-solder component easier to connect to with standard pins. It matters because this OLED module can be wired into a microcontroller project without needing to solder directly to the display’s fine contacts.
- GNSS
- GNSS stands for Global Navigation Satellite System, covering positioning systems such as GPS and similar satellite networks. It matters here because high-precision GNSS modules can output lots of serial position data that this product can send wirelessly to a computer or phone.
- I2C
- I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
- I2C address
- An I2C address is the number a device uses so a microcontroller can tell it apart from other devices on the same I2C bus. It matters because two devices with the same fixed address may conflict if used together.
- LED
- A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
- PTH
- Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.
- Qwiic
- Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.
- RTK
- Real-Time Kinematic positioning is a GNSS technique that uses correction data from a base station to greatly improve location accuracy. It matters if you need centimetre-level positioning for robotics, mapping, surveying, or tracking rather than ordinary metre-level GPS accuracy.
- Shield
- An add-on board that plugs into a main controller board to give it extra features such as sensing, motor control or communication. Knowing a product supports shields helps you judge whether it can connect neatly into an existing maker-board setup.
- SMA
- A threaded coaxial connector commonly used for antennas. It matters because you need antennas with matching SMA connectors, or suitable adapters, for the LTE and GNSS antenna ports.
- SPI
- A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.
- UART
- UART is a simple serial connection that sends data over separate transmit and receive wires, often labelled TX and RX. It matters because this module is designed to replace a wired UART cable with a wireless link while keeping the same serial data format.
- USB-C
- A modern reversible USB connector used for power and data connections. On this product it matters because it can connect directly to a computer as well as to a microcontroller project.
- ZED-F9P
- A u-blox GNSS receiver module designed for high-precision positioning, including RTK rover and base-station use. The exact module matters because it determines the supported satellite bands, update rates, correction formats and achievable accuracy.
