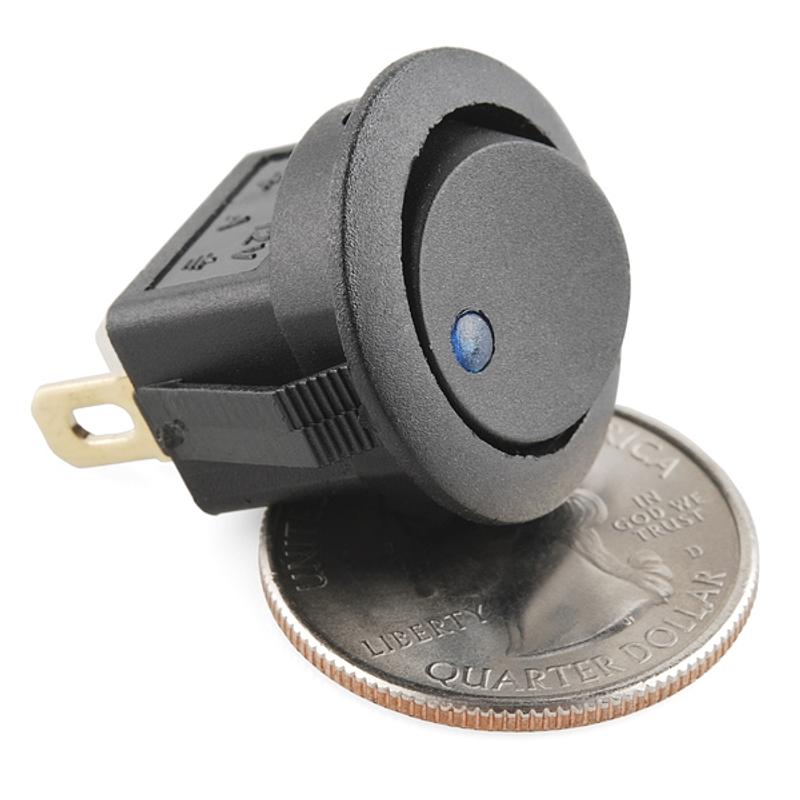

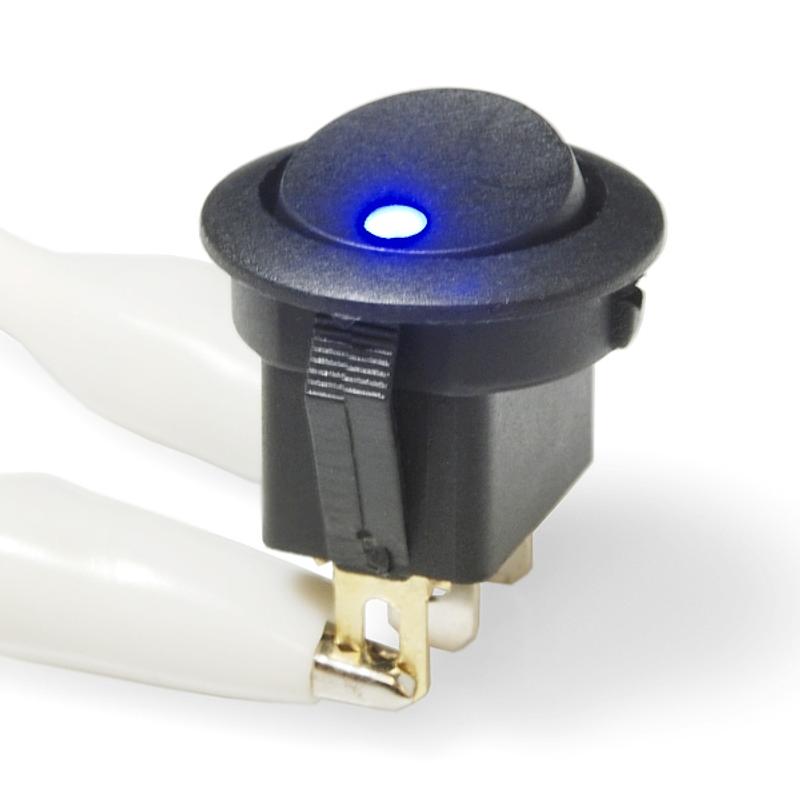

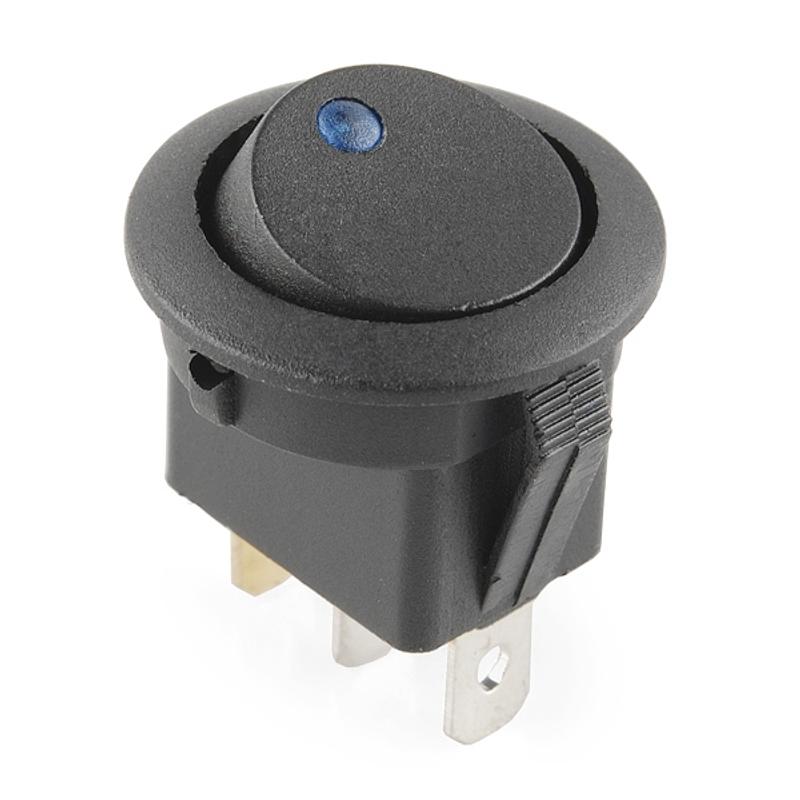

Rocker Switch - Round w/ Blue LED
These panel-mounting rocker switches have built-in indicator lights to let you know when your switch is engaged. They mount into a 20.2mm diameter hole and a...
Get notified when back in stock

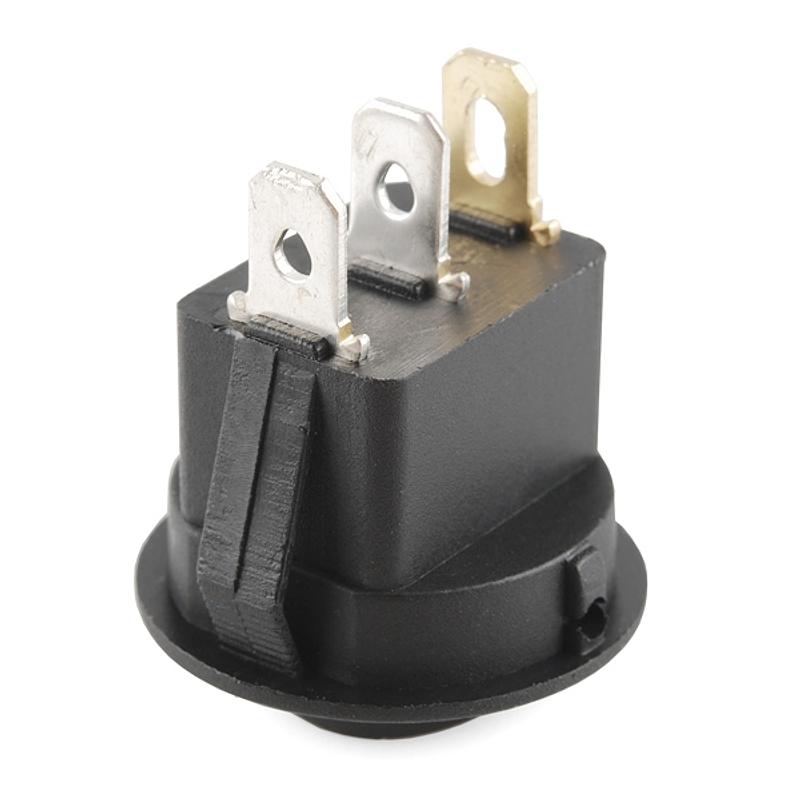

These panel-mounting rocker switches have built-in indicator lights to let you know when your switch is engaged. They mount into a 20.2mm diameter hole and are rated up to 16A @ 12v. These simple SPST on-off switches have three terminals, the two that you would normally see plus a ground tab for the blue LED lamp inside. Although these are rated for 12v, the LED works with as little as 5V.
Features:
- Blue LED Indicator
- SPST on-off
- Rated up to 16A @ 12v
- 20.2mm Diameter Mounting Hole
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
