$1.20
|
In stock at supplier

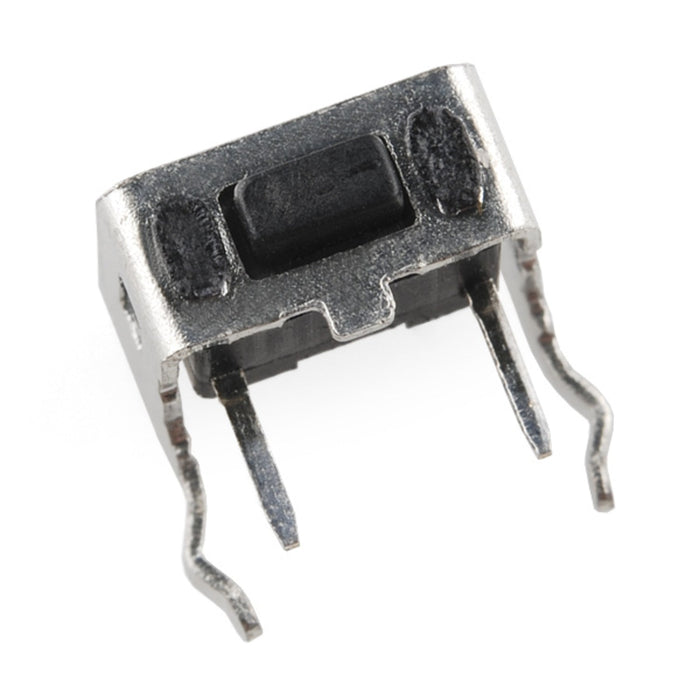

A right-angle tactile switch in a sturdy through-hole package with a satisfying click. Mount it on the edge of your PCB for easy side-access button input. S...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

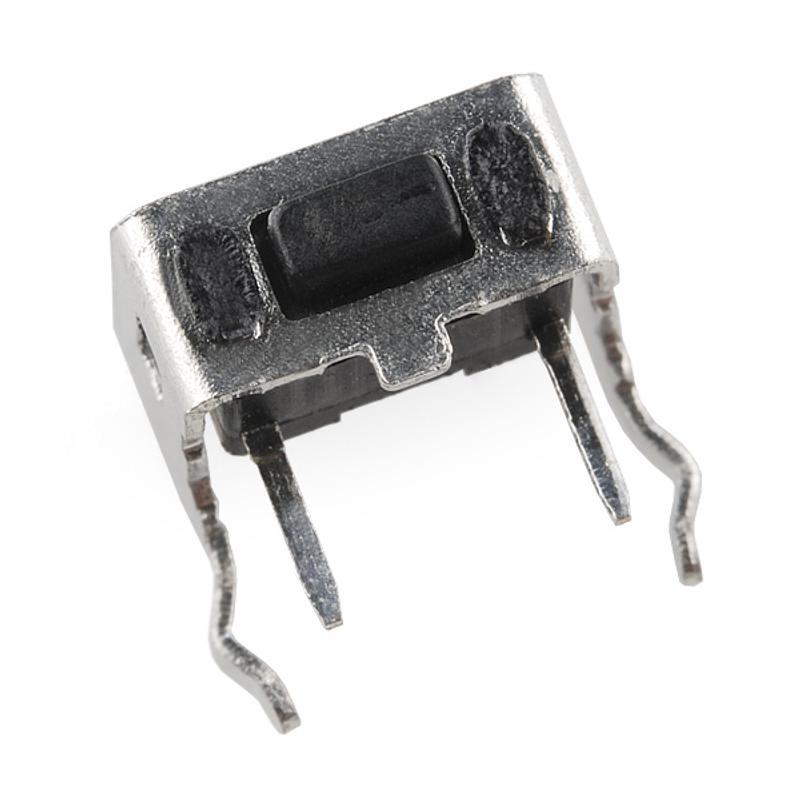

A right-angle tactile switch in a sturdy through-hole package with a satisfying click. Mount it on the edge of your PCB for easy side-access button input.
Specifications
- Orientation – Right angle (horizontal actuation)
- Mounting – Through-hole
- Rating – 12V DC at 50 mA
Ideal For
- Edge-mounted PCB controls
- Reset and mode select buttons
- Custom enclosure interfaces
Package Contents
- 1× Right-angle tactile button
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
