1-In 6-Out Push-In Wire Connector
· MPN: FIT0894
This push-in wire connector turns a single input connection into six output connections, making it a handy power distribution tool for low-voltage DC wiring....
Get notified when back in stock

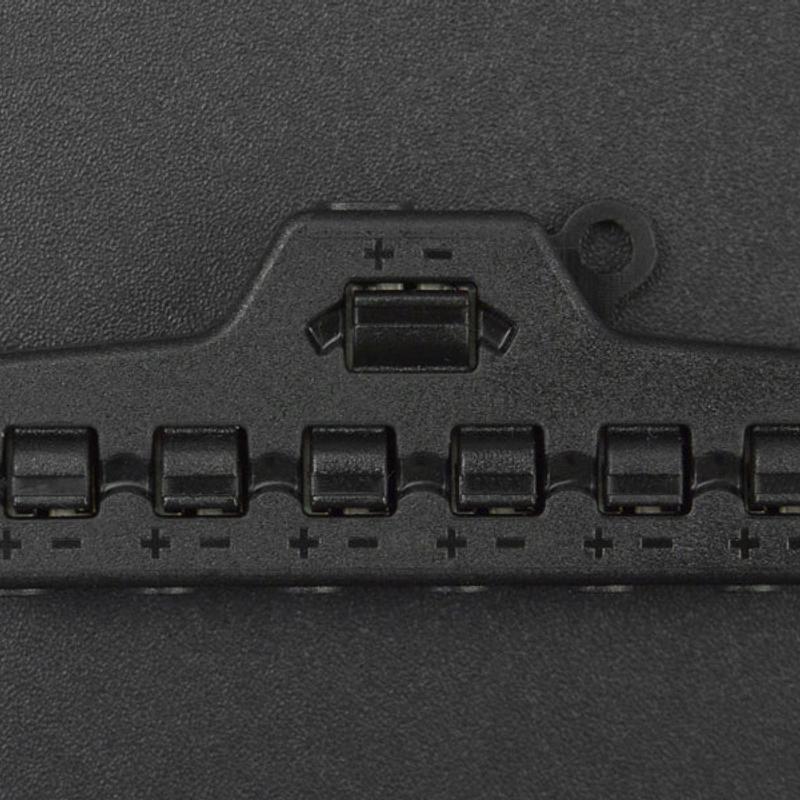

This push-in wire connector turns a single input connection into six output connections, making it a handy power distribution tool for low-voltage DC wiring.

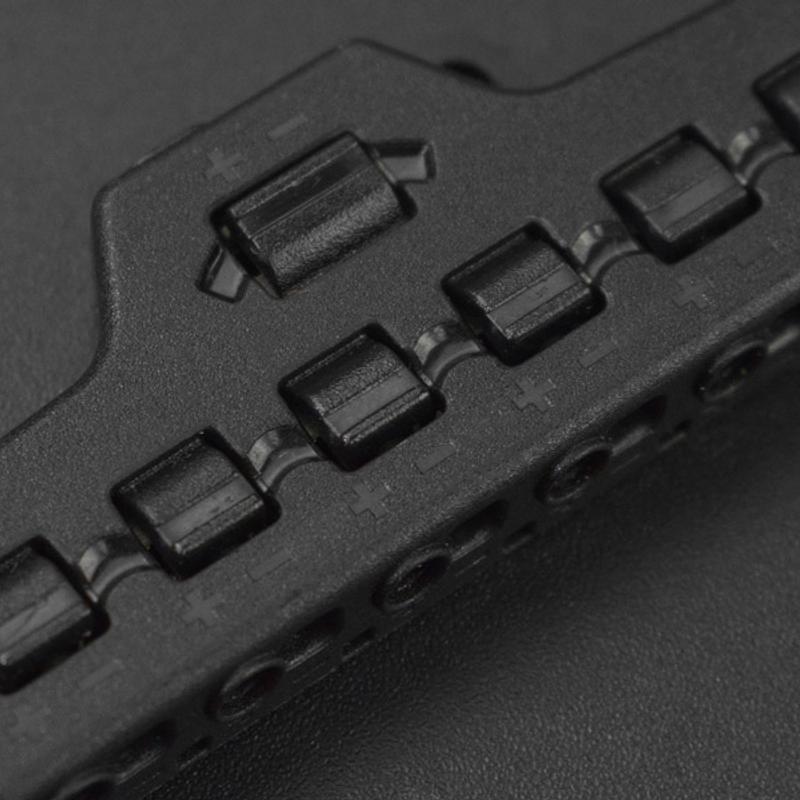

The push-in wiring method makes connections quick and convenient, while the internal conductive spring clamp is designed for firm contact and resistance to loosening or falling out. The connector is also described as recyclable, flame retardant and fire resistant.
Each pack includes one Push-in Wire Connector (1 Input to 6 Outputs).
Features:
- Push-in connection, convenient to use
- With CE certification
Specifications:

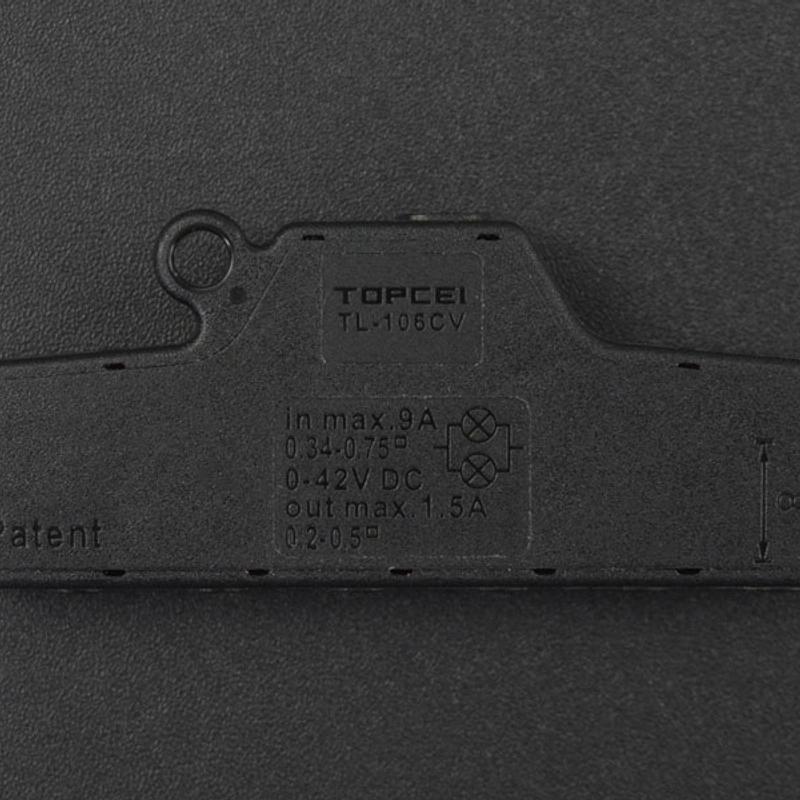

- Rated Voltage: 0-42V DC
- Rated Current Input: 9A
- Rated Current Output: 1.5A
- Operating Temperature: 0-40°C
- Input Solid/stranded conductor: 0.34-0.75mm²
- Input Tinned flexible conductor: 0.34-0.75mm²
- Input Flexible conductor with copper sleeve: 0.5-0.75 mm²
- Output Solid/stranded conductor: 0.2-0.5mm²
- Output Tinned flexible conductor: 0.2-0.5mm²
- Output Flexible conductor with copper sleeve: 0.5mm²
- Wiring Method: Push-in
- Insulation Material: Polyamide 66
- Insulation Fire-proof level: UL 94V-2
- Clamps: Copper and stainless steel
- Size: 58*24*9.3mm/ 22.83*9.45*3.66 inch
Suitable for use as a compact power supply distribution connector in electronics and maker projects.
Jargon buster
Plain-language definitions for the technical terms used above.
- CE certification
- A marking used in Europe to indicate that a product is declared to meet relevant safety, health, or environmental requirements. It can matter when choosing parts for school, workplace, or regulated projects, but it is not the same as an independent performance guarantee.
- Copper sleeve
- A small metal sleeve or ferrule fitted over the end of a flexible wire to keep the strands together. It matters because using a sleeve can improve clamping reliability, but it changes the required wire size and fit.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- Low-voltage DC
- Low-voltage DC is direct-current power at relatively low voltages, commonly used in battery, microcontroller, and small electronics projects. A part rated for low-voltage DC is meant for DC wiring up to its rated voltage and current and is not suitable for mains household wiring.
- Polyamide 66
- A tough engineering plastic often used for electrical housings because it handles heat and mechanical stress better than many general-purpose plastics. It matters because the insulation material affects durability and fire behaviour.
- Spring clamp
- A spring-loaded metal contact that presses against the wire to hold it and make the electrical connection. It matters because the clamp style affects how securely different wire types are held over time.
- Stranded conductor
- A wire made from many thin metal strands bundled together, making it more flexible than solid wire. It matters because some push-in connectors only grip stranded wire reliably within certain size limits or when the end is prepared properly.
- Tinned flexible conductor
- A flexible stranded wire whose exposed end has been coated with solder or tin to hold the strands together. This can make insertion easier, but the connector’s rating must specifically allow tinned wire.
- UL 94V-2
- UL 94V-2 is a plastics flammability rating that describes how a material behaves when exposed to flame in a standard test, with V-2 allowing the material to self-extinguish but permitting flaming drips. It helps you judge a plastic housing or insulation's suitability for projects where heat or fire resistance is a concern.
