Pogo Pin w/ Round Tip
These spring-loaded pogo pins with round tips are ideal for programming jigs, test fixtures, and temporary connections where you don't want to solder permane...

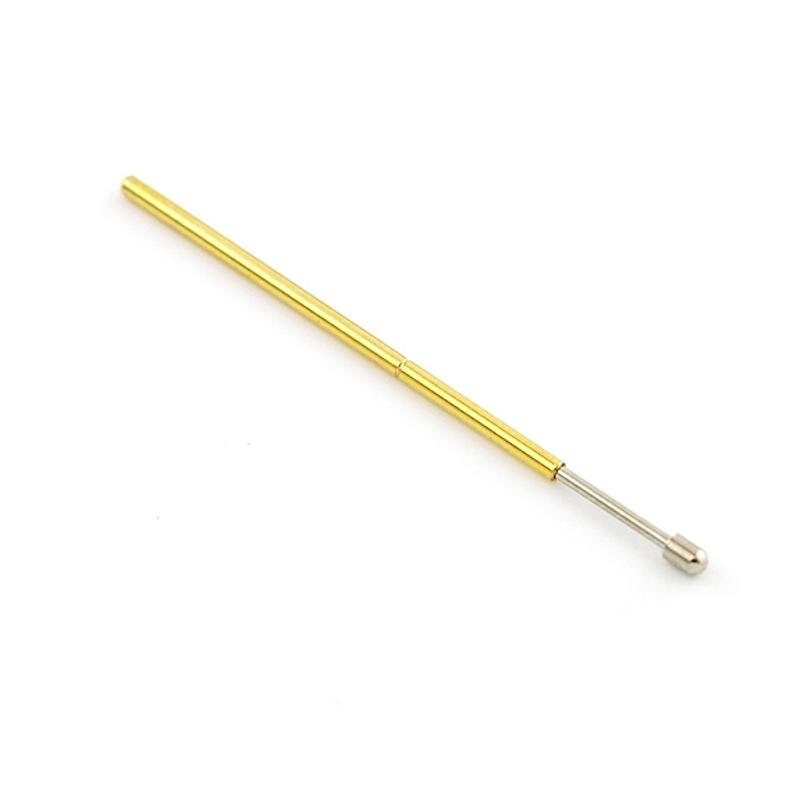

These spring-loaded pogo pins with round tips are ideal for programming jigs, test fixtures, and temporary connections where you don't want to solder permanent headers. The pins fit snugly into standard perfboard holes and can be soldered in place like regular wire.
Key Features
- Spring-Loaded – Reliable temporary contact without soldering to the target
- Round Tip – Good contact with flat pads and plated through-holes
- Perfboard Compatible – Fits standard 0.1" spaced holes
- Solderable – Solder into jigs like normal wire
Specifications

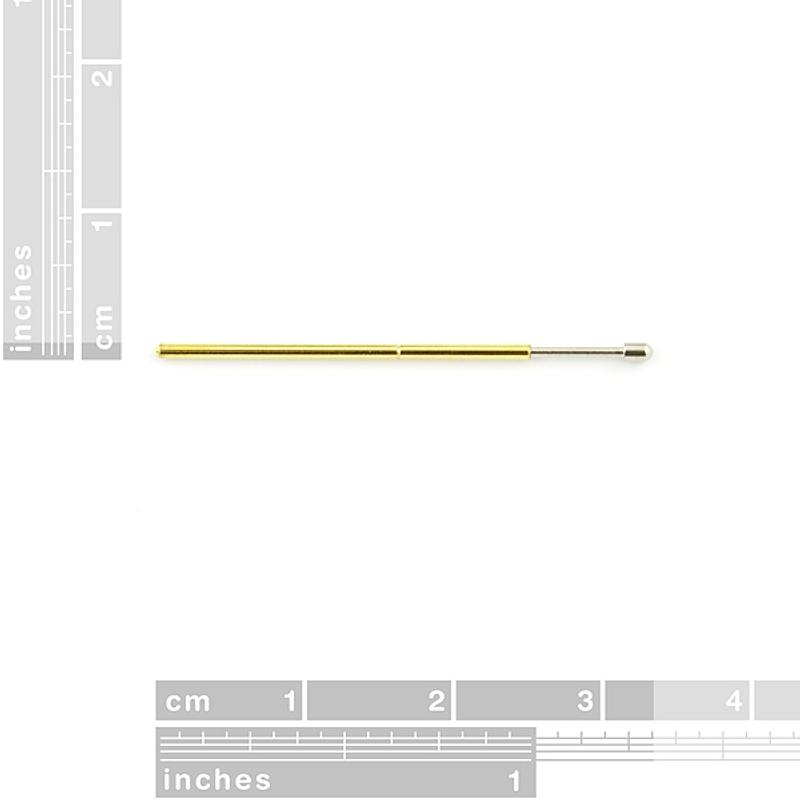

- Length: 33mm (1.3")
- Travel: 6.5mm (¼")
- Head Size: 1.3mm (0.05")
- Tip Type: Round
Ideal For
- Programming and test jigs
- Production testing fixtures
- Temporary board connections
- In-circuit programming without headers
Package Contents
- 1× Pogo Pin (Round Tip)
