micro:Maqueen Plus V2 18650 Robot Kit with Mechanic & micro:bit V2
· MPN: MBT0021-EN-18650-4
This bundle brings together the micro:Maqueen Plus V2 18650 robot car, the micro:Maqueen Mechanic add-on kit, and a micro:bit V2 board for classroom STEAM le...
Get notified when back in stock
This bundle brings together the micro:Maqueen Plus V2 18650 robot car, the micro:Maqueen Mechanic add-on kit, and a micro:bit V2 board for classroom STEAM lessons, after-school projects and robot competitions. Batteries are not included.

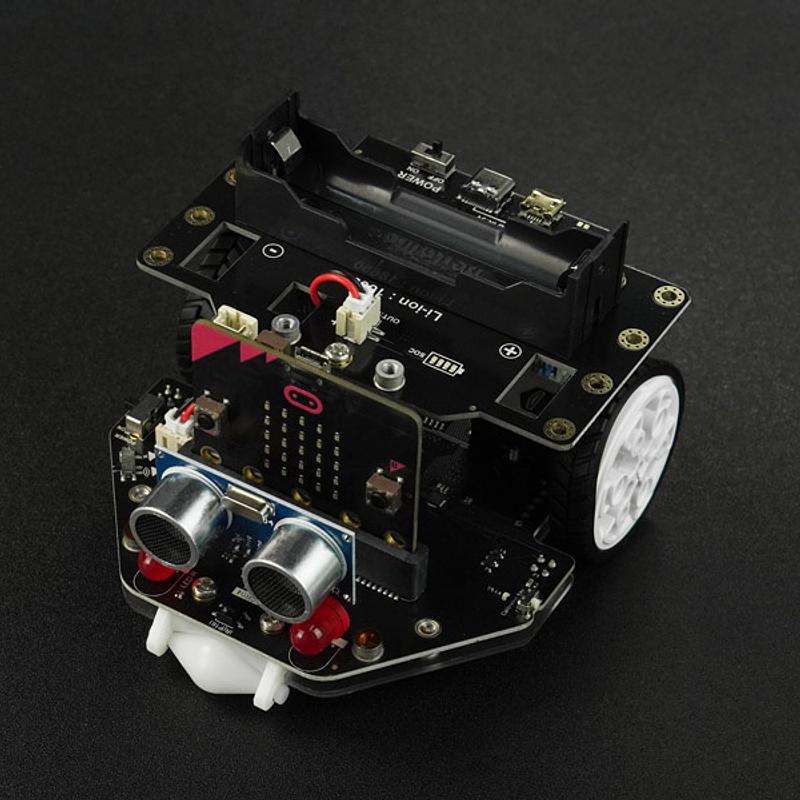

Maqueen Plus V2 is an expanded educational robot platform with more IO, a larger body, a larger-capacity power setup, line tracking, ultrasonic sensing, lights, buzzer and IR reception. It is designed to be easy to get started with while still offering room for extra peripherals such as HuskyLens AI camera and Maqueen Mechanic builds.
The included Mechanic kit supports Forklift, Push, Beetle and Loader style constructions, with plates, linkages, gripper parts, servos, fasteners and an installation manual. The Maqueen Plus V2 vehicle body is supplied with the motor, vehicle wheel, support wheel and battery panel already installed, and the bundle also includes an H-SR04 ultrasonic sensor, line-tracking map, micro:bit V2 and Type-C & Micro 2-in-1 USB cable.
Programming is supported through Mind+ and MakeCode, with a MakeCode library provided for the Maqueen Plus V2 platform.
Features:
- Two versions to choose from: 4 AA battery and 18650 battery
- New plastic box with a deeper base, enough room for the assembled car

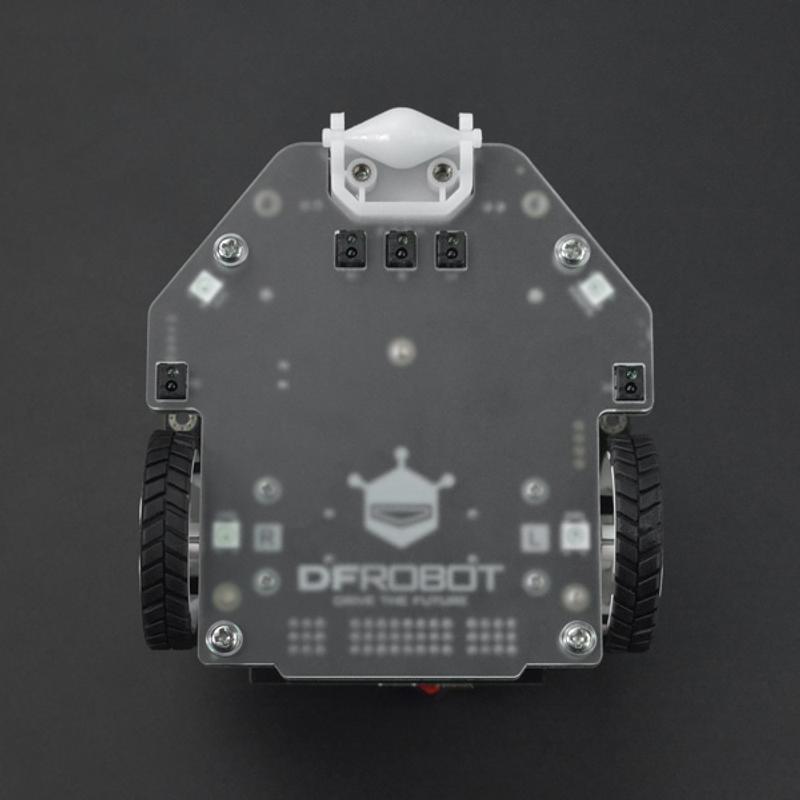

- Frosted acrylic protective plate at the bottom, more durable and reliable
- The number of line-tracking sensors has changed from 6 to 5, more convenient to program and optimise line-tracking codes
- Employs the motors whose parameters are the same as previous Maqueen, running steadily and smoothly

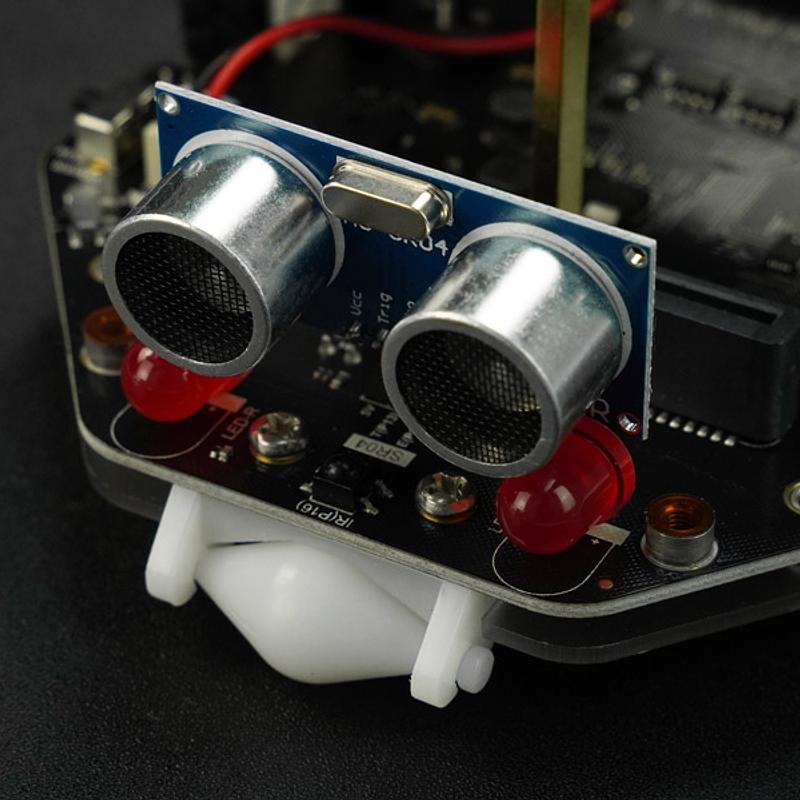

- Changes ultrasonic sensor to SR04, easier to install
- Add 4 RGB ambient lights at the base, RGB car lights have been changed to LEDs
- Delete the less usable magnetic encoder
- No complex assembly, get started in minutes
- More IO expansion ports: 3.3V IO x7, 5V IO x3, I2C x3

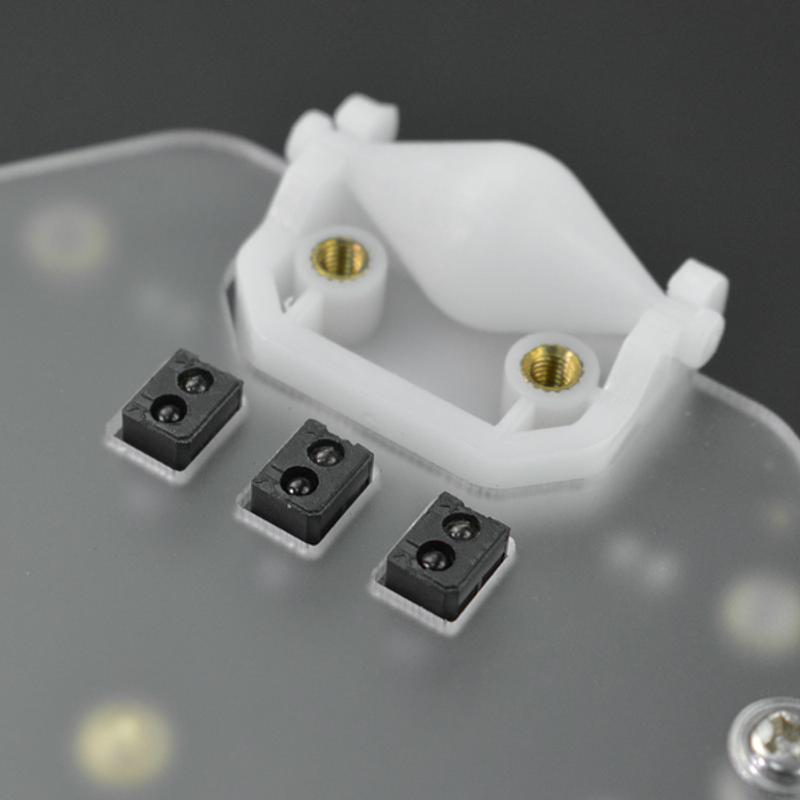

- 5 line-tracking sensors, reliable and flexible
- Larger body, more flexible expansion methods
- Two versions to choose from: AA battery and 18650 battery
- AA battery version supports 1.2V Ni MH battery or 1.5V alkaline battery, while 18650 battery version supports 3.7V 18650 battery
- Works well with HuskyLens AI camera
- Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.
- Frosted acrylic protective plate at the bottom

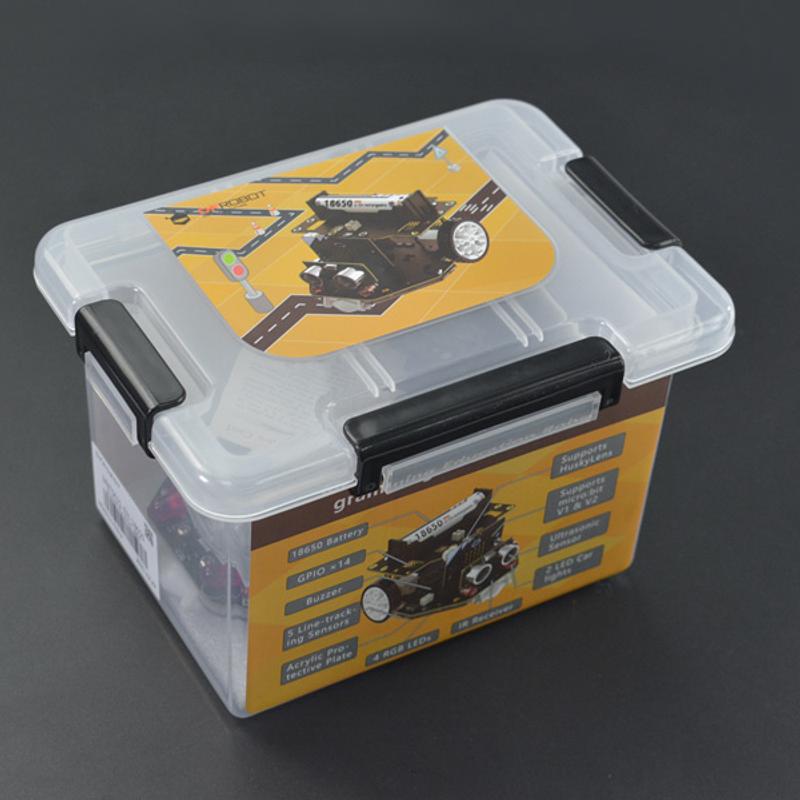

- Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car
Specifications:

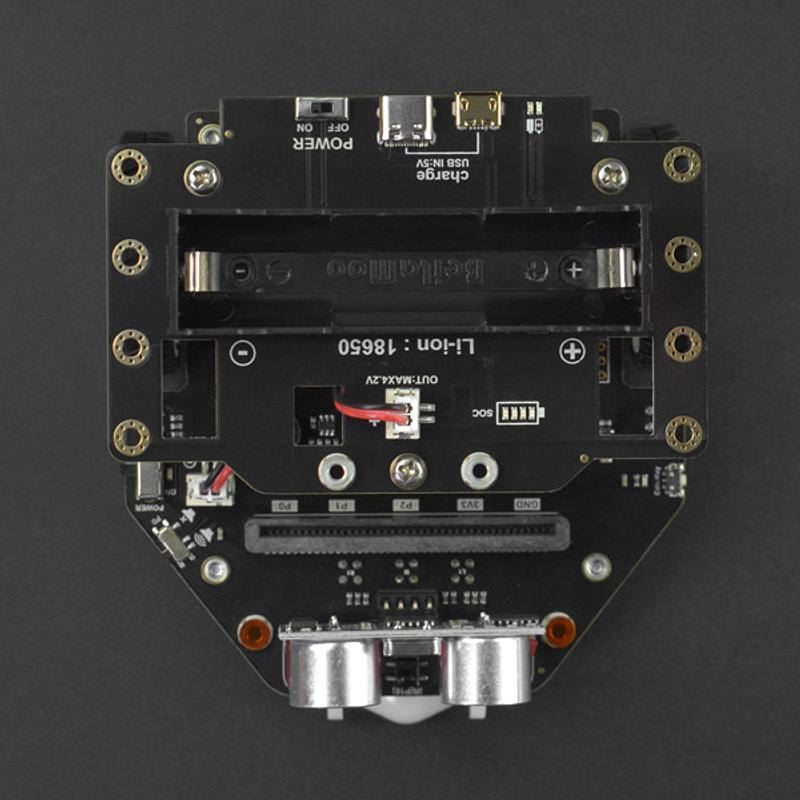

- Power Supply: MBT0021-EN-18650: 18650 Lithium battery (3.6V or 3.7V) x 1, onboard charging circuit, MicroUSB and TYPE-C charging interfaces, 4 hours to charge fully
- Support: micro:bit V1 and V2
- N20 All-metal Gear Motor: x 2
- Buzzer: x 1
- 5V IO: (P0 P1 P2) x 3
- 3.3V IO: (P0 P1 P2 P8 P12 P13 P14 P15)
- 3.3V I2C: x 2
- 5V I2C: x 1
- Large Size LED Car Lights: x 2
- RGB Ambient Lights: x 4
- Line-tracking Sensor: x 5
- Line-tracking Sensor: with One-key Calibration
- IR Receiver: x 1
- SRO4 Ultrasonic Module: x 1
- Dimension: 136mm×65mm/5.35×2.56"
- Programming Platform: Mind+, MakeCode
- Wiki Address: Product wiki
- MakeCode Library Address: https://github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20
A good fit for STEM and STEAM education, line-following activities, robotics competitions and micro:bit-based coding lessons.
Jargon buster
Plain-language definitions for the technical terms used above.
- encoder
- An encoder is a sensor that converts the rotation or position of a shaft, knob or dial into electrical signals, reporting movement as incremental steps and direction, or as an absolute position. It is used to track how far something has turned, which matters for precise positioning, speed control, repeatable movement, or using a rotary knob as an input.
- I2C
- I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- line-tracking sensor
- A line-tracking sensor detects contrast between a dark line and a lighter surface, usually using infrared light. It matters for robot activities where the robot follows a track, such as classroom challenges or competitions.
- RGB
- Short for red, green and blue, the three primary colours of light that are mixed in varying amounts to make a wide range of colours. In electronics RGB can refer to an LED or pixel that blends these three colours, or to a colour signal or interface that carries separate red, green and blue channels.
- Type-C
- USB Type-C (USB-C) is a small, reversible USB connector used for charging, power, and data transfer on many modern devices. A Type-C port or plug indicates the cable and charger connection needed to power, charge, or communicate with a device.
- Ultrasonic module
- An ultrasonic module measures distance by sending out high-frequency sound pulses and timing their echo. It is commonly used for obstacle detection and simple range-finding projects, but it needs a clear path to the target.
- ultrasonic sensing
- Ultrasonic sensing uses high-frequency sound waves to estimate distance to nearby objects. For a robot kit, this helps with obstacle avoidance and simple navigation activities.
