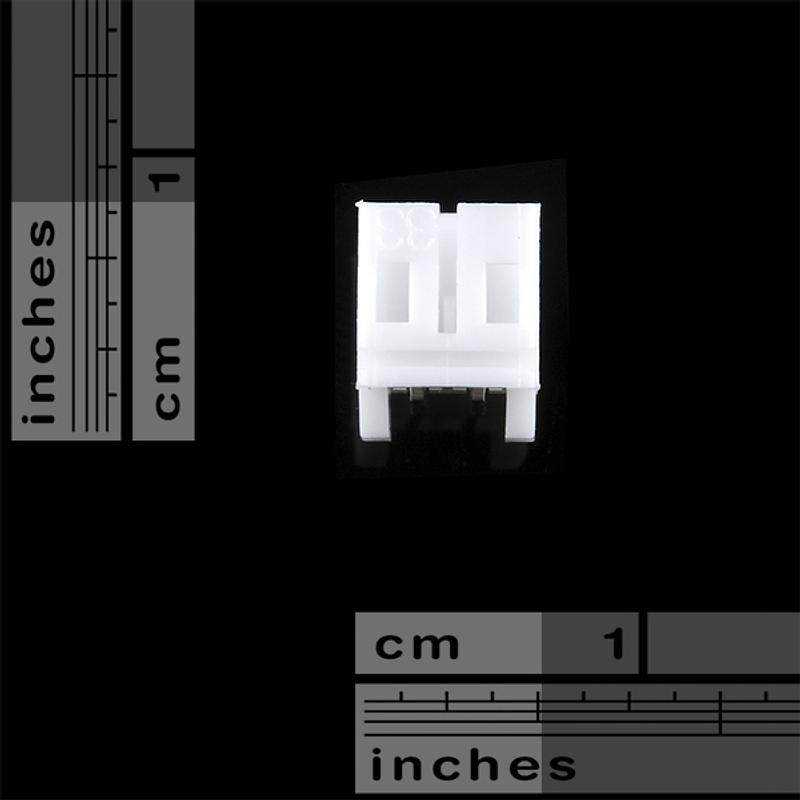

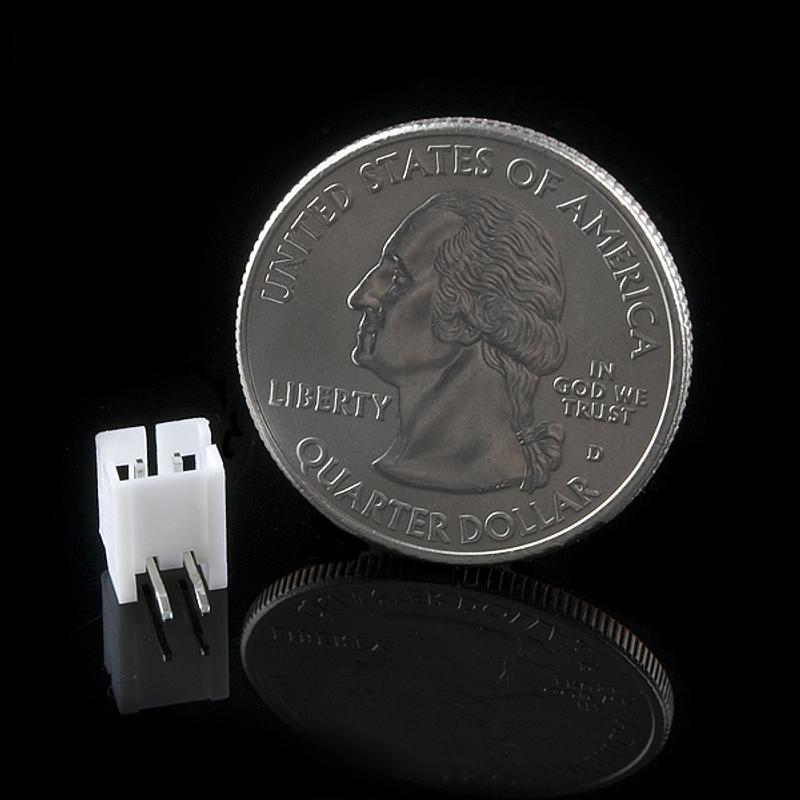

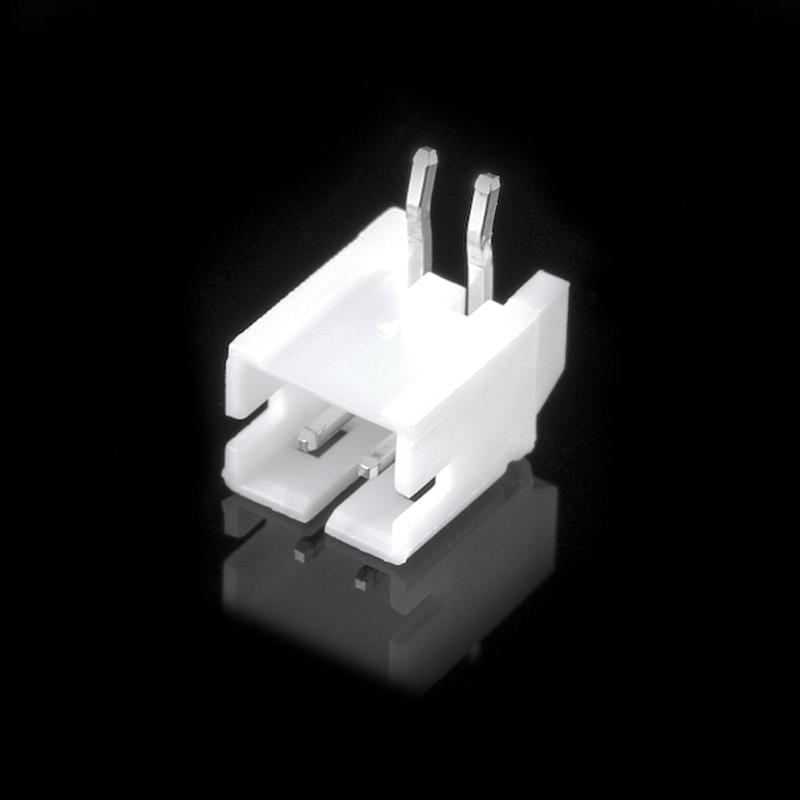

JST Right-Angle Connector - Through-Hole 2-Pin

A 2-pin right-angle JST PH series connector for through-hole PCB mounting. With a 2 mm pin pitch, this is the standard connector used on most single-cell LiPo batteries, making it ideal for battery-powered projects and charging circuits.

Key Features

• JST PH Series – Industry-standard 2 mm pitch connector
• Right-Angle Mount – Through-hole pins with horizontal mating direction
• Secure Locking – Positive latch mechanism for reliable connections
• LiPo Compatible – Mates with standard 2-pin JST PH LiPo battery leads

Specifications

• Connector Type – JST PH, 2-pin
• Pin Pitch – 2 mm
• Mounting – Through-hole, right-angle

Ideal For

• LiPo battery connections on custom PCBs
• Battery charging circuits
• Portable electronics prototyping

Resources

• Datasheet (PDF)
