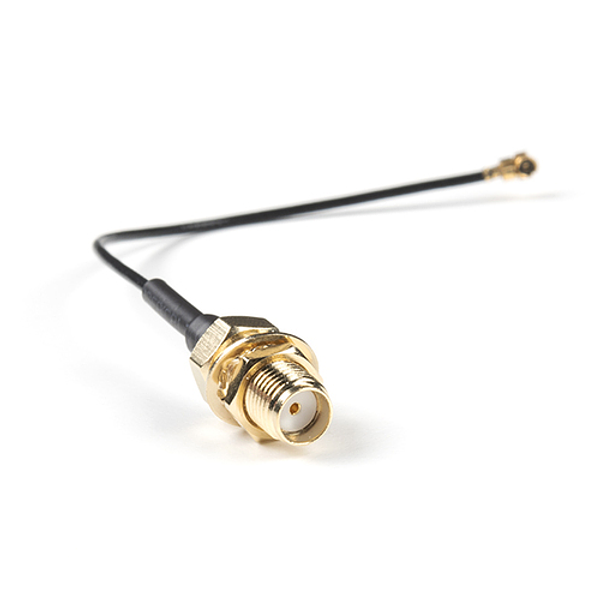

Interface Cable U.FL to SMA
All Products
Headers & Connectors
New Arrivals
SparkFun
Brands and Manufacturers
Jumpers & Wires
Components
Prototyping & Wiring
$20.25
|
Only 1 left
A U.FL to SMA (jack) bulkhead straight connector with a 1.32 mm diameter cable. Less than -2 dB cable insertion loss up to 6 GHz. Both connectors are gold...
Get notified when back in stock
Estimated Delivery
Arrives
Order now — ships Thu 6 Aug
Disclaimer
Secure checkout
A U.FL to SMA (jack) bulkhead straight connector with a 1.32 mm diameter cable. Less than -2 dB cable insertion loss up to 6 GHz. Both connectors are gold-plated brass and the cable conductor is silver-coated copper.
Includes:
- 1x U.FL to SMA cable
- 1x Locking Nut and Bulkhead Washer
Features:
- Connector A Series: SMA
- Connector A Gender: Jack (Female)
- Connector A Body Style: Bulkhead
- Connector B Series: U.FL
- Connector B Gender: Plug (Male)
- Connector B Body Style: Right Angle
- Cable Length: 100 mm
- Impedance: 50 Ohms
- Maximum Frequency: 6 GHz
- Cable Type: 1.32 mm Coax
- Contact Plating: Gold
- Contact Material: Brass
- Connector A Polarity: Normal
- Connector B Polarity: Normal
- Polarity: Normal
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- Impedance
- Impedance is the total opposition a component or circuit presents to alternating current, measured in ohms, combining resistance with frequency-dependent reactance. It appears in many contexts, such as matching a speaker's impedance (for example 4 ohm or 8 ohm) to an amplifier or the input and output impedance of signal circuits, and a correct match helps avoid weak signals, distortion or damage.
- SMA
- SMA is a small threaded coaxial (RF) connector widely used to attach antennas and other radio-frequency cables. A device with SMA antenna ports needs antennas or pigtails with matching SMA connectors, or a suitable adapter, to connect to them.
- u.FL
- u.FL is a tiny snap-on antenna connector often used on compact wireless boards. A board with u.FL usually needs an external antenna, which matters if the product will be inside an enclosure or needs better antenna placement.
