24V 1000kg·cm IP65 Brushless PWM Servo with Magnetic Encoder
· MPN: SER0074
This industrial brushless servo is built for large mechanical systems that need very high torque and accurate angular positioning. It combines a high-efficie...

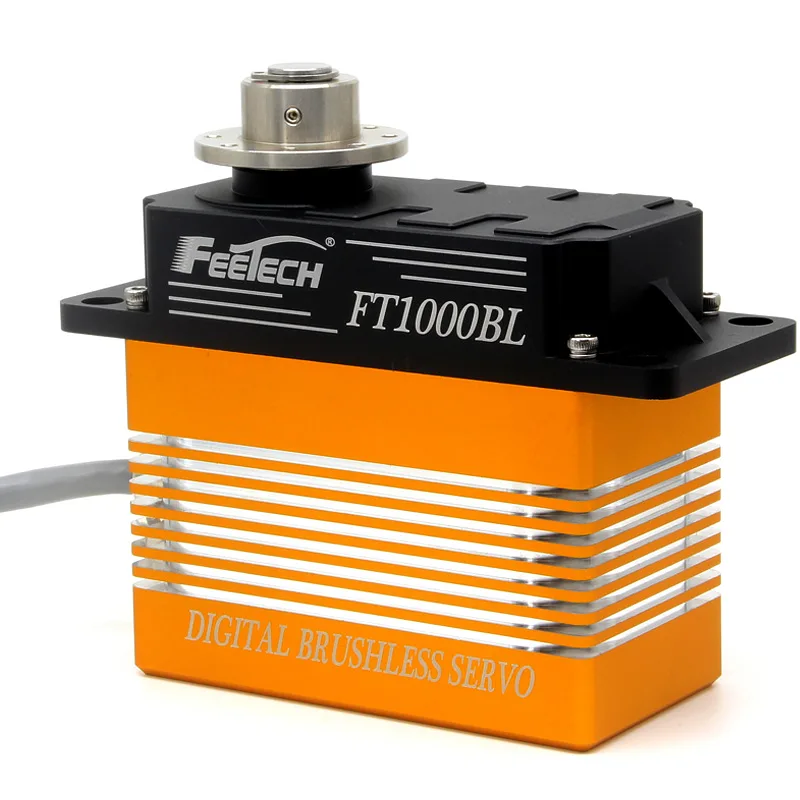

This industrial brushless servo is built for large mechanical systems that need very high torque and accurate angular positioning. It combines a high-efficiency brushless motor, a 12-bit non-contact magnetic encoder and standard PWM control for use in heavy equipment, automation systems and large-scale robotics.
At 24V it can deliver a 1000 kg·cm stall torque, with a 390:1 hardened steel gear train to convert motor power into rotational force. The IP65-rated all-aluminium alloy housing helps protect the internal mechanism from dust and low-pressure water jets, making it suitable for tougher environments such as factory floors, outdoor installations and marine control systems.
The magnetic encoder provides high-resolution position feedback without the wear associated with potentiometer-based servos. Standard PWM control supports integration with controllers such as Arduino, Raspberry Pi, industrial microcontrollers and robotics control systems.
Each pack includes one All-Metal PWM Magnetic Encoder Brushless Servo (24V 1000kg).
Features:
- High-efficiency brushless motor architecture
- Extreme stall torque up to 1000 kg·cm at 24V
- 12-bit magnetic encoder for high-precision position feedback
- 0.09° position resolution with less than 1° deviation
- Hardened steel gear train with 390:1 reduction
- IP65-rated all-metal aluminum alloy housing
- Standard PWM control interface (500–2500 μs)
- Operating temperature range from −40°C to 60°C
- Designed for long service life exceeding 200,000 cycles
Specifications:
- Operating Voltage: 16V - 28V (24V Typical)
- Stall Torque: 1000 kg·cm
- Speed: 0.588 s/60° (17 RPM)
- Motor Type: High-efficiency Brushless
- IP Rating: IP65
- Gears: Hardened Steel
- Housing: All-Aluminum Alloy
- Dimensions: 100 x 51 x 90.9 mm
- Weight: 1000 g
- Control Signal: Standard PWM (500-2500μs)
- Rotation Angle: 180°
- Position Sensor: 12-Bit Magnetic Encoder
Use it for demanding motion-control jobs such as heavy machinery steering, marine rudder control, large valve actuators, PTZ tilt mechanisms and stage robotics.
