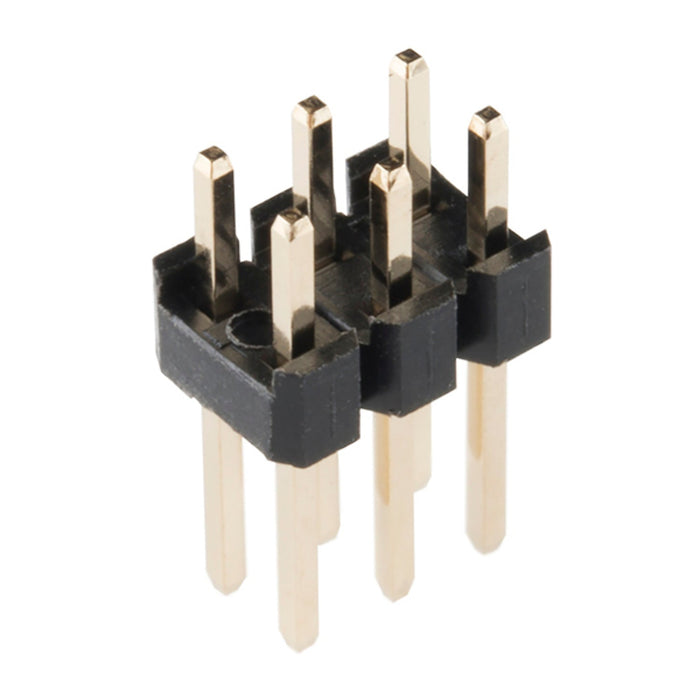

Header - 2x3 (Male, 0.1)

Jargon buster

Plain-language definitions for the technical terms used above.

AVR

AVR is a family of 8-bit microcontrollers (made by Microchip, formerly Atmel) used in many classic Arduino-style boards such as the Uno and Nano. They are widely supported but older, which can be a limit for memory- or speed-intensive tasks.

Headers

Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.

ISP

In electronics, ISP usually means In-System Programming, a way to load firmware onto a microcontroller while it stays on the board (often via an ICSP header), or an Image Signal Processor, hardware that turns raw camera sensor data into usable images and offloads the main CPU. The surrounding context shows which meaning applies.

microcontroller

A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.

PCB

A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.

through-hole

A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
