Gravity PH2.0 to Female DuPont Tagged Cable 30cm - 5 Pack
· MPN: FIT0916-F
These labelled jumper cables are designed to make Gravity project wiring easier to follow, especially when a build has several similar connections. Each cabl...

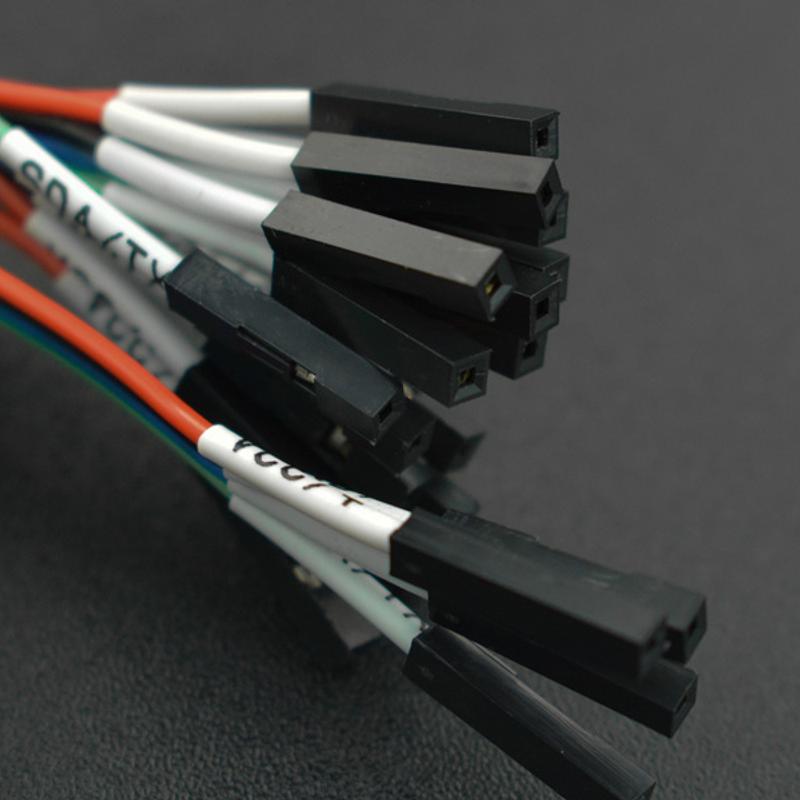

These labelled jumper cables are designed to make Gravity project wiring easier to follow, especially when a build has several similar connections. Each cable carries I2C/UART pin labels so you can identify power, ground, clock/receive and data/transmit lines without relying only on wire colour or tiny board silkscreen.
The wire sequence is kept the same at both ends and follows the latest DFRobot Gravity series pin definition, making these cables a handy fit for Gravity interfaces, breadboards and debugging setups.

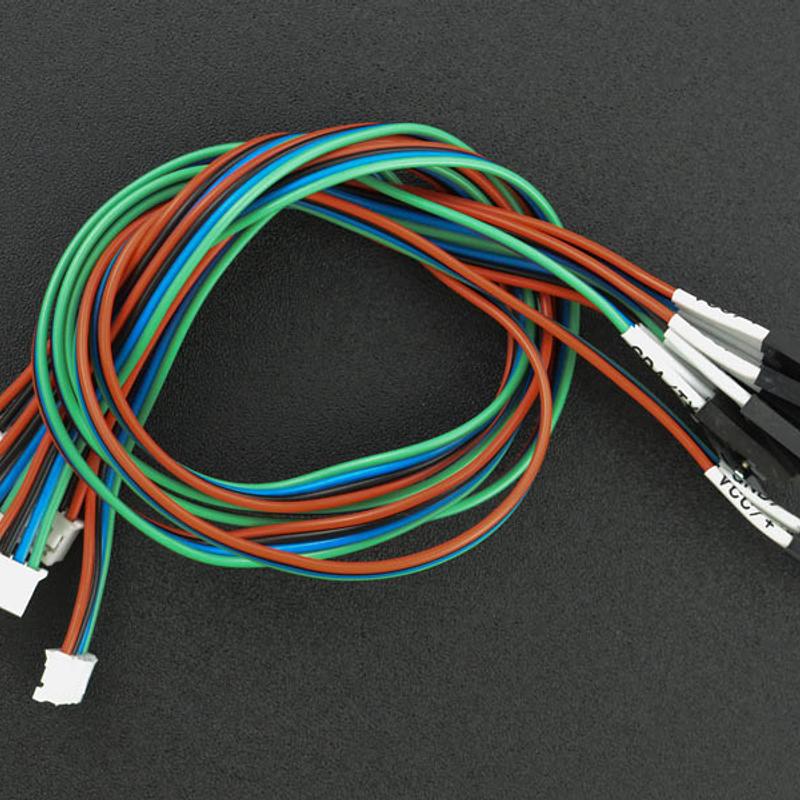

Each pack includes five 30cm PH2.0 to female DuPont cables with tags, suitable for STEAM education, projects with multiple Gravity interfaces and general prototyping.
Features:
- High-quality
- RoHS compliant
- Colours and labels make for easier view and more efficient wiring
- Compliant with the I2C & UART pin definition of the DFRobot Gravity series
- Red Line: VCC/+ (Power +)
- Black Line: GND/- (Power -)
- Blue Line: SCL/RX (Clock/Receive)
- Green Line: SDA/TX (Data/Transmit)
Specifications:

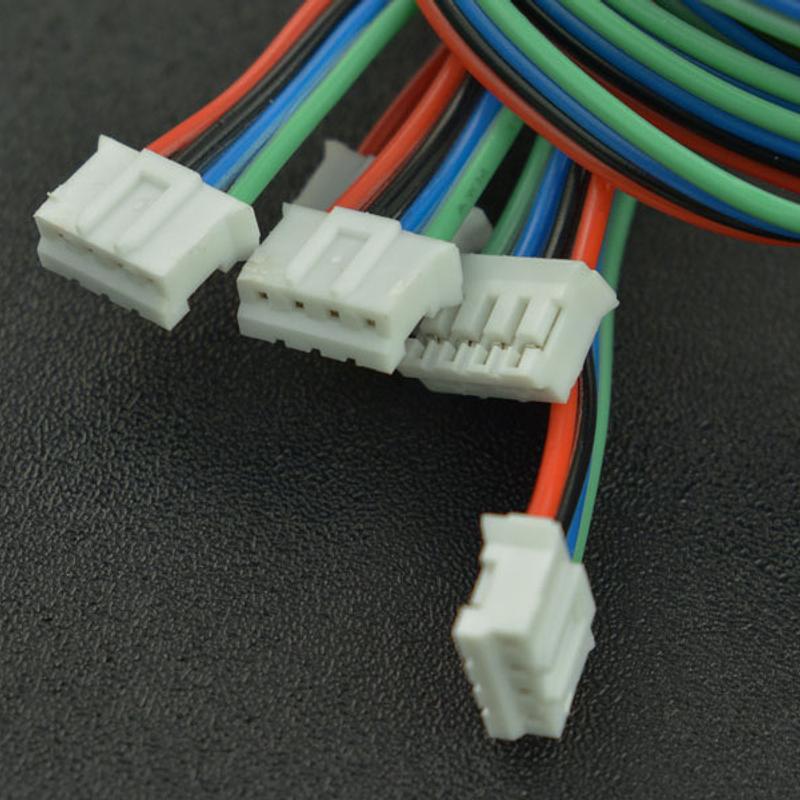

- Interface: PH2.0-DuPont 2.54 (Female)
- Length: 30cm
- Withstand Voltage: ＜50V
- Withstand Current: ＜1000mA
Jargon buster
Plain-language definitions for the technical terms used above.
- Gravity
- Gravity is DFRobot’s plug-in connector system for sensors, motors and modules, using standard cables to reduce loose jumper wiring. It matters because Gravity-compatible parts can connect directly to these ports, while non-Gravity parts may need adapters or manual wiring.
- I2C
- I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
- UART
- UART is a simple serial connection that sends data over separate transmit and receive wires, often labelled TX and RX. It matters because this module is designed to replace a wired UART cable with a wireless link while keeping the same serial data format.
