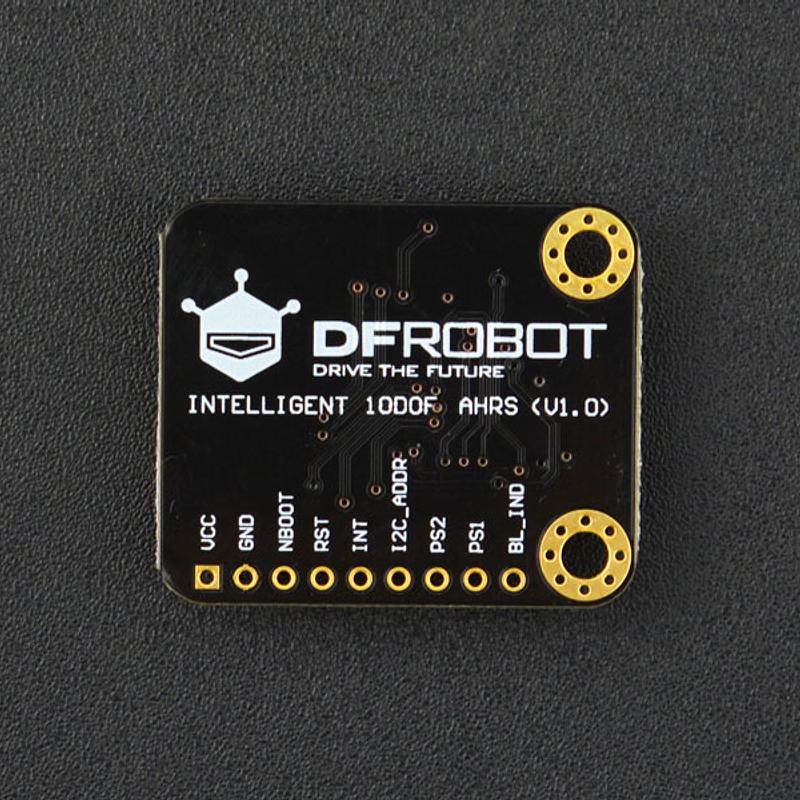

DFRobot Gravity 10DOF IMU AHRS (BNO055 + BMP280)
· MPN: SEN0253
This compact Gravity module combines a Bosch BNO055 absolute orientation sensor with a BMP280 barometric pressure and temperature sensor to create a 10DOF AH...
This compact Gravity module combines a Bosch BNO055 absolute orientation sensor with a BMP280 barometric pressure and temperature sensor to create a 10DOF AHRS module for motion, heading and environmental sensing.
The BNO055 integrates a triaxial 14-bit accelerometer, triaxial 16-bit gyroscope, triaxial geomagnetic sensor and a 32-bit microcontroller, allowing it to output both raw sensor data and fused orientation data such as quaternions, Euler angles and vectors. The BMP280 adds barometric pressure and temperature measurement, with pressure data suitable for altitude calculations using the appropriate formula.

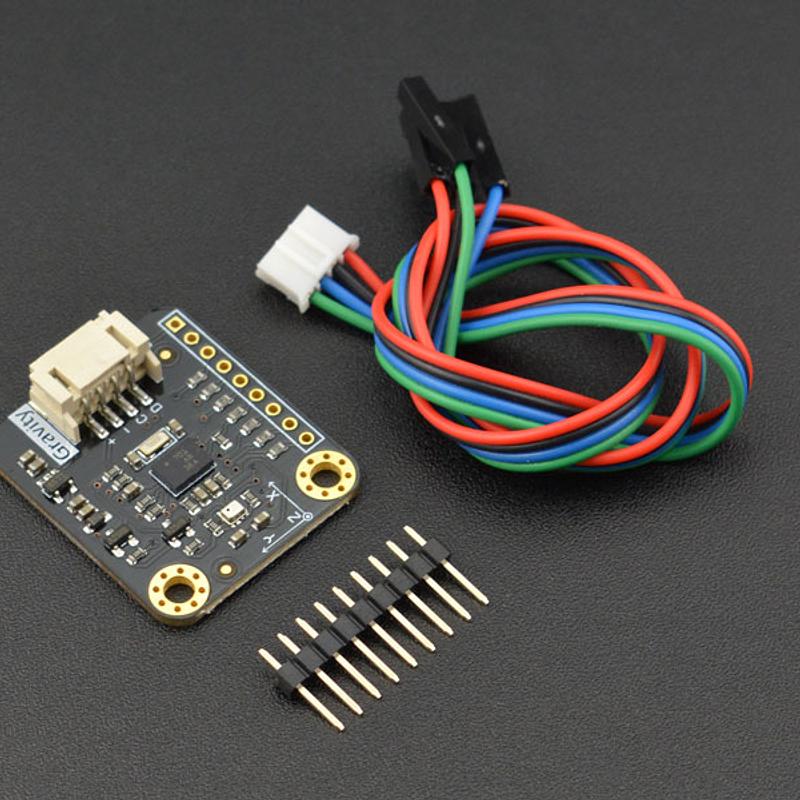

The standard Gravity-I2C interface helps simplify integration into Gravity-compatible projects, including wearable hardware, augmented reality, immersive gaming, personal health and fitness, indoor navigation and other context-aware applications. DFRobot provides a product wiki, and the package includes the Gravity BNO055+BMP280 intelligent 10DOF AHRS(V1.0) Module x1 and Gravity 4Pin I2C/UART Sensor Cable x1.
Features:
- BNO055: Outputs fused sensor data: quaternions, euler angles, rotation vector, linear acceleration, gravity, heading.
- BNO055: 3 sensors in one device: 16-bit gyroscope, 14-bit accelerometer, geomagnetic sensor
- BNO055: Intelligent Power Management: normal, low power and suspend mode available
- BMP280: Barometric pressure & Temperature sensor
Specifications:
- Operating Voltage: 3.3V~5V DC
- Operating Current: 5mA
- Interface: Gravity-I2C Interface
- Operating Temperature: -40~+80℃

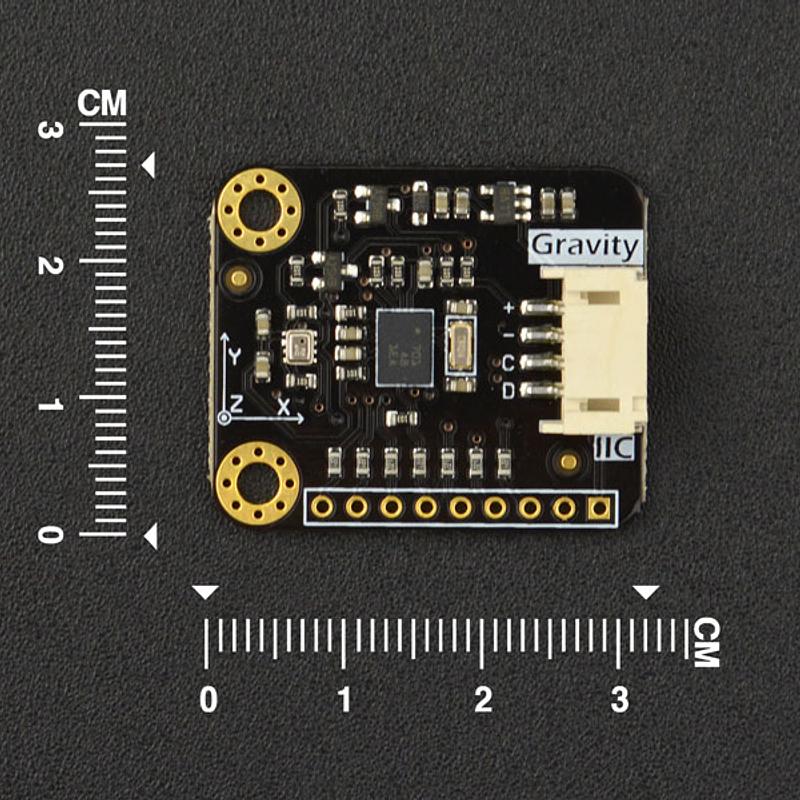

- Product Dimension: 32x27 mm/1.26x1.06”
- BNO055 Accelerometer acceleration ranges: ±2g/±4g/±8g/±16
- BNO055 Accelerometer low-pass filter bandwidths: 1kHz~<8Hz
- BNO055 Accelerometer operation modes: normal, suspend, low power, standby, deep suspend
- BNO055 Accelerometer on-chip interrupt control: motion-triggered interrupt-signal
- BNO055 Gyroscope ranges: switchable from ±125°/s~2000°/s
- BNO055 Gyroscope low-pass filter bandwidths: 523Hz~12Hz
- BNO055 Gyroscope operation modes: normal, fast power up, deep suspend, suspend, advanced power save.
- BNO055 Gyroscope on-chip interrupt control: motion-triggered interrupt-signal
- BNO055 Geomagnetic magnetic field range typical: ±1300uT(x-,y-axis);±2500uT(z-axis)
- BNO055 Geomagnetic magnetic field resolution: ~0.3
- BNO055 Geomagnetic operating nodes: low power, regular, enhanced regular, high accuracy
- BNO055 Geomagnetic power modes: normal, sleep, suspend, force
- BMP280 Digital Pressure Sensor pressure range: 300~1100hPa
- BMP280 Digital Pressure Sensor relative accuracy: ±0.12hPa（±1m）
- BMP280 Digital Pressure Sensor absolute accuracy: ±1hPa（±8.33m）
- BMP280 Digital Pressure Sensor temperature range: 0℃~65℃
- BMP280 Digital Pressure Sensor temperature resolution: 0.01℃
