DFRobot GDI-Line 18-Pin Reverse FPC Cable 20cm - 5 Pack
· MPN: FIT0691
This 20cm 18-pin FPC flat flex ribbon cable is made for connecting compatible display modules and controller boards that use the GDI interface. Its reverse 1...
Get notified when back in stock

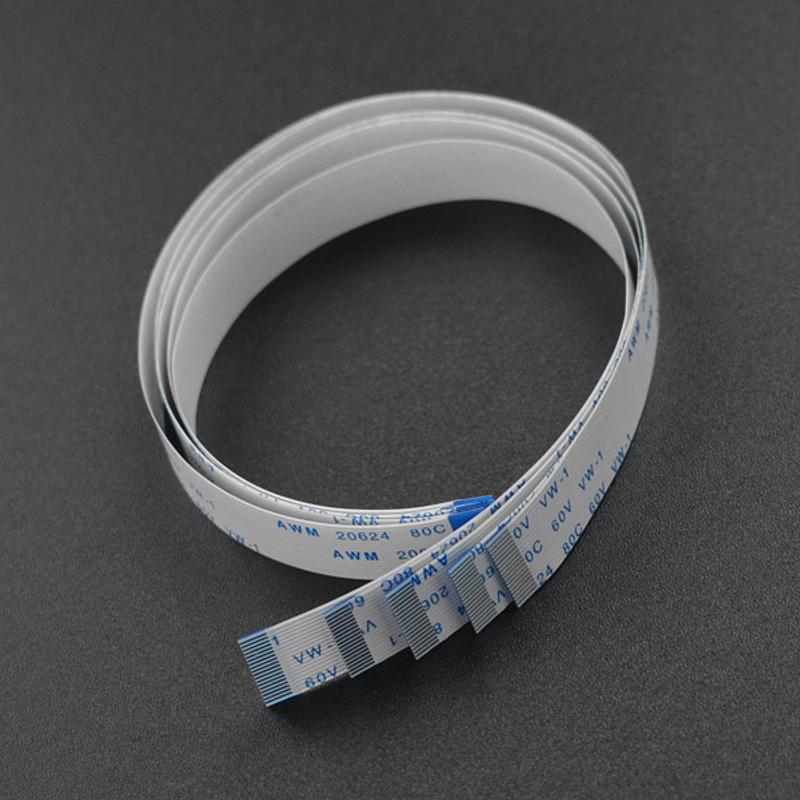

This 20cm 18-pin FPC flat flex ribbon cable is made for connecting compatible display modules and controller boards that use the GDI interface. Its reverse 18-pin layout and 0.5mm pitch suit compact display projects where tidy, low-profile internal wiring is needed.

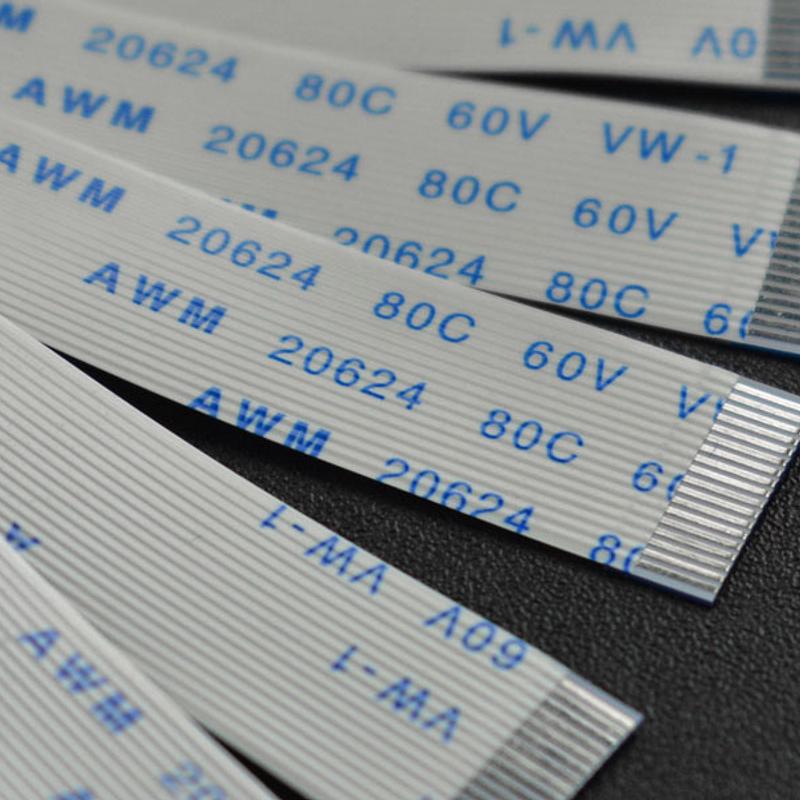

The flexible polyimide-based ribbon construction can be routed through tight spaces and bent during assembly, making it useful for embedded display development, hardware prototypes and compact device builds. Insulated contact pads help maintain stable contact in FPC connectors for image and video signal transfer.
Supplied as a pack of five GDI-Line-20CM cables, this is a handy replacement or prototyping cable set for GDI display module connections and display controller integration.
Features:
- 18-pin reverse FPC connector designed for GDI display interface
- 0.5mm fine pin pitch suitable for compact electronics and display modules
- Flexible flat cable structure supports sharp bending during installation

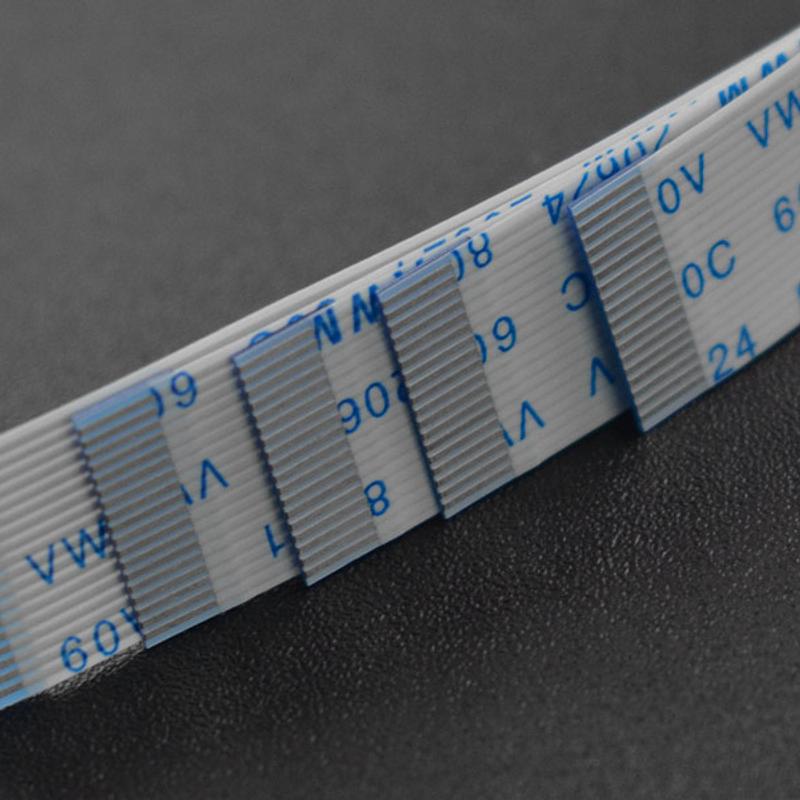

- Insulated contact pads improve connector stability and signal transmission
- 20cm cable length provides convenient routing inside enclosures
- Optimised for reliable image and video signal transfer
Specifications:
- Interface: 18PIN (Reverse)
- Pin Pitch: 0.5mm
- Length: 20CM
- Compatibility: GDI only
Jargon buster
Plain-language definitions for the technical terms used above.
- FPC
- FPC stands for flexible printed circuit, a thin flat flexible cable or connector style often used where space is tight or some movement is needed, commonly for displays, cameras and other high-density connections. Connecting to an FPC connector generally needs a matching cable with the correct pin count, pitch and contact orientation.
