Flexiforce Pressure Sensor - 100lbs

$39.89

Part Number:  DF-SEN0066
Brand:  DFRobot Australia

Introduction This is a piezoresistive force sensor. The harder you press, the lower the sensor's resistance. Pressing hard, the resistance changes from infinite to ~300k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. Used as a presence sensor (someone standing), weight...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Introduction

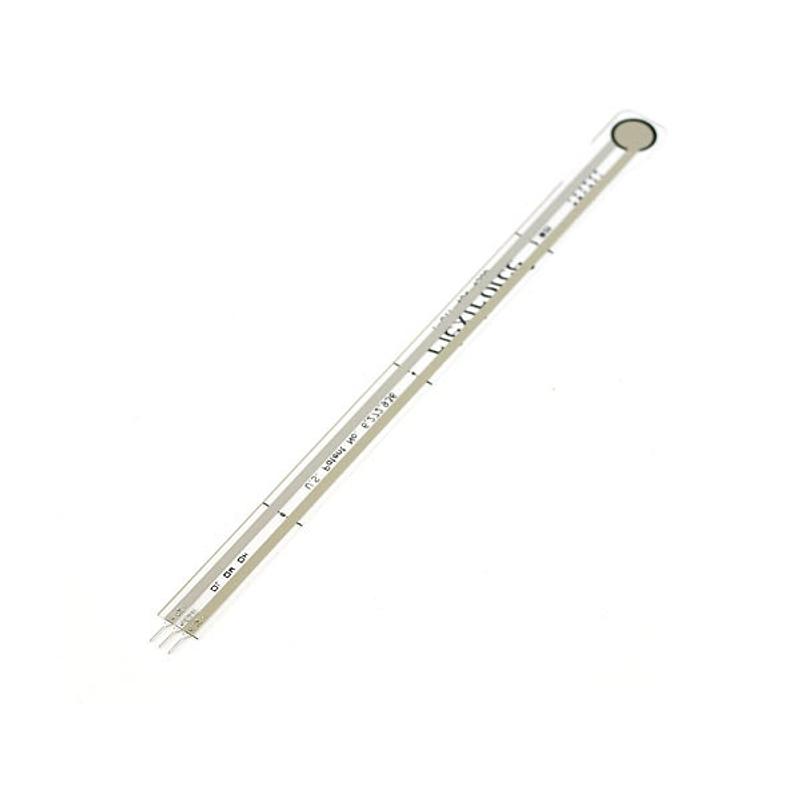

This is a piezoresistive force sensor. The harder you press, the lower the sensor's resistance. Pressing hard, the resistance changes from infinite to ~300k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. Used as a presence sensor (someone standing), weight sensor, pressure sensor (impact testing), etc.

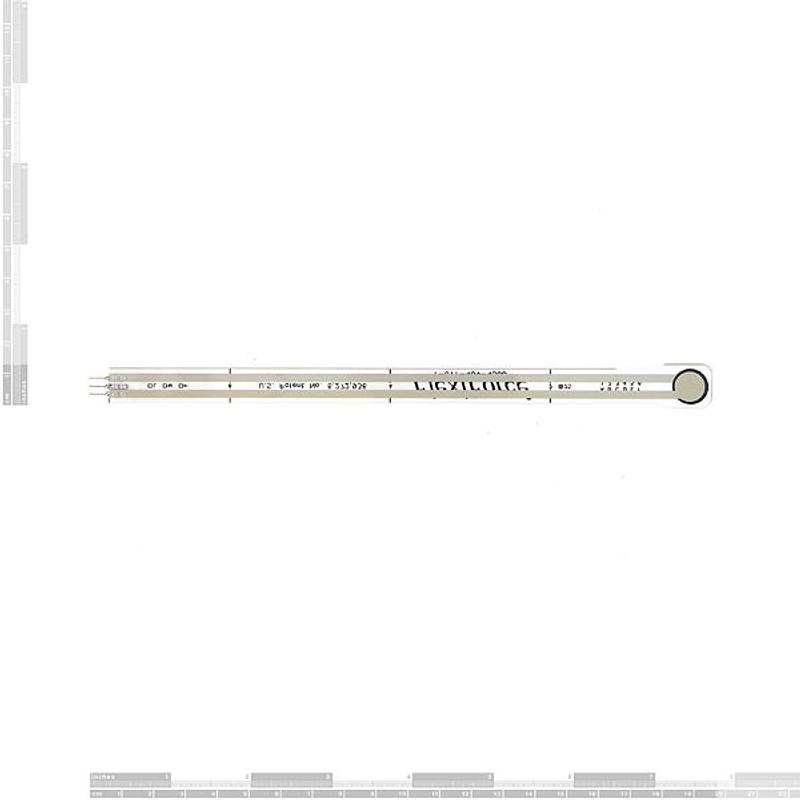

The overall length is about 8.5". Sensor comes with 0.1" spaced, reinforced, breadboard friendly connector.

This sensor comes in three flavors. This sensor ranges from 0 to 100lbs of pressure in the mega-ohm range.

Applications
  • Detect and measure a relative change in force or applied load
  • Detect and measure the rate of change in force
  • Identify force thresholds and trigger appropriate action
  • Detect contact and/or touch

Specification
  • Greater flexibility
  • Response time: < 5 ms
  • 0-100lbs(440 N) Detect range
  • Connector 3-pin Male Square Pin
  • Sensing Area 9.53mm diameter
  • Max working current:2.5mA
  • Size:216x14mm

Documents
Shipping List
  • Flexiforce Pressure Sensor - 100lbs  x1
