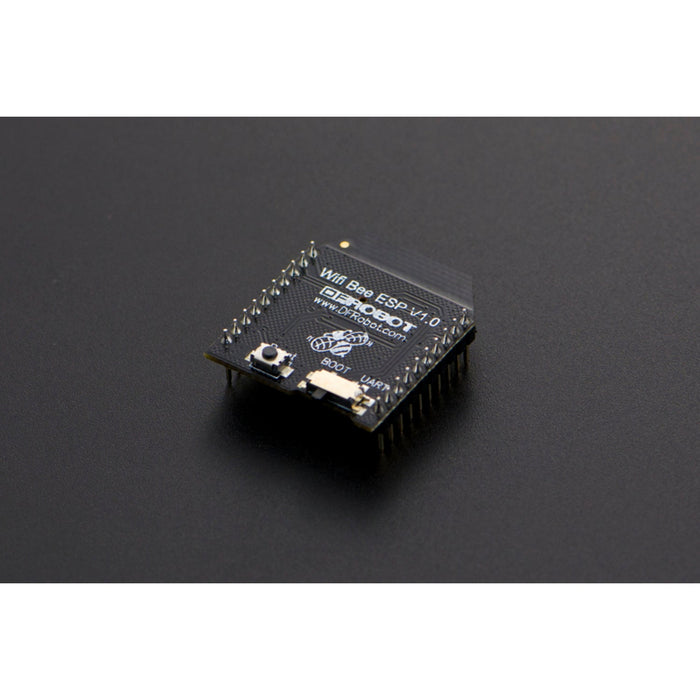

ESP8266 Wifi Bee (Arduino Compatible)
Wifi Bee-ESP8266 is a Serial-to-WIFI module using XBEE design in a compact size, compatible with XBEE slot, applicable to a variety of 3.3V single-chip...
Get notified when back in stock
Wifi Bee-ESP8266 is a Serial-to-WIFI module using XBEE design in a compact size, compatible with XBEE slot, applicable to a variety of 3.3V single-chip system. It can be used for Arduino, wireless data transfer, remote control. On-board switch can be used to easily select the Startup module or Upgrade firmware. ESP8266 arduino module has a powerful on-chip processing and storage capacity, built-in 32-bit processor, built-in Lwip protocol stack. Support AP+STA mode co-exist. And you could configure various parameters via AT commands. Note: Since the STA mode which support the Server mode is not stable, we are working on that you could refer to the ESP8266 manual book to try.
SPECIFICATIONS
- Wi-Fi Direct (P2P),soft-AP
- Built-in TCP/IP protocol stack
- Built-in low-power 32-bit CPU: can work as an application processor
- Support WPA WPA2/WPA2-PSK encryption
- Support UART interface
- Support for TTL serial port to wireless application
- Working voltage: 3.3V power <240Ma
- Wireless standard: IEEE802.11b/g/n
- Frequency: 2.4 GHz
DOCUMENTS
- WIKI (SKU:TEL0092 WiFi Bee-ESP8266 Wirelss module)
- ESP8266 Arduino library
- AT Commend Instruction
- ESP8266 Firmware and Tools
- Official Forum
SHIPPING LIST
- Wifi Bee-ESP8266 x1
Jargon buster
Plain-language definitions for the technical terms used above.
- Shield
- An add-on board that plugs into a main controller board to give it extra features such as sensing, motor control or communication. Knowing a product supports shields helps you judge whether it can connect neatly into an existing maker-board setup.
- TTL serial
- A simple serial data connection that uses microcontroller logic-level voltages (typically 3.3 V or 5 V) rather than the higher, inverted voltages of computer RS-232. When a device lists TTL serial, it can usually wire straight to a microcontroller's UART pins or to a USB-to-TTL serial adapter, but it needs a level converter before connecting to a true RS-232 port.
- UART
- UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.
