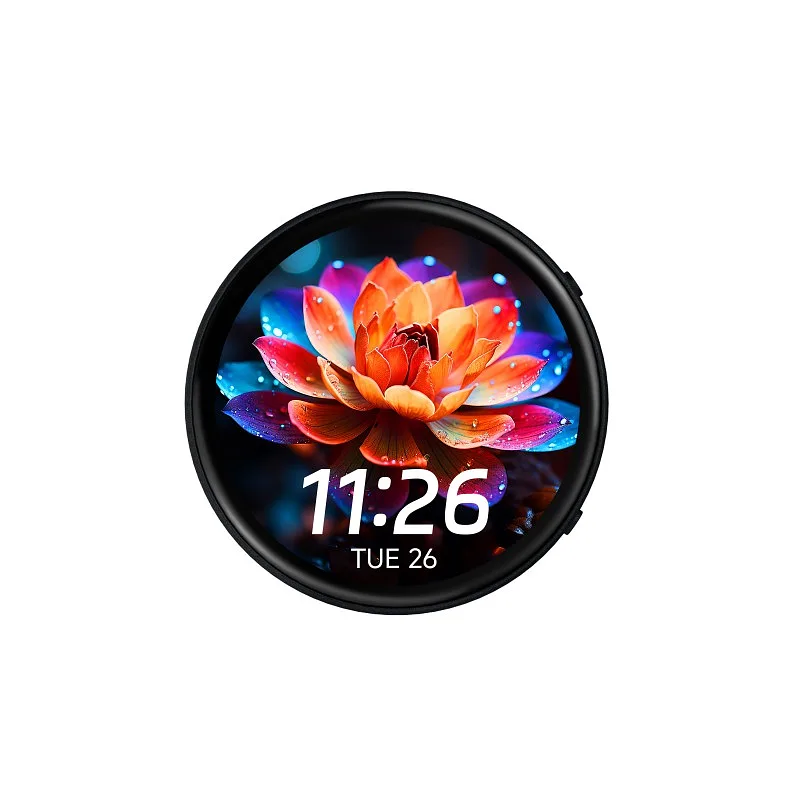

ESP32-S3 1.75inch AMOLED Round Touch Display Development Board - with Case
Build compact connected projects around a bright round touchscreen with this Waveshare ESP32-S3 development board. It pairs an ESP32-S3R8 processor with a 1....
Get notified when back in stock
Build compact connected projects around a bright round touchscreen with this Waveshare ESP32-S3 development board. It pairs an ESP32-S3R8 processor with a 1.75-inch AMOLED touch display, making it a strong starting point for wearables, IoT dashboards and small human-machine interfaces.
The board brings together wireless connectivity, onboard storage options, motion sensing, real-time clock support, power management and dual digital microphones. The display uses QSPI, while touch is handled over I2C, giving you a practical platform for responsive visual and touch-based prototypes.
This version is supplied with a protective case, making it easier to handle on the bench or fit into an early prototype. Waveshare provides comprehensive SDKs and an extensive resource library via its wiki to help you get started.
Features:
- Powerful Processor: 32-bit LX7 dual-core processor with up to 240MHz main frequency offers robust performance for complex applications.
- Gorgeous Display: 1.75-inch round AMOLED touch display.
- Gorgeous Display: Vibrant colours for an exceptional visual experience.
- Gorgeous Display: 466×466 pixels resolution.
- Seamless Connectivity: QSPI interface.
- Seamless Connectivity: Bluetooth 5 (LE).
- Seamless Connectivity: Wi-Fi connectivity for wireless interactions.
- Immersive Audio: Dual digital microphone arrays.
- Immersive Audio: Noise reduction.
- Immersive Audio: Echo cancellation.
- Versatile Features: 6-axis sensor.
- Versatile Features: RTC chip.
- Versatile Features: Onboard power management.
- Extensive Storage: Onboard 8MB PSRAM.
- Extensive Storage: 16MB external Flash memory.
- Extensive Storage: TF card slot for additional capacity.
- Durable Construction: Available in standard and GPS versions.
- Durable Construction: Optional protective case for extra durability.
- Perfect For: Smart wearable devices.
- Perfect For: IoT projects with human-computer interaction.
- Perfect For: Prototype development for consumer electronics.
- Perfect For: Educational tools for learning embedded systems.
Specifications:
- Processor: ESP32-S3R8 Xtensa 32-bit LX7
- Display: 1.75" AMOLED, 466×466 pixels, touch-enabled
- Interfaces: QSPI for display, I2C for touch, onboard TF card slot, USB Type-C
- Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash
- Sensors: QMI8658 6-axis IMU (3-axis accelerometer, 3-axis gyroscope), PCF85063 RTC chip
- Audio: Onboard dual digital microphones with echo cancellation
- Power Management: AXP2101 IC, supports various voltage outputs and battery management
- Dimensions: Compact and portable design for flexible deployment
A capable choice for compact ESP32-S3 projects where a round touch display, wireless networking, onboard audio and motion sensing are useful.
Jargon buster
Plain-language definitions for the technical terms used above.
- ESP32
- ESP32 is a family of low-cost microcontroller chips and modules from Espressif with built-in WiFi and Bluetooth. They support programmable firmware and over-the-air updates, and are commonly programmed with toolchains such as the Arduino core and ESP-IDF.
- Flash memory
- Flash memory is non-volatile memory that retains stored data even when power is removed, and can be erased and rewritten in blocks. It lets data such as firmware, settings or saved records persist across power cycles.
- GPS
- The US satellite navigation system used by GNSS receivers to calculate position and time. Support for GPS is important because it is widely available and often used together with other constellations for more reliable positioning.
- Gyroscope
- A gyroscope measures rotation, such as how fast a board is turning around its X, Y, and Z axes. This matters for projects like gesture controls, balancing robots, and motion tracking where tilt or rotation changes need to be detected.
- I2C
- I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
- IMU
- An IMU (Inertial Measurement Unit) combines motion sensors, typically an accelerometer and gyroscope and sometimes a magnetometer, to measure movement and orientation. It can sense motion, tilt, vibration, rotation, and changes in direction, which is useful for tasks such as navigation, stabilisation, gesture detection, and asset tracking.
- IoT
- Short for Internet of Things, meaning physical devices that connect to networks or the internet to send data or be controlled remotely. It matters if you want projects such as connected sensors, remote controls or classroom data-logging activities.
- RTC
- A Real-Time Clock keeps track of time even when the main processor is asleep or powered down, usually with a small backup battery. It matters for data logging and tracking projects that need accurate timestamps.
- SRAM
- Fast temporary memory used by a processor while a program is running. More SRAM helps with projects that handle larger data buffers, networking, displays, or more complex code.
- USB Type-C
- USB Type-C is a small, reversible USB connector used for power, data and sometimes video on many modern devices. The connector itself does not guarantee a particular speed or voltage, so check the supported USB version, data rate and whether it carries more than 5V via USB Power Delivery.
