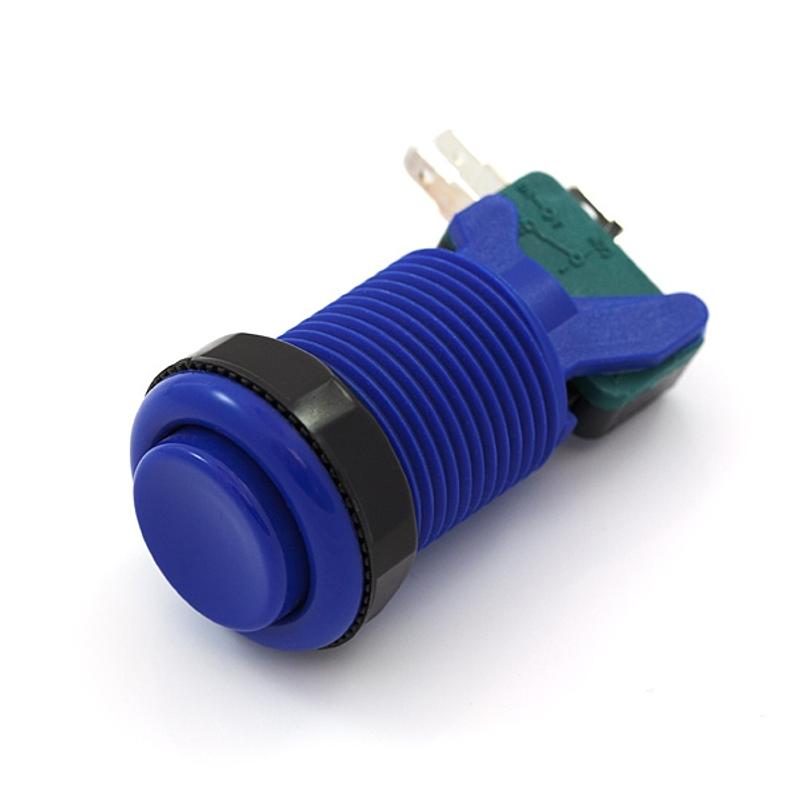

Concave Button - Blue
This is a 35mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a gre...
Get notified when back in stock
This is a 35mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a great tactile, ‘clicky’ feel.
Features:
- Concave plunger design
- Durable nylon material
- Microswitch: max 3A @ 120 VAC
- Microswitch reliability tested to 10,000,000 cycles
- Includes 3 terminal microswitch
- Net weight: 25g
Dimensions:
- Cap diameter: 35mm
- Overall height: 65mm
- Mounting hole: 1 1/8th inch paddle bit (1.125" / 28mm)
Jargon buster
Plain-language definitions for the technical terms used above.
- VAC
- Volts AC, a way of specifying voltage for alternating-current mains power rather than direct-current electronics power. When a power supply lists an input such as 100–240 VAC, it indicates the range of wall-power voltages it can accept.
