Coin Cell Battery Holder - 20mm (SMD)
Now for all of your coin cell battery surface mount needs, the 20mm SMD Coin Cell Holder. This holder fits our 20mm Lithium Ion coin cell battery and holds t...
Get notified when back in stock

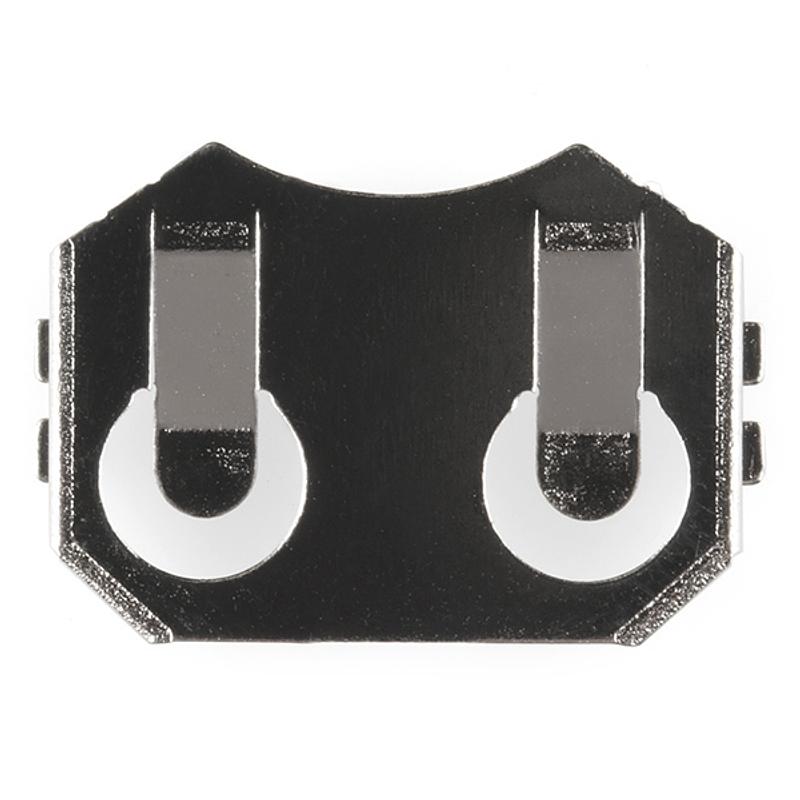

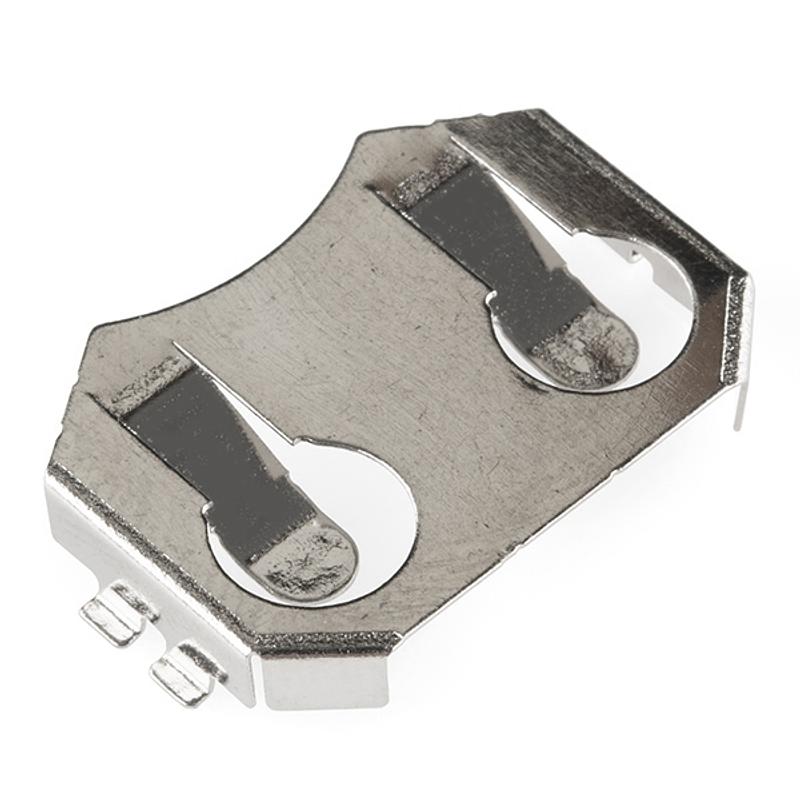

Now for all of your coin cell battery surface mount needs, the 20mm SMD Coin Cell Holder. This holder fits our 20mm Lithium Ion coin cell battery and holds the battery in place with friction. The metal housing connects to the positive (+) side of the battery and the PCB pad underneath is connected to the negative (-) side.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
