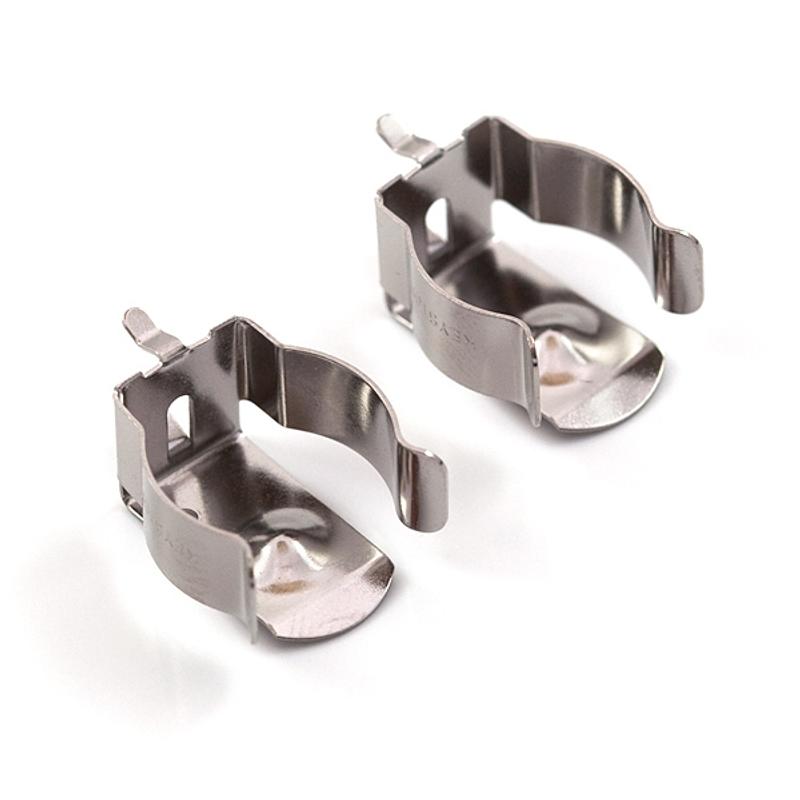

Battery Holder - 1xAA (PTH)
A PCB-mount clip designed to hold a single AA battery. Ideal for small, low-power applications that need a compact battery solution. Sold individually — use ...
Get notified when back in stock
A PCB-mount clip designed to hold a single AA battery. Ideal for small, low-power applications that need a compact battery solution. Sold individually — use two clips for a complete AA battery holder.
Key Features
- PCB Mount (PTH) – Through-hole solder pins for secure board mounting
- Single AA Cell – Holds one standard AA battery
- Compact Design – Suitable for space-constrained projects
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- PTH
- Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
