Adafruit PCM5102 I2S DAC with Line Level Output - 112dB SNR
· MPN: ADA6250
The Adafruit PCM5102 I2S DAC converts digital I2S audio into excellent stereo line-level output through a 3.5mm jack. With an impressive 112dB signal-to-nois...
Get notified when back in stock
The Adafruit PCM5102 I2S DAC converts digital I2S audio into excellent stereo line-level output through a 3.5mm jack. With an impressive 112dB signal-to-noise ratio and no MCLK or I2C configuration required, simply pipe I2S data in and get audiophile-grade analogue audio out.

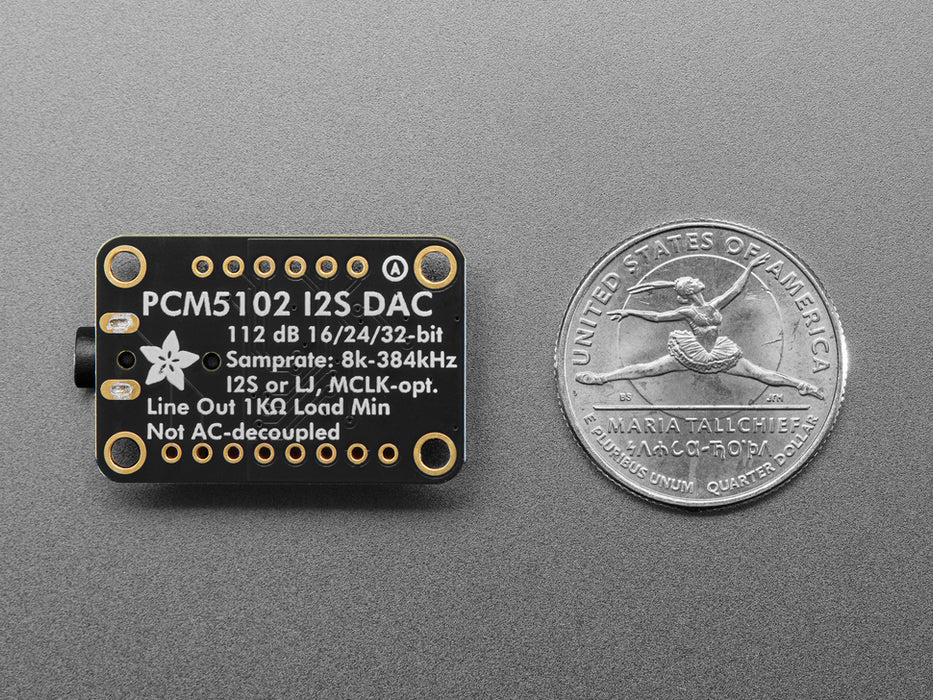

The PCM5102 accepts 16, 24, or 32-bit audio and automatically determines the correct format from the WSEL/BCLK ratio. It generates its own master clock internally from the bit clock, so no MCLK connection is needed (though an optional MCLK input is available). Audio output is line-level, centred on ground and not AC-coupled — suitable for amplifiers and powered speakers with 1K ohm or greater input impedance.
Key Features
- 112dB SNR / Dynamic Range – Excellent stereo audio output from the PCM5102 chip

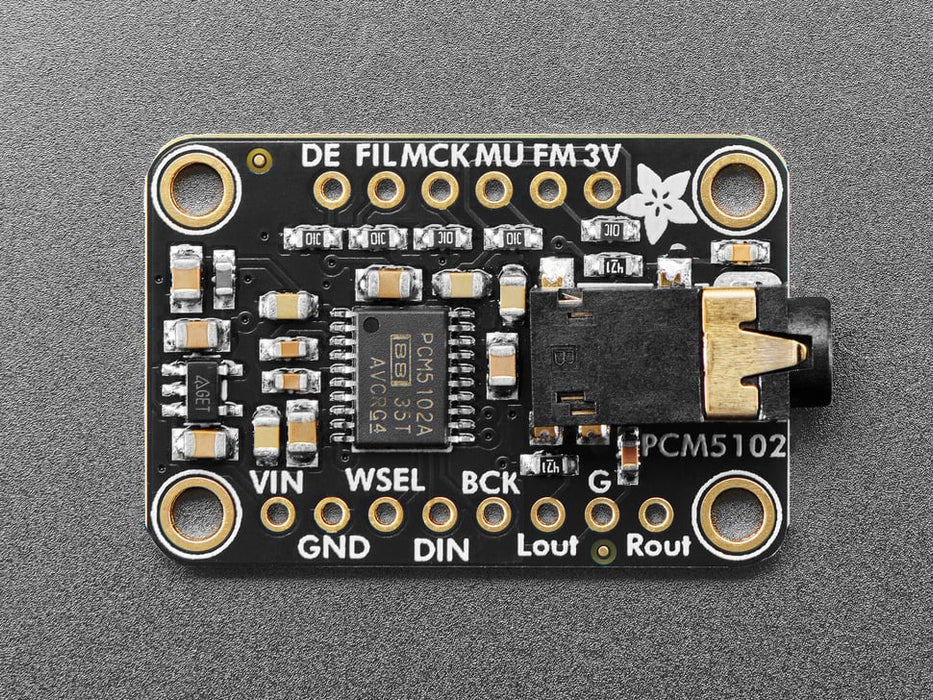

- I2S Input – Just BCLK, WSEL, and DIN (3.3V logic) — no MCLK or I2C configuration needed
- 16/24/32-bit Audio – Automatically detects bit depth from clock ratio

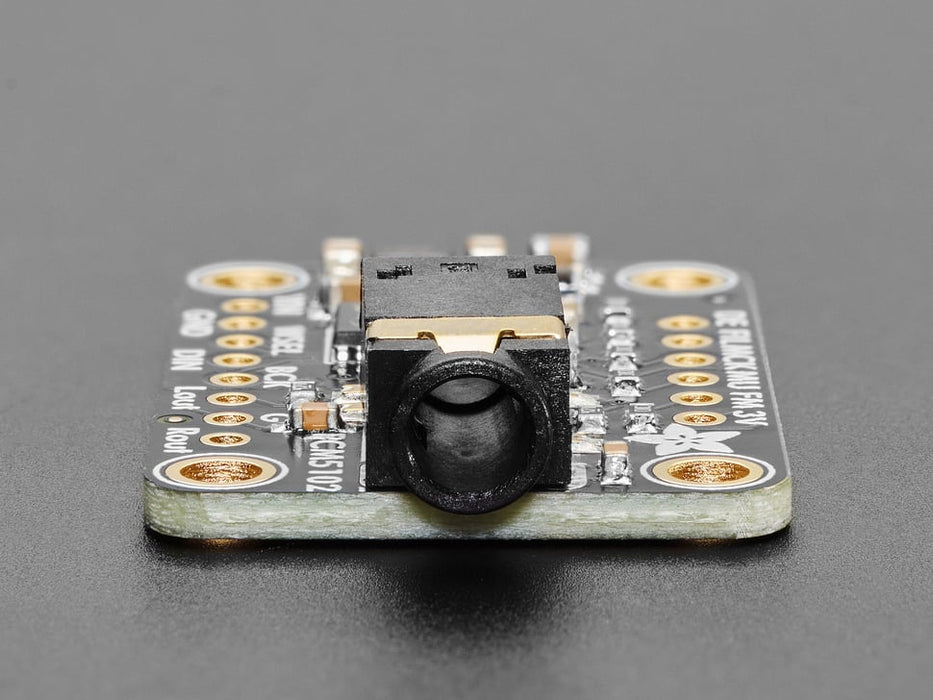

- 3.5mm Line-Level Output – Plus breakout pads for direct wiring
- 3–5V Power – Wide supply voltage range
- I2S or Left-Justified – Toggle the Format pin to switch modes
- Configurable Options – Filter mode (normal/low-latency), mute, and 44.1kHz de-emphasis via breakout pads
Ideal For
- High-fidelity audio output from I2S-capable microcontrollers and SBCs
- WAV and MP3 playback projects demanding clean stereo DAC performance
- Audio prototyping on breadboards with the included header
- Driving powered speakers or amplifier inputs from digital audio sources
Also Consider
- PCM5100 I2S DAC (100dB SNR) – Pin-compatible, lower-cost alternative
Package Contents
- 1× PCM5102 I2S Stereo DAC Breakout

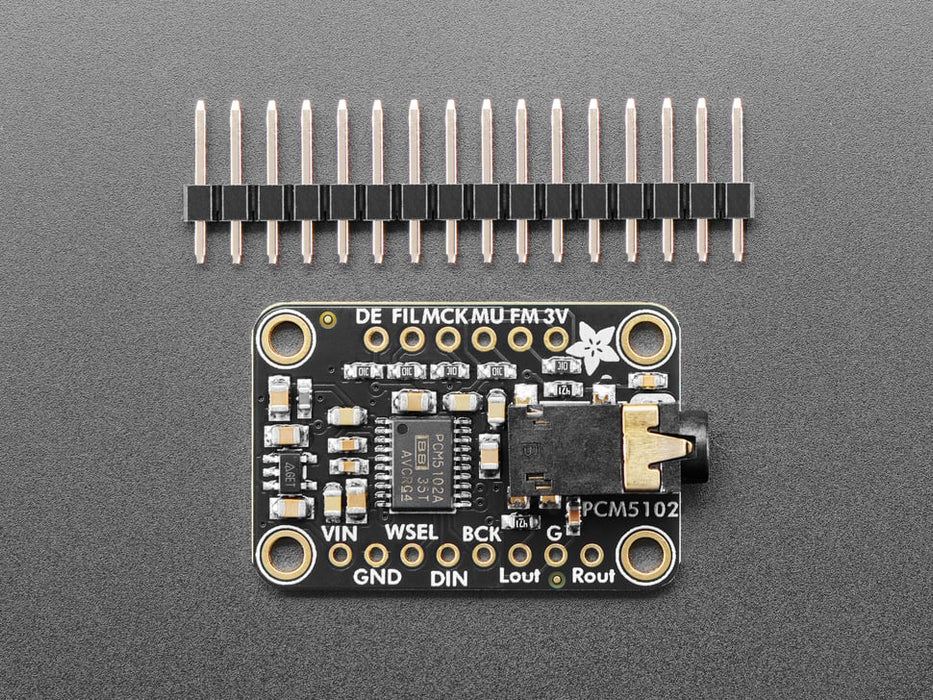

- 1× Header strip for breadboard use
