NeoPixel RGBW LED Strip - White PCB, 30 LED/m, 1m
· MPN: ADA2836
Add individually addressable red, green, blue and white pixels to costumes, signs, props and ambient lighting projects. Each NeoPixel contains separate RGB a...
Get notified when back in stock

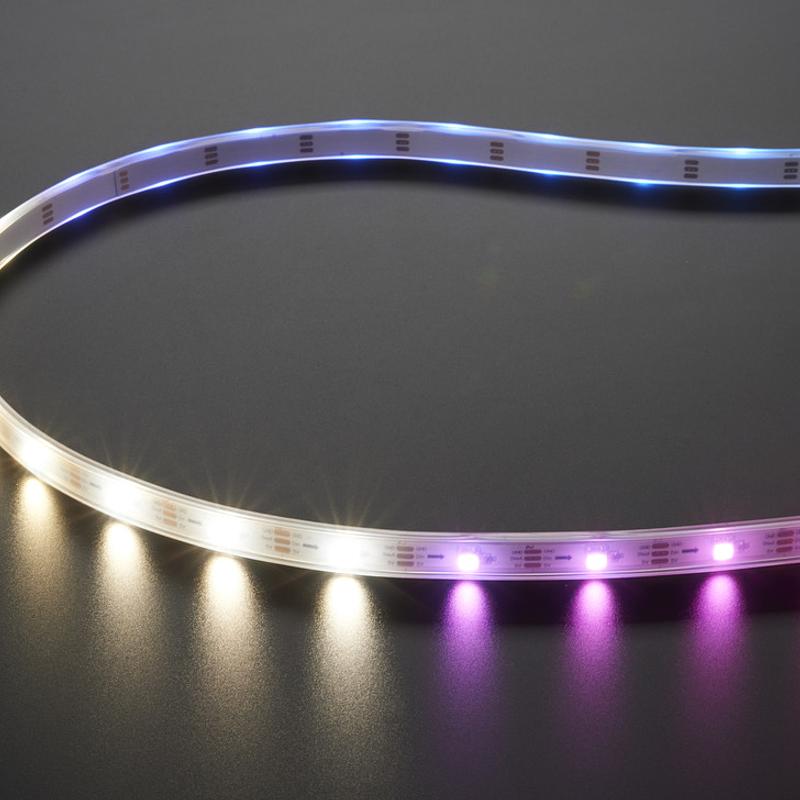

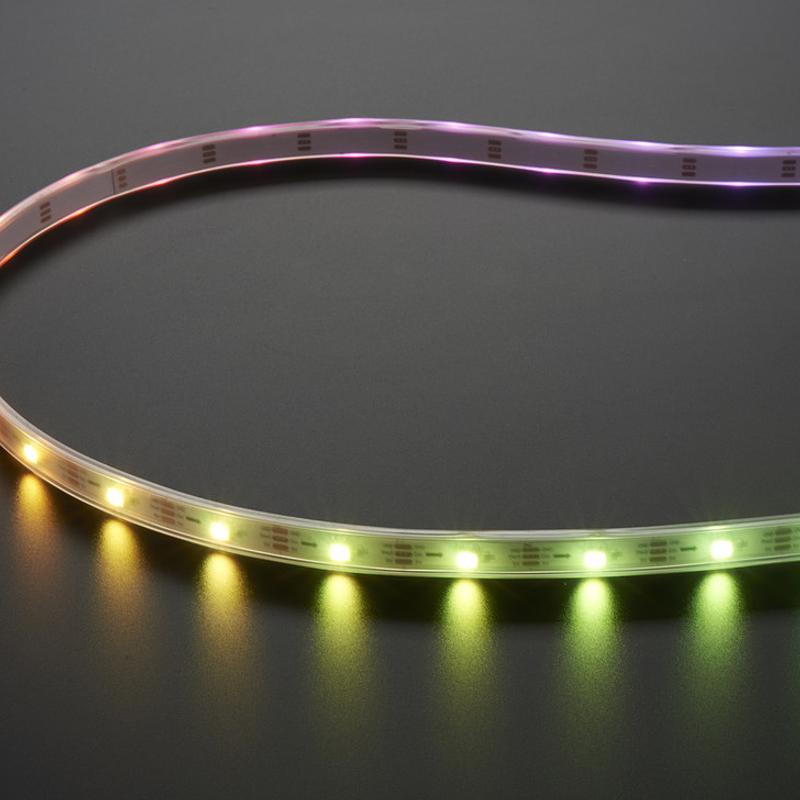

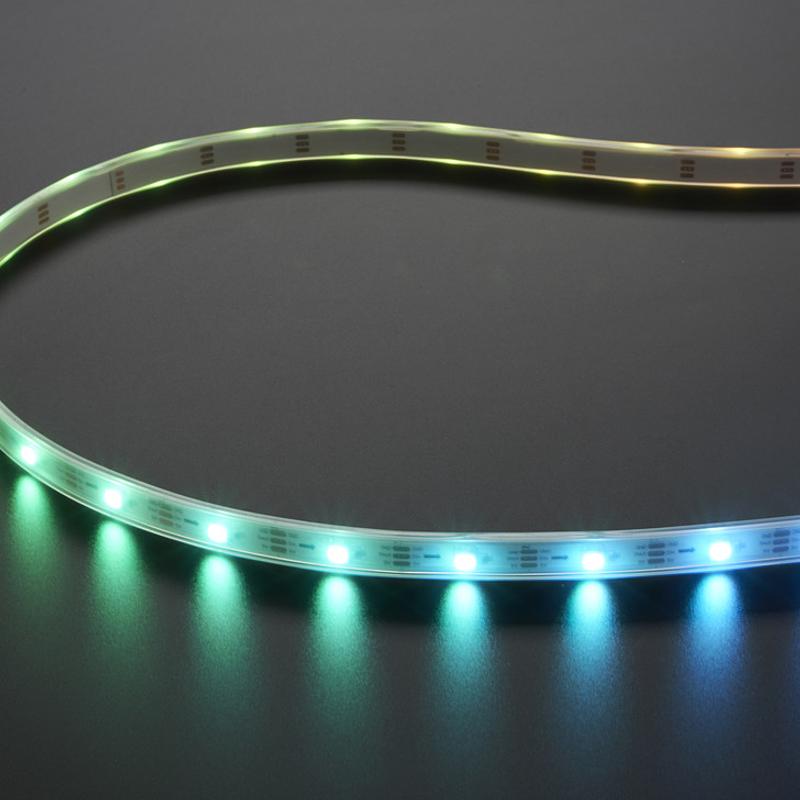

Add individually addressable red, green, blue and white pixels to costumes, signs, props and ambient lighting projects. Each NeoPixel contains separate RGB and white emitters, so you can create colourful effects as well as cleaner white highlights from the same flexible strip.
This version has a white PCB and white casing, with 30 LEDs per metre. The strip is made from flexible PCB material with weatherproof sheathing, and it can be cut at the marked cut-lines or joined to other strips if your power supply can handle the current.
NeoPixels use a timing-sensitive 800 KHz data protocol and need only one digital output pin for control. The PWM is handled inside each LED, so once the colour is set the strip continues driving the LEDs without constant updates from your microcontroller.
Adafruit provides NeoPixel library support for RGBW strips, along with tutorial material, wiring guidance, power calculations and example code for boards including Arduino UNO/Duemilanove/Diecimila, Flora/Micro/Leonardo, Trinket/Gemma, Arduino Due and Arduino Mega/ADK. Make sure your library supports RGBW NeoPixels; a plain RGB NeoPixel library will give incorrect results.
Specifications:
- LED density: 30 LED/m
- Strip length: 1m
- PCB colour: White
- Casing colour: White
- LED channels: Red, green, blue and white
- White LED: White LED with a yellow phosphor
- PWM precision: 8-bit PWM per channel
- Colour depth: 8 x 4 channels = 32-bit colour overall
- Data protocol: 800 KHz
- LED PWM rate: ~400 Hz
- LED package size: 5050-sized LEDs
- Microcontroller: Embedded microcontroller inside the LED
- Control method: Shift-registers chained up down the strip
- Required data pins: Only 1 digital output pin
- PCB material: Flexible PCB material
- Sheathing: Weatherproof sheathing
- Cut-line spacing: Every 0.65"/1.7cm
- Cut segment: 1 LED each

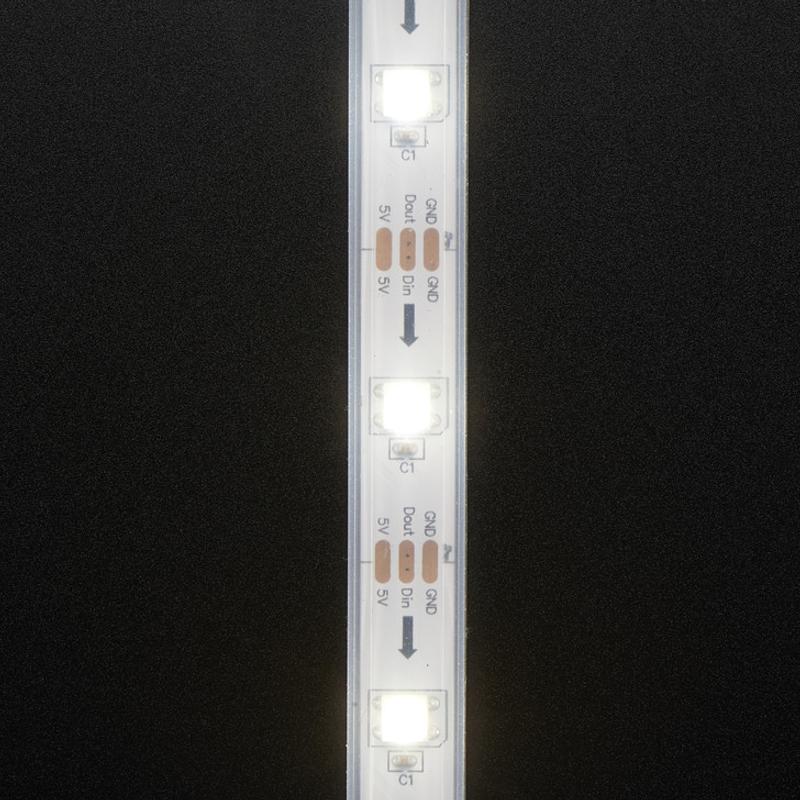

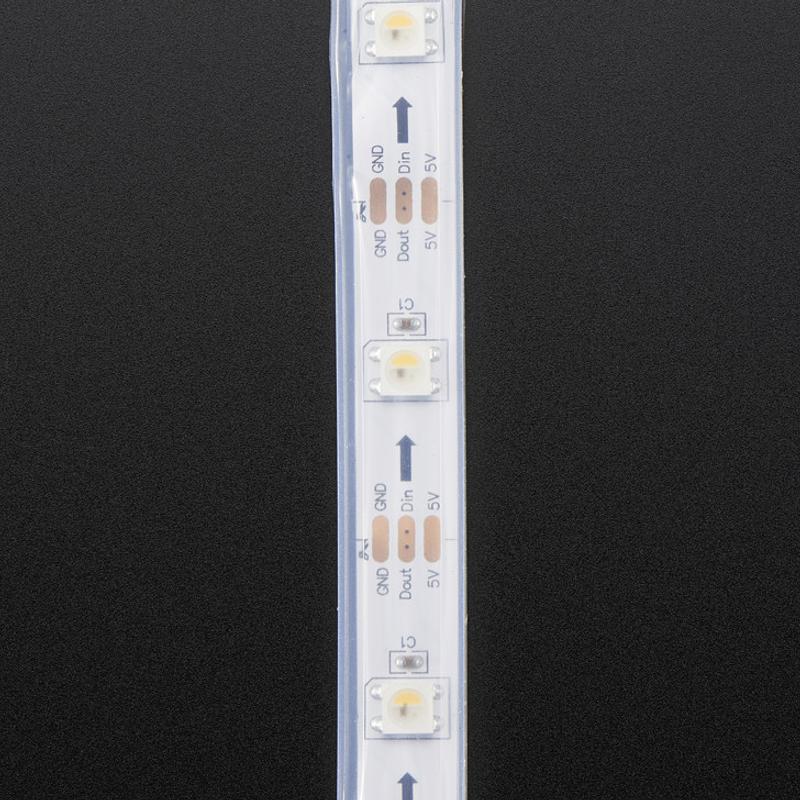

- Solder pads: 0.1" copper pads
- Required power supply: 5V DC
- Maximum voltage warning: Do not use higher than 6V
- Suggested supply for 1 metre: 5V/2A supply, depending on use
- Suggested supply for up to 4 metres: 5V/10A supply, depending on use
- Full reel quantity: 5 meters at a time
- Full reel connectors: Two connectors
- Cut piece quantity: Less than 5m
- Cut piece connector note: May or may not have a connector on it
For wiring, JST SM plug and receptacle cables are suggested, along with a suitable 2.1mm DC jack if you want to connect a wall adapter for power.
