9 Pin Female Serial Connector - PCB Mount

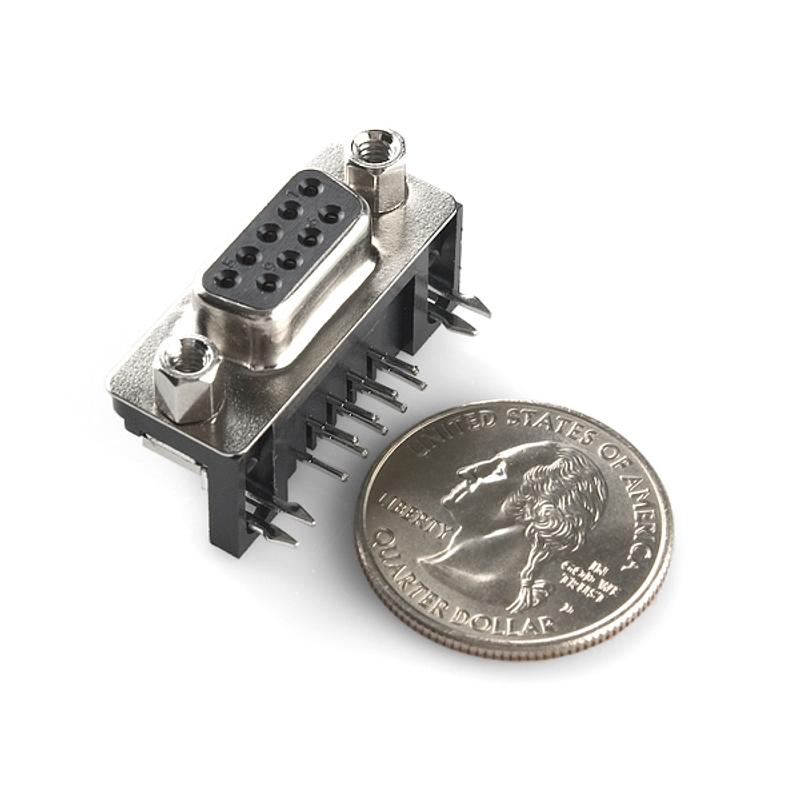

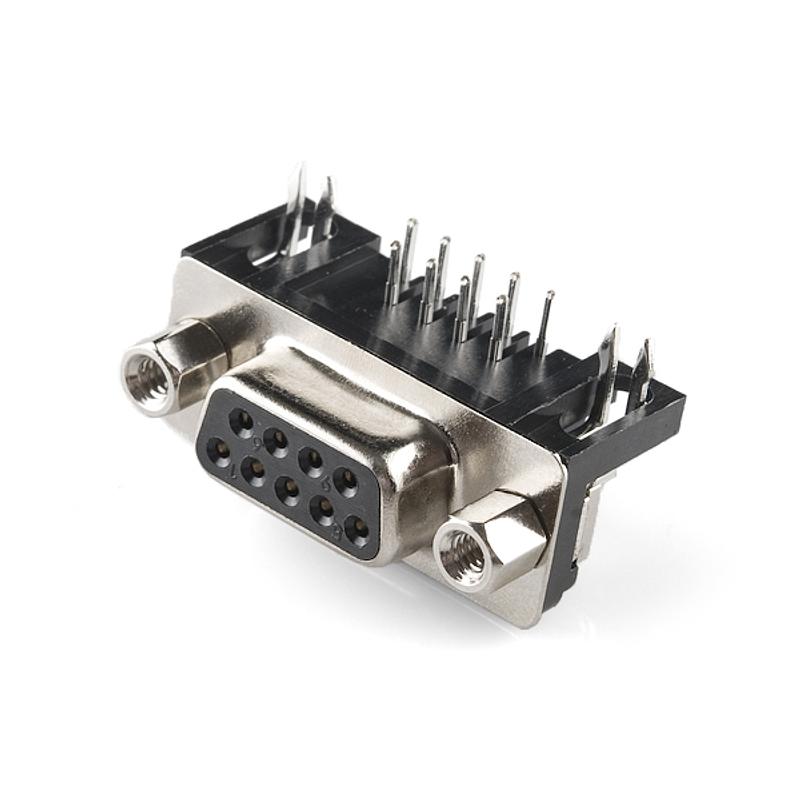

A DB9 female serial connector in a right-angle PCB-mount configuration (0.318" style). Ideal for adding a standard RS-232 serial port to custom PCB designs, ...
A DB9 female serial connector in a right-angle PCB-mount configuration (0.318" style). Ideal for adding a standard RS-232 serial port to custom PCB designs, breakout boards, and embedded systems.
Key Features
- DB9 Female – Standard 9-pin D-sub connector
- Right-Angle PCB Mount – Through-hole solder pins for horizontal board mounting
- 0.318" Style – Standard footprint for DB9 connectors
Ideal For
- RS-232 serial communication interfaces
- Custom PCB designs and breakout boards
- Embedded systems requiring serial connectivity
Package Contents
- 1× DB9 Female Right-Angle PCB-Mount Connector
