DFRobot
5V Ultra-Slim Red LED Strip - 60 LEDs/m, 1m
· MPN: FIT0837
Add red decorative lighting to very tight spaces with this ultra-narrow flexible LED strip from DFRobot. At only 2.5mm wide and 1mm thick, it is designed for...
Get notified when back in stock

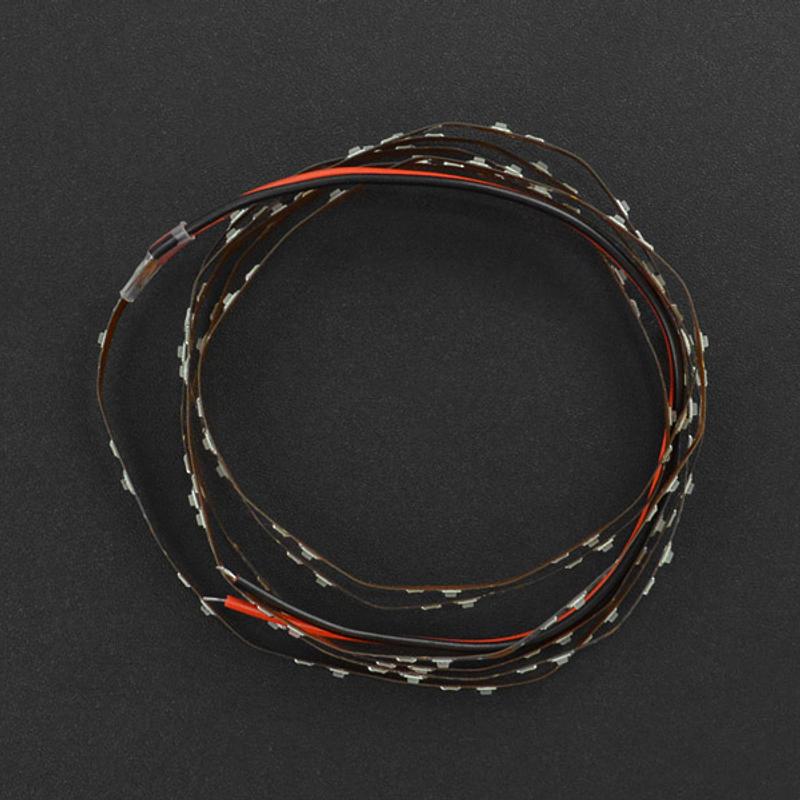

Add red decorative lighting to very tight spaces with this ultra-narrow flexible LED strip from DFRobot. At only 2.5mm wide and 1mm thick, it is designed for miniature models, compact electronics, detailed decorative layouts and other builds where standard LED strips are too bulky.
The 1-metre strip uses 60 SMD 0805 LEDs and runs from a 5V supply, making it suitable for maker projects using platforms such as FireBeetle and Arduino. It can be used for interactive lighting systems, robotics builds, DIY smart cars, light boards and creative installations.

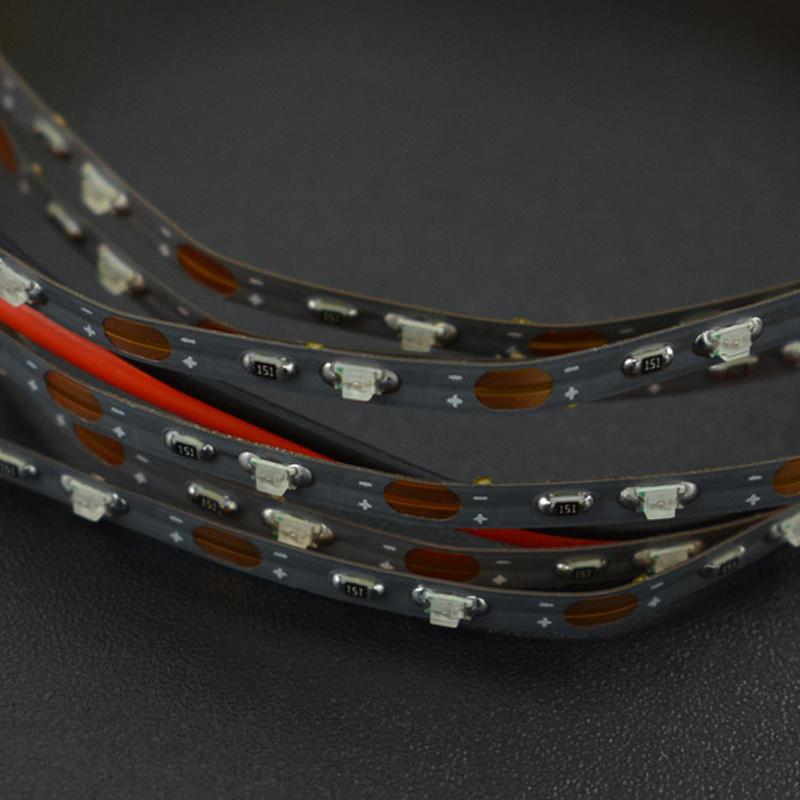

Each LED segment can be cut individually, so you can trim the strip to suit your layout. The flexible PCB can be gently bent around corners or curved surfaces, helping you fit lighting into grooves, thin frames, model structures and small mechanical assemblies. One 5V Flexible LED Strip (60 LEDs) - Red is included.
Features:
- Ultra-slim structure: 2.5mm width and 1mm thickness
- Each LED segment can be cut individually for custom length
- High LED density with 60 LEDs per meter
Specifications:
- Rated Voltage: 5V
- Rated Power: Max 4W
- LED Quantity: 60 LEDs per meter
- Length: 1m (3.28ft.)
- Size: 2.5mm wide and 1mm thick
- LED Type: SMD 0805
- Luminous Colour: Red
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
- SMD 0805
- SMD 0805 is a small surface-mount package size (roughly 2.0 by 1.25 mm, from the imperial 0.08 by 0.05 inch code) used for many parts such as resistors, capacitors and LEDs that solder directly onto a board rather than through holes. When a part lists 0805, expect a compact component that suits dense or narrow layouts but is fiddly to hand-solder without fine tools.
