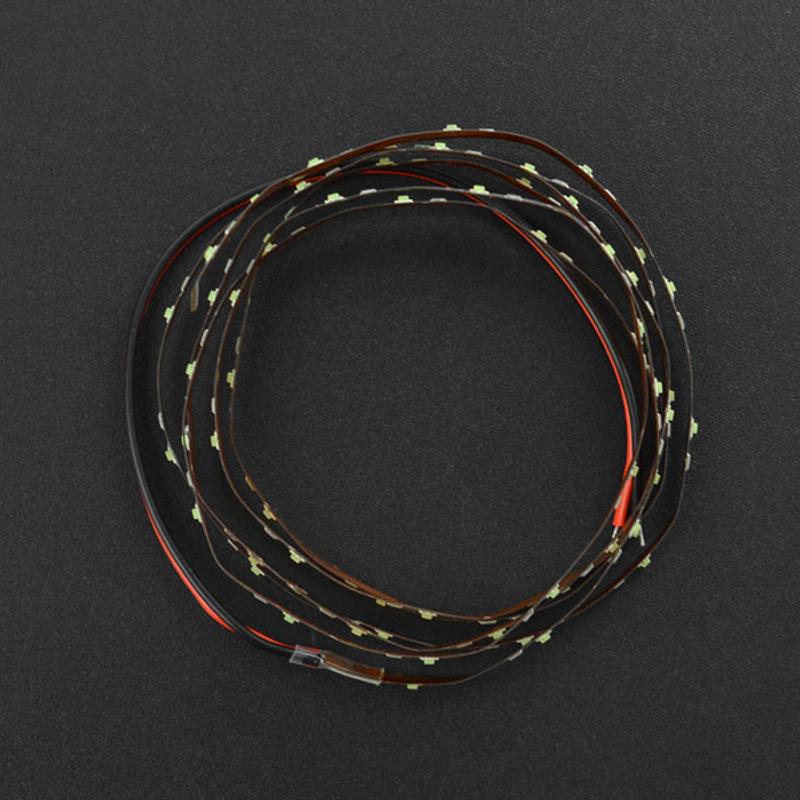

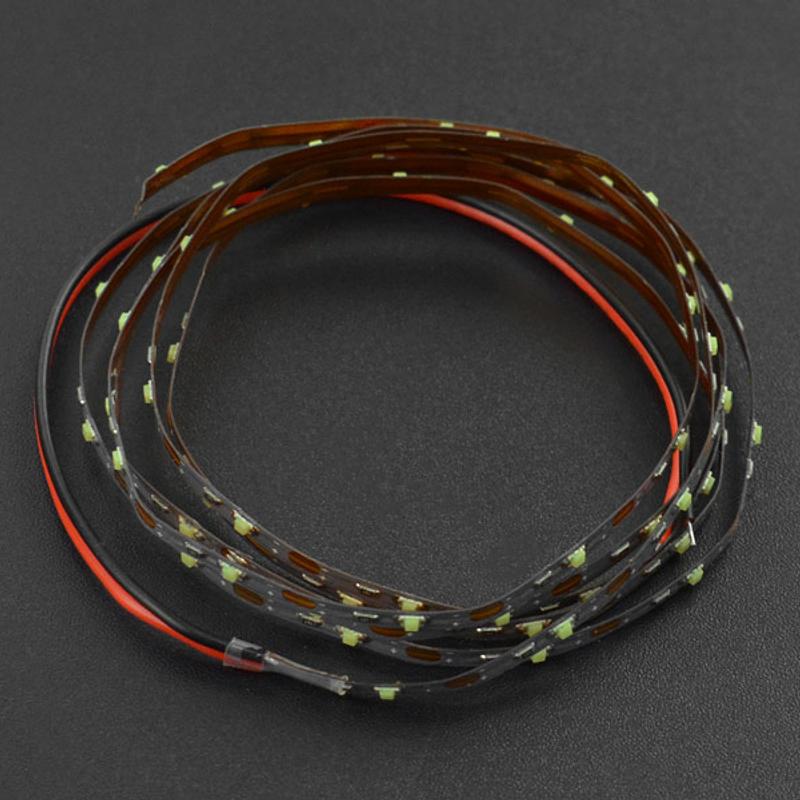

5V Flexible LED Strip - Ice Blue, 1m (60 LEDs/m)
· MPN: FIT0841
This ultra-narrow flexible LED strip is made for compact lighting jobs where standard LED strips are too wide. At just 2.5mm wide and 1mm thick, it can be ro...
Get notified when back in stock
This ultra-narrow flexible LED strip is made for compact lighting jobs where standard LED strips are too wide. At just 2.5mm wide and 1mm thick, it can be routed along edges, inside model structures, or within small electronics enclosures.

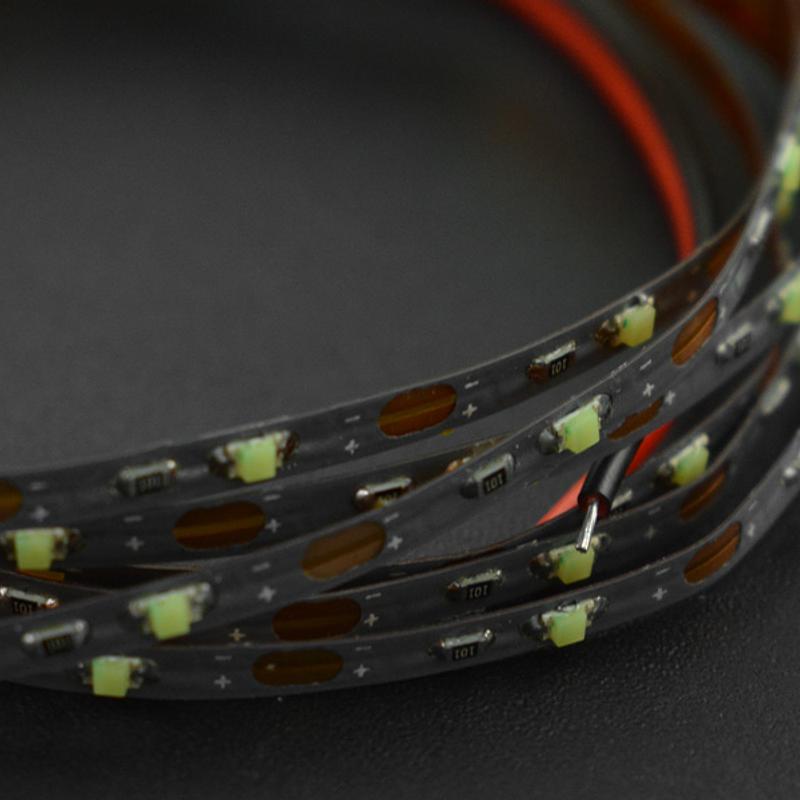

The strip runs from a 5V supply and uses densely spaced SMD 0805 LEDs to produce an ice-blue glow. It is suitable for decorative model lighting, sand table displays, DIY light boards, smart toys, robotics lighting effects, and other low-voltage maker projects.
It can be cut segment by segment to suit custom lengths, making it easier to fit into prototypes, miniature buildings, panels, and tight installations. It is compatible with controllers such as FireBeetle and Arduino, and the package includes one 1m strip.
Features:
- Ultra-slim profile: only 2.5mm wide and 1mm thick
- Segment-cuttable structure for custom strip lengths
- High density with 60 LEDs per meter
Specifications:
- Rated Voltage: 5V
- Rated Power: Max 4W
- LED Quantity: 60 LEDs per meter
- Length: 1m (3.28ft.)
- Size: 2.5mm wide and 1mm thick
- LED Type: SMD 0805
- Luminous Color: Ice Blue
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
- SMD 0805
- SMD 0805 is a small surface-mount package size (roughly 2.0 by 1.25 mm, from the imperial 0.08 by 0.05 inch code) used for many parts such as resistors, capacitors and LEDs that solder directly onto a board rather than through holes. When a part lists 0805, expect a compact component that suits dense or narrow layouts but is fiddly to hand-solder without fine tools.
