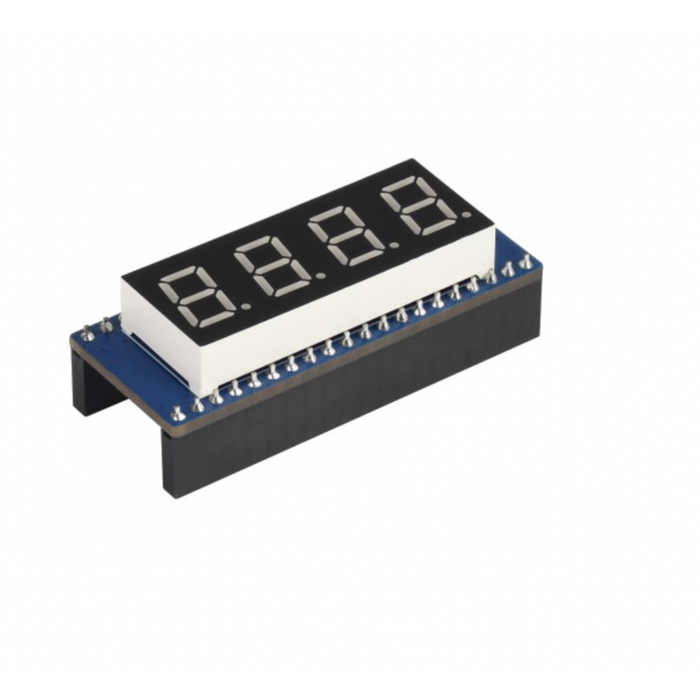

4-digit 8-segment Display Module for Raspberry Pi Pico, SPI-compatible
A compact 4-digit 8-segment red LED display module designed for the Raspberry Pi Pico. It plugs directly onto the Pico via an onboard female pin header and c...
Get notified when back in stock
A compact 4-digit 8-segment red LED display module designed for the Raspberry Pi Pico. It plugs directly onto the Pico via an onboard female pin header and communicates over an SPI-compatible interface driven by an embedded 74HC595 shift register. The module comes with C/C++ and MicroPython demo code to get started quickly.
Key Features
- Plug-and-Play with Pico – Standard Raspberry Pi Pico header for direct attachment
- SPI-Compatible Interface – Easy to drive with minimal GPIO usage
- 74HC595 Driver – Onboard shift register handles all segment driving
- Demo Code Included – C/C++ and MicroPython examples provided
- 0.4-Inch Red LED Digits – Clear, bright numeric display
Specifications
- Operating Voltage – 5V
- Working Current – 30mA
- Display – 4 digits, 8-segment red LED (FJ4401AH)
- Digit Size – 0.4 inch
- Driver IC – 74HC595
- Interface – SPI-compatible
- Dimensions – 52 × 21mm
Ideal For
- Clocks and timers on Raspberry Pi Pico projects
- Sensor readout displays
- Counters and numeric indicators
- Learning SPI communication
Package Contents
- 1× 4-Digit 8-Segment Display Module
