2x3 Pin Shrouded Header
This 2×3 (6-pin) shrouded header with 2.54 mm (0.1″) pitch provides a keyed connection that prevents cable mishaps. The shroud ensures correct orientation wh...

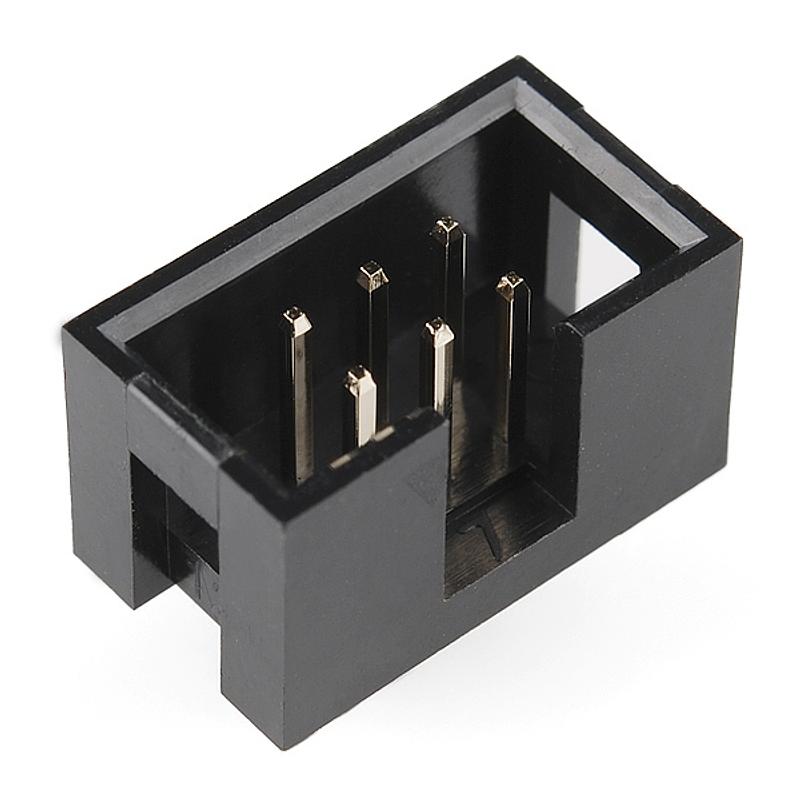

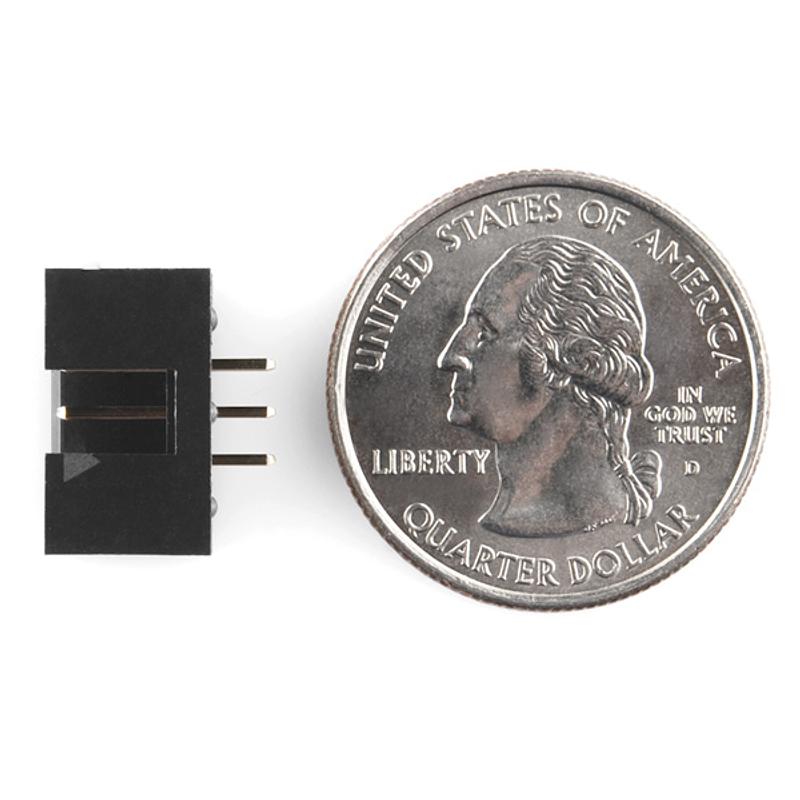

This 2×3 (6-pin) shrouded header with 2.54 mm (0.1″) pitch provides a keyed connection that prevents cable mishaps. The shroud ensures correct orientation when connecting ribbon cables or IDC connectors.
Key Features
- 6-Pin (2×3) – Dual-row header layout
- Shrouded/Keyed – Prevents incorrect cable orientation
- 2.54 mm Pitch – Standard 0.1″ pin spacing
- Through-Hole – Solder directly to your PCB
Ideal For
- AVR ISP programming connections
- Data, power, or signal connections requiring keyed orientation
- Custom PCB designs needing reliable cable attachment
Package Contents
- 1× 2×3 pin shrouded header
