2WD miniQ Robot Chassis [DF-ROB0049]

2WD miniQ Robot Chassis

2WD miniQ Robot Chassis [DF-ROB0049]

Price: $68.18
Fastest delivery: Friday, 5th November
Order before 2pm Tuesday, 26th October
Available with a lead time
(905 units can dispatch between Nov 04 to Nov 09)
Need more than 0 units?
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

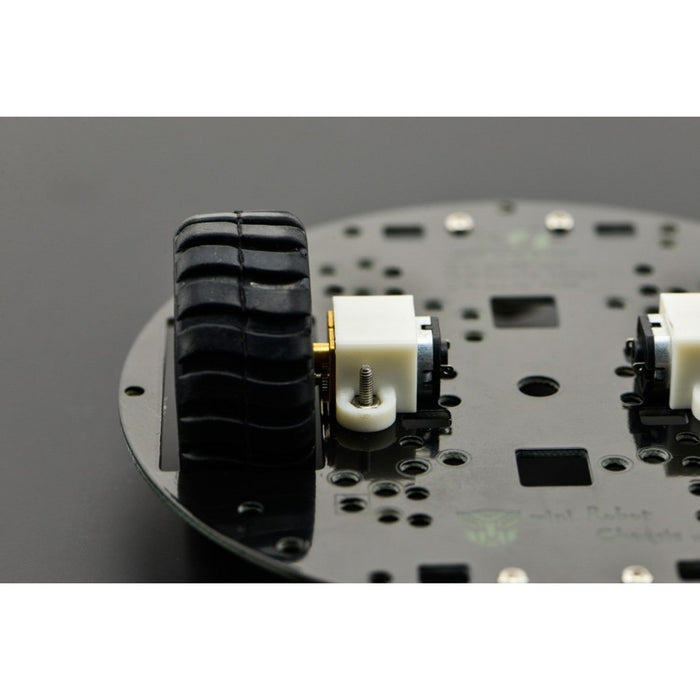

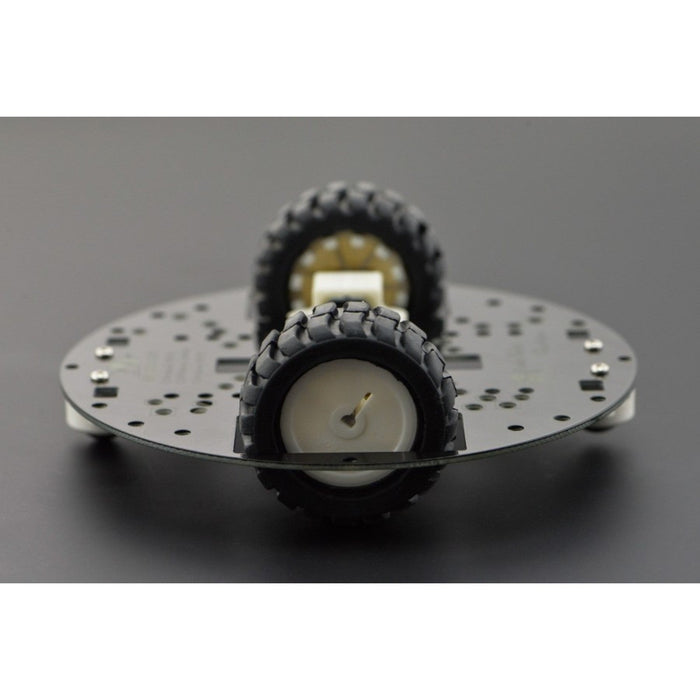

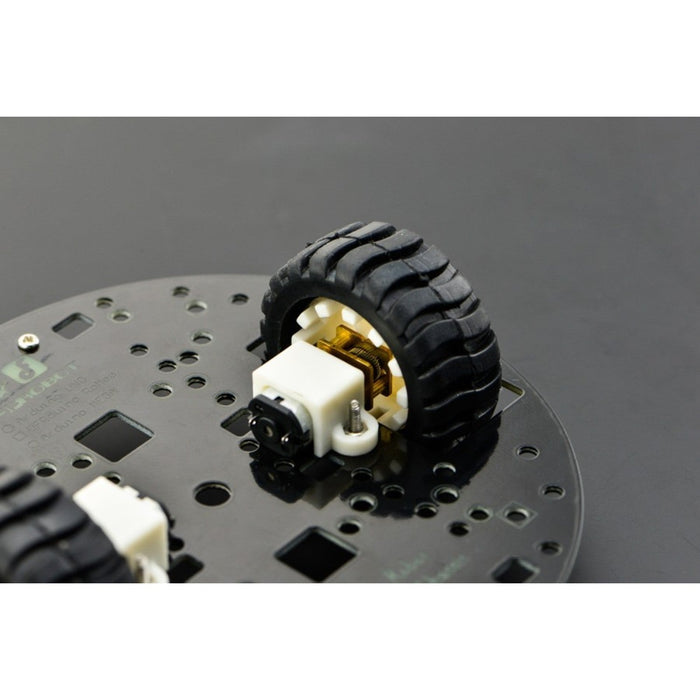

Photo of 2WD miniQ Robot Chassis Photo of 2WD miniQ Robot Chassis Photo of 2WD miniQ Robot Chassis Photo of 2WD miniQ Robot Chassis Photo of 2WD miniQ Robot Chassis Photo of 2WD miniQ Robot Chassis

Description

2WD miniQ robotic platform is especially designed for students and hobbyists. It's versatile and small, suitable for most indoors applications. It features high quality and powerful metal gear motors which make it a speedy robot. It is ideal for maze competition and educational courses, and is very easy to assemble, check out our assembly video below. Only requires 8 screws to get the job done and you can use our sample codes on our Wiki pages. If you are planning to get started building a robot, as a proof of concept, its small body and light weight makes it a great choice. This robot can easily be used and tested on a desk or small area, easily assembled and expanded. An extra set of stand off and screws might come handy. It's round shape helps when moving around objects, avoiding obstruction. The platform has convenient drillings that helps placing sensors or other screwable parts like custom designed casing.

To drive this robot, you may need the Romeo (Romeo V2- an Arduino Robot Board (Arduino Leonardo) with Motor Driver), the Romeo BLE (Arduino Robot Control Board with Bluetooth 4.0), or standard arduino with motor shield.

miniQ with Romeo
MiniQ with Motor Shield, DFRduino and expansion shield.
MiniQ 2WD Robot Chassis Quick Assembly Guide Video

SPECIFICATIONS

Chassis Specification

  • Chassis Diameter:122mm (4.8'')
  • Ground Clearance: 15mm (0.6'')
  • Wheel Diameter:42mm (1.65'')

Motor Specification

  • 13000 rpm @ No load
  • 50:1 Gear ratio
  • 260 rpm @ 6V
  • 40mA @ 6V
  • 360mA stall current @ 6V
  • 10 oz inches torque @ 6V

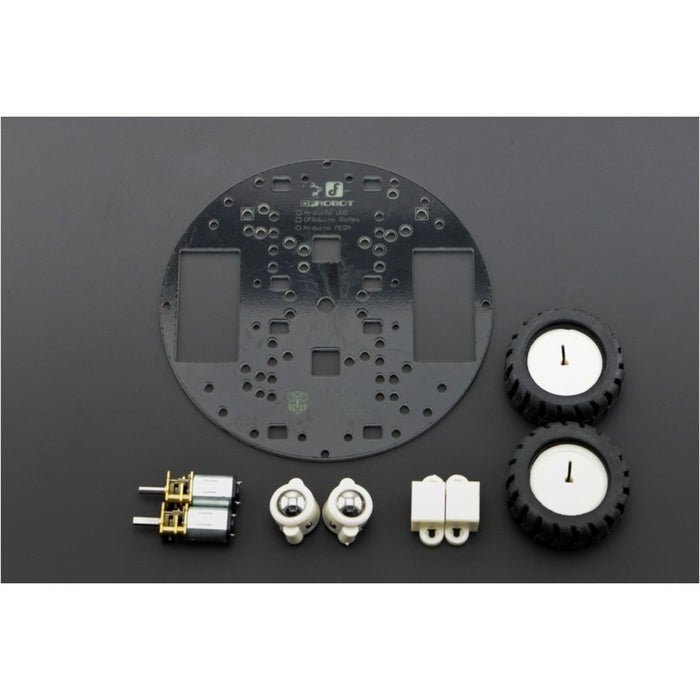

​ Shipping List
  • N20 Motors x2 (SKU:FIT0094)
  • Rubber Wheels x2 (SKU:FIT0085)

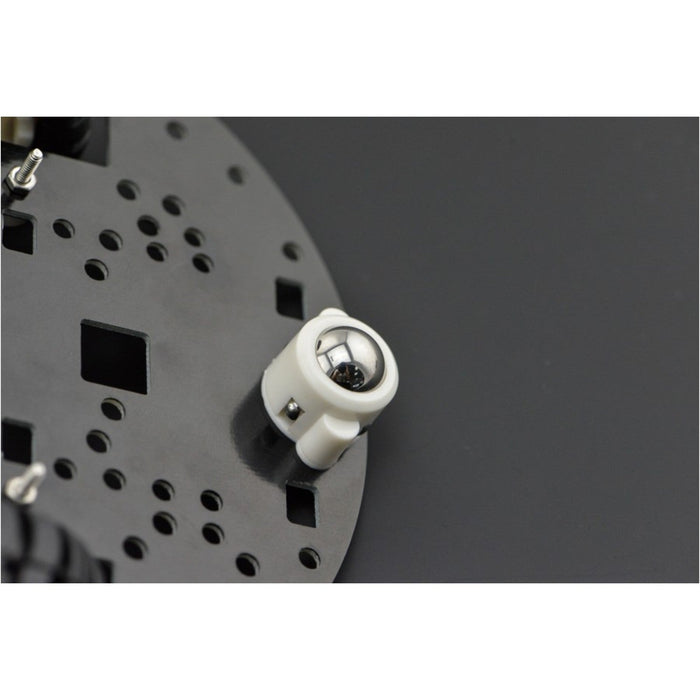

  • Universal ball caster Wheels x2
  • MiniQ 2WD Chassis x1
  • Motor brackets x2
  • Screws x1set
