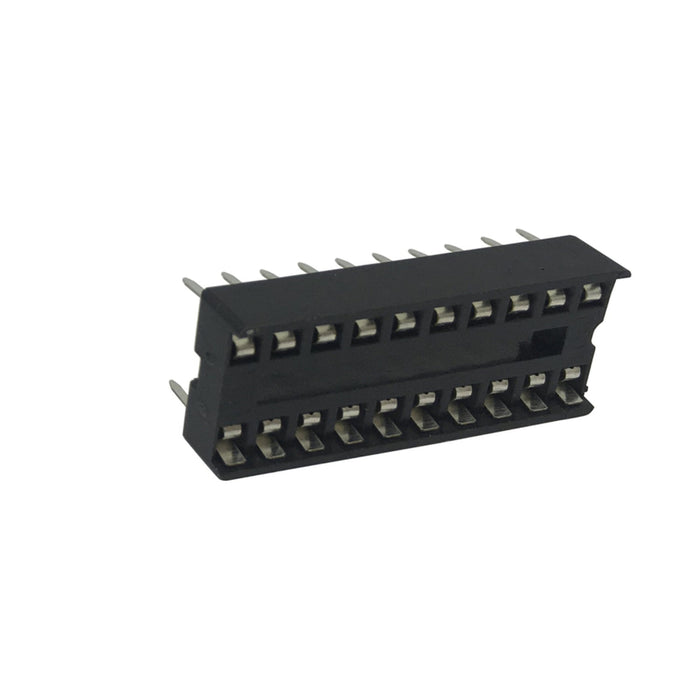

20 Pin Production (Low Cost) IC Socket
$0.70
|
Only 5 left
A 20-pin DIP IC socket for through-hole mounting. Using sockets allows you to easily remove or replace integrated circuits without desoldering – essential fo...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout
A 20-pin DIP IC socket for through-hole mounting. Using sockets allows you to easily remove or replace integrated circuits without desoldering – essential for prototyping, testing, or servicing equipment.
These low-cost production sockets feature tin-plated phosphor bronze or beryllium copper contacts for reliable connectivity.
Key Features
- 20-Pin DIP Format – Fits standard 0.3" wide DIP ICs
- Solder Tail Mounting – Through-hole PCB installation
- Tin-Plated Contacts – Reliable electrical connection
- Low Insertion Force – Easy IC installation and removal
Ideal For
- Prototyping circuits with replaceable ICs
- Microcontroller development (ATtiny, PIC, etc.)
- Equipment that may need chip replacement
- Testing multiple ICs in the same circuit
Specifications
- Pins: 20
- Pitch: 2.54mm (0.1")
- Row Spacing: 7.62mm (0.3")
- Contact Material: Tin-plated Phosphor Bronze / Beryllium Copper
- Mounting: Through-hole (solder tail)
Package Contents
- 1× 20-Pin IC Socket
Jargon buster
Plain-language definitions for the technical terms used above.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
