2.4GHz Ceramic Chip Antenna

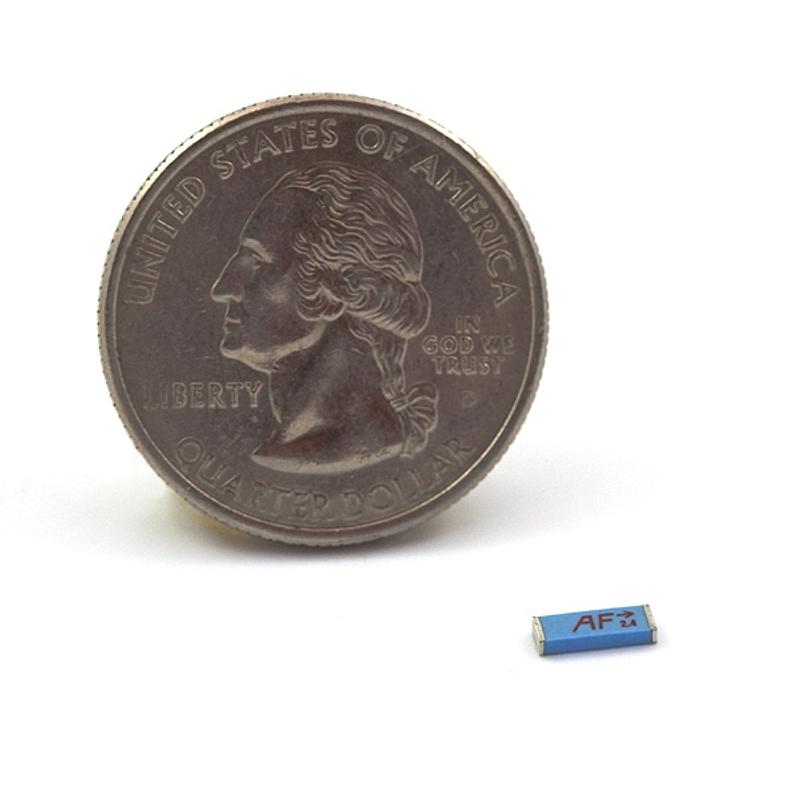

A tiny 2.4 GHz ceramic chip antenna designed for surface-mount PCB layouts. While it won't match the range of a full-size rubber duck antenna, its extremely ...
A tiny 2.4 GHz ceramic chip antenna designed for surface-mount PCB layouts. While it won't match the range of a full-size rubber duck antenna, its extremely compact footprint lets you add wireless capability to space-constrained designs. Works well with Nordic Semiconductor ICs and other 2.4 GHz wireless modules.
Key Features
- 2.4 GHz Frequency – Suitable for WiFi, Bluetooth, ZigBee, and Nordic protocols
- Ultra-Compact – Ceramic chip form factor fits onto any PCB layout
- Surface Mount – Solders directly to your board, no connector needed
Ideal For
- Custom PCB designs with Nordic nRF series ICs
- Space-constrained wireless projects
- Bluetooth and 2.4 GHz RF applications
Package Contents
- 1× 2.4 GHz Ceramic Chip Antenna
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
- RF
- RF means radio frequency, referring to signals used for wireless communication and other high-frequency electronics. A low-noise, stable power supply is important for RF circuits because power noise can affect signal quality and measurements.
- Zigbee
- A low-power wireless standard commonly used by smart home sensors, switches, and lights. It matters if you want the board to communicate with Zigbee devices or act as part of a home automation network.
