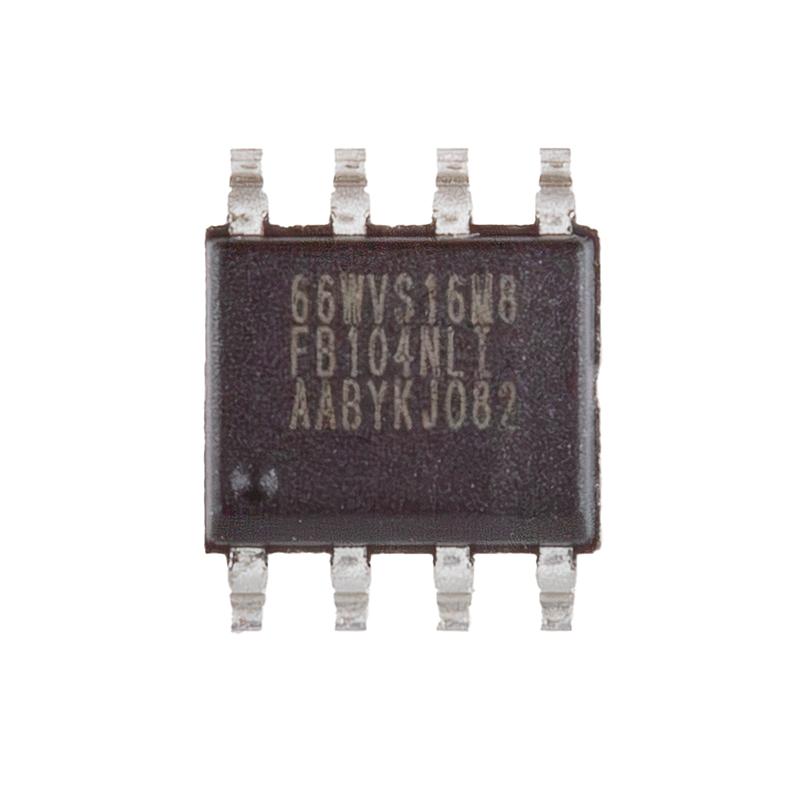

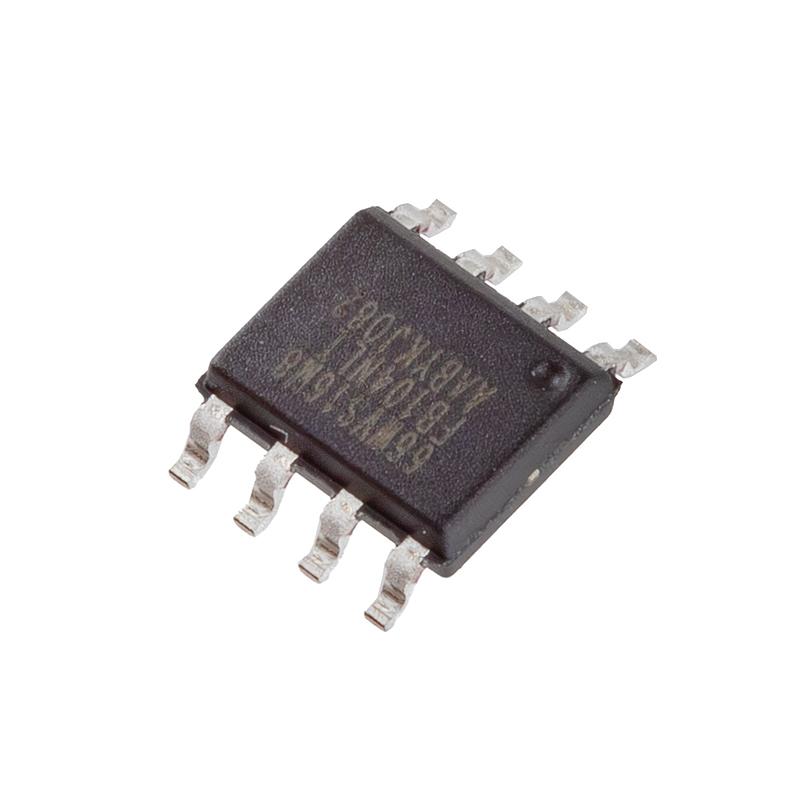

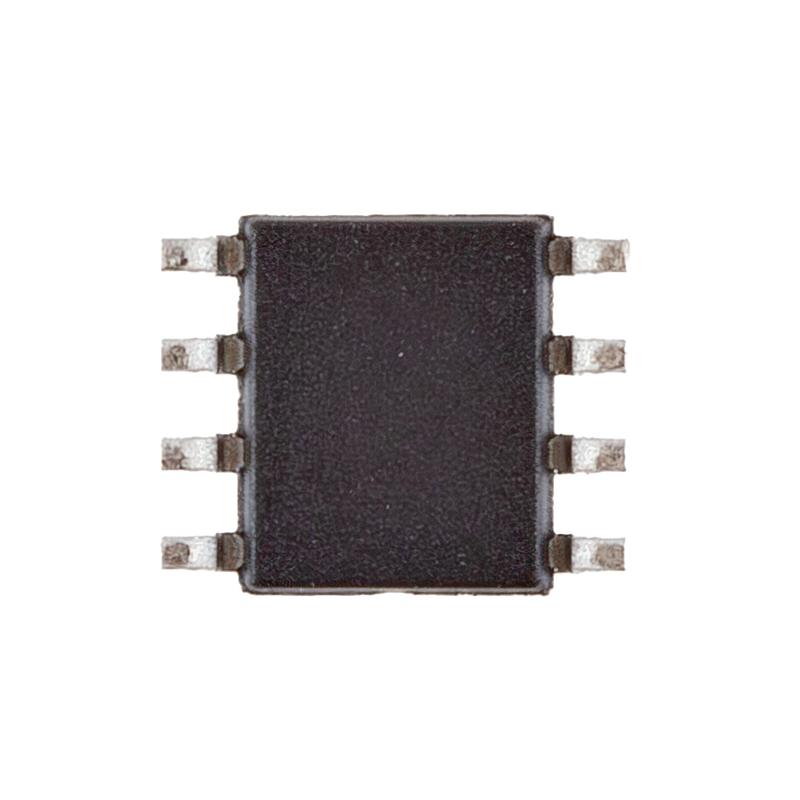

IS66WVS16M8FBLL-104NLI 128Mbit PSRAM IC
· MPN: COM-29556
The IS66WVS16M8FBLL-104NLI is an integrated PSRAM memory IC with 128 Mbits of pseudo static RAM, organised as 16 Megabytes words by 8 bits. It uses a self-re...
Get notified when back in stock
The IS66WVS16M8FBLL-104NLI is an integrated PSRAM memory IC with 128 Mbits of pseudo static RAM, organised as 16 Megabytes words by 8 bits. It uses a self-refresh DRAM array and is built as a dual die stack of two 64Mb die.
This device supports both SPI (Serial Peripheral Interface) and QPI (Quad Peripheral Interface), giving it a low signal-count connection for embedded designs. It uses just six signal pins: CLK, CE#, and four SIOs.
Hidden refresh operation is supported, and the part is specified for industrial temperature and Automotive A2-grade temperature use. In-band reset is supported instead of a dedicated RESET# pin, and the minimum transferred data size is 8 bits.
Features:
- PSRAM memory: 128 Mbits of Pseudo Static Random Access Memory
- Dual die stack: Two 64Mb die
- Protocol support: SPI (Serial Peripheral Interface)
- Protocol support: QPI (Quad Peripheral Interface)
- Low signal count: 6 signal pins: CLK, CE#, and 4 SIOs
- Refresh: Hidden Refresh Operation
- Temperature grade: Industrial temperature and Automotive A2-grade temperature
- Reset: In-Band Reset is supported instead of a dedicated RESET# pin
- Transfer size: Minimum transferred data size is 8 bits
Specifications:
- Memory Size: 128 Mbit
- Memory Type: PSRAM
- Organization: 16 M x 8
- Access Time: 7ns
- Maximum Clock Frequency: 104MHz
- Interface Type: SPI
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 2.7V
- Supply Current - Max: 300uA
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: +85°C
- Mounting: SMD/SMT
- Package: SOIC-8
- Moisture Sensitive: Yes
- MFG #: IS66WVS16M8FBLL-104NLI
A handy memory IC for custom embedded hardware that needs external PSRAM over an SPI-style interface.
