DC Diaphragm Pumps for Arduino Automatic Smart Plant Watering Kit
A compact 370 DC diaphragm pump designed for automated plant watering systems and other fluid transfer applications. With a wide operating voltage range of 3...
Get notified when back in stock

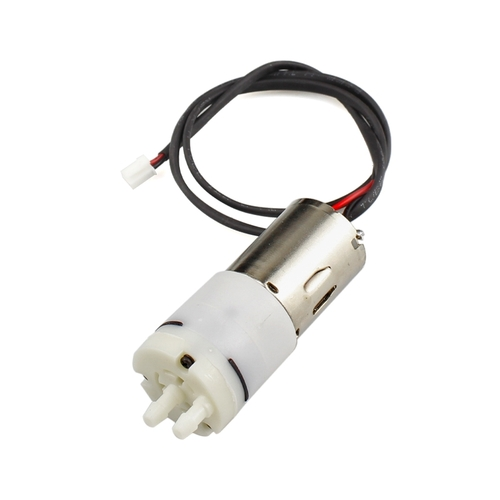

A compact 370 DC diaphragm pump designed for automated plant watering systems and other fluid transfer applications. With a wide operating voltage range of 3–24V, it's easy to integrate with Arduino and other microcontroller-based projects for smart irrigation control.
The self-priming diaphragm design provides reliable suction up to 5 metres, making it suitable for drawing water from reservoirs and delivering it through tubing to plants, cooling systems, or other fluid circuits.
Specifications
- Motor Type – 370 DC diaphragm pump
- Operating Voltage – 3–24V DC
- Power – 3.6W
- Flow Rate – 0.3–1.2 L/min
- Maximum Suction Lift – 5 metres
- Hydraulic Pressure – 2–3 kg
- Rotation Speed – 1,800–10,000 RPM
Ideal For
- Automatic smart plant watering systems
- Arduino and microcontroller fluid control projects
- Water-cooled systems and experimental models
- Small-scale fluid transfer and dispensing
Package Contents
- 1× DC Diaphragm Pump
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
