Here are the main Waveshare Raspberry Pi HATs that match “waveshare hat”, grouped by what they add to your Pi:
Storage (Raspberry Pi 5 PCIe → NVMe)
- Raspberry Pi 5 PCIe to M.2 NVMe SSD Adapter HAT (Pi 5 PCIe, M.2 NVMe, 16-pin cable) — $21.92
- Raspberry Pi 5 PCIe to M.2 NVMe SSD Adapter with PoE Function (B) (Pi 5 PCIe + PoE, single-board combo) — $39.00
- Raspberry Pi 5 PCIe to M.2 NVMe Adapter with PoE (Pi 5 PCIe + PoE) — $65.14
Power (UPS)
- UPS HAT (D) for Raspberry Pi, Supports 21700 Li battery (NOT included), 5V Uninterruptible Power Supply, Pogo Pins Connector (5V UPS, 21700 Li battery support, pogo pin connector) — $37.45
Cellular (4G/5G connectivity)
- Raspberry Pi 4G HAT SIM7600NA-H – LTE Cat-4, GNSS, North America (LTE Cat-4, GNSS, North America bands) — $98.00
- SIM8202G-M2 5G HAT (B) for Raspberry Pi, 5G/4G/3G, Snapdragon X55, Quad Antennas 5G NSA, Multi Band (5G/4G/3G, Snapdragon X55, quad antennas) — $619.65
Industrial / Comms
- Raspberry Pi 2-Channel Isolated CAN Expansion HAT (dual CAN, isolated) — $29.00
Displays (HAT form factor screens)
- Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen and Dual 0.96inch Blue OLED Secondary Screens (2" IPS LCD + dual 0.96" OLED, status/dashboard style) — $26.75
- Triple LCD HAT For Raspberry Pi, Onboard 1.3inch IPS LCD Main Screen and Dual 0.96inch IPS LCD Secondary Screens (1.3" IPS LCD + dual 0.96" IPS LCD, SPI) — $23.89
- 2.13inch E-Paper HAT (G), 250x122, Red/Yellow/Black/White, SPI Interface (2.13" e-paper, 250×122, 4-color, SPI) — $24.97
- 1872×1404, 10.3inch flexible E-Ink display HAT for Raspberry Pi (10.3" flexible E-Ink, 1872×1404) — $390.33
- 10.2" e-Paper Display (G) – 960x640, Quad-Color, SPI with driver Hat (10.2" e-paper, 960×640, quad-color, includes driver HAT) — $176.00
- 7.5" e-Paper Display (H) – 800x480, Red/Yellow/Black/White, SPI (7.5" e-paper, 800×480, 4-color, SPI) — $95.00
- 10.85" e-Paper Display (G) – 1360x480, Red/Yellow/Black/White, SPI (10.85" e-paper, 1360×480, 4-color, SPI) — $188.00
- 960×680, 13.3inch E-Ink display HAT (K) for Raspberry Pi, SPI interface (13.3" E-Ink, 960×680, SPI) — $246.94
What kind of Waveshare HAT are you looking for?
Collections
Showing 81-99 of 99 products · 1 unavailable product hidden
4-Channel Industrial Modbus RTU Relay Module – 30A, RS485, LED Indicators, Rail-Mount
MPN: 30461
8-Channel Modbus RTU Latching Relay Module (C) with RS485, Rail-Mounted
MPN: 30460
7.5" NFC-Powered e-Paper Display V2 – Wireless Power & Data Transfer
MPN: 30537
1.47" LCD Touch Display Module – 172x320 IPS, SPI/I2C, 262K Colors
MPN: 30499
Raspberry Pi 5 PCIe to Quad M.2 NVMe Adapter Board with Power Support
MPN: 30535
5MP Wide-Angle Camera Module for RV1106 Pico Boards – Low Light Sensitivity
MPN: 30591
ESP32-S3 Development Board – 2.4" AMOLED Touch Display, Accelerometer & Gyroscope
MPN: 30589
10.2" e-Paper Display (G) – 960x640, Quad-Color, SPI with driver Hat
MPN: 31124
7.5" e-Paper Display (H) – 800x480, Red/Yellow/Black/White, SPI
MPN: 31123
RP2350 1.47" Display Board – 172x320, Dual-Core, RGB LED
MPN: 31159
RP2350 Dual-core CAN Development Board with XL2515 Controller
MPN: 30945
Raspberry Pi 4G HAT SIM7600NA-H – LTE Cat-4, GNSS, North America
MPN: 30717
7-Inch DSI Capacitive Touchscreen – 1280x720, IPS, 10-Point Multi-Touch, Anti-Fingerprint
MPN: 30646
Raspberry Pi 3.5" Capacitive IPS Touch Screen – 320x480, 5-Point Touch
MPN: 30896
16-Channel Ethernet Relay Module – Modbus, PoE Support, Isolation Protection
MPN: 30795
RP2350 2" Touchscreen Board – 240x320 IPS, Camera Interface
MPN: 30711
8" DSI IPS Touch Display – 800x1280, Optical Bonded Glass, 10-Point Touch
MPN: 30326
ESP32-C6 WiFi 6 Development Board - 160MHz, USB & UART Support
MPN: 30951
Argon ONE V5 Case 0.96" OLED Display – 128x64, Raspberry Pi Status Monitor
MPN: 30953
4-Channel Industrial Modbus RTU Relay Module – 30A, RS485, LED Indicators, Rail-Mount
· MPN: 30461
The Waveshare Modbus RTU 4-Channel Relay Module provides reliable high-current switching for industrial automation over an RS485 bus. Each of the four SPDT relays handles loads up to 30A at 250VAC or 28VDC, making it suitable for controlling motors, lighting, HVAC systems, and other heavy-duty eq...

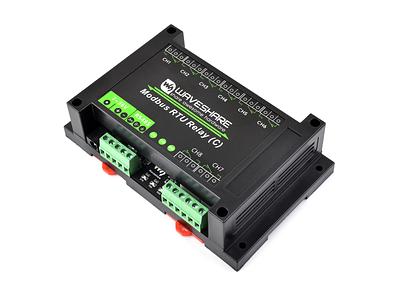

8-Channel Modbus RTU Latching Relay Module (C) with RS485, Rail-Mounted
· MPN: 30460
The 8-Channel Modbus RTU Latching Relay Module (C) is an industrial-grade relay controller with RS485 communication, designed for reliable automation in demanding environments. The latching relays retain their state after power loss, ensuring consistent operation without manual reset. Communicat...
7.5" NFC-Powered e-Paper Display V2 – Wireless Power & Data Transfer
· MPN: 30537
This 7.5" e-paper display is powered entirely via NFC — no batteries, no cables. Using passive near-field communication technology, it receives both power and image data wirelessly from an NFC-enabled smartphone or dedicated NFC reader board, making it a truly maintenance-free display solution. ...
1.47" LCD Touch Display Module – 172x320 IPS, SPI/I2C, 262K Colors
· MPN: 30499
A compact 1.47-inch IPS LCD display module with an integrated capacitive touch panel. Featuring 172×320 resolution and 262K colours, it delivers crisp, vibrant visuals with wide viewing angles in an ultra-small form factor (22.05 × 41.69 mm). Built around the JD9853 display driver (SPI) and AXS5...

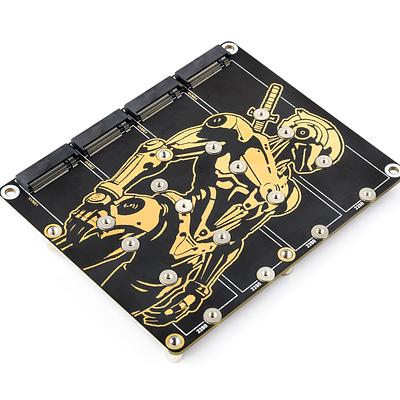

Raspberry Pi 5 PCIe to Quad M.2 NVMe Adapter Board with Power Support
· MPN: 30535
A PCIe adapter board for the Raspberry Pi 5 that supports up to four M.2 NVMe SSDs simultaneously. Connect via the Pi 5's PCIe interface using the included 16-pin cable and gain dramatically faster storage for NAS builds, data processing, and boot-from-SSD setups. The board includes an on-board ...
5MP Wide-Angle Camera Module for RV1106 Pico Boards – Low Light Sensitivity
· MPN: 30591
A 5-megapixel wide-angle camera module built around the MIS5001 sensor, designed for the Luckfox Pico series development boards powered by the RV1106 chip. With high sensitivity and low dark current, this module delivers clear, low-noise images even in dimly lit conditions. Available in two lens...

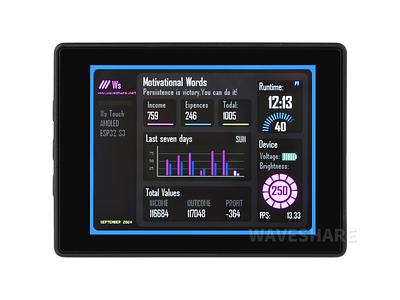

ESP32-S3 Development Board – 2.4" AMOLED Touch Display, Accelerometer & Gyroscope
· MPN: 30589
An ESP32-S3 development board with a stunning 2.41" AMOLED capacitive touch display (600×450 resolution, 16.7M colours). Integrates a QMI8658 6-axis IMU (accelerometer + gyroscope), PCF85063 RTC, Wi-Fi, Bluetooth 5, and a rich set of I/O — all on a compact board ready for HMI, wearable, and IoT d...
10.2" e-Paper Display (G) – 960x640, Quad-Color, SPI with driver Hat
· MPN: 31124
The Waveshare 10.2" e-Paper Display (G) is a large-format E-Ink screen with 960×640 resolution and quad-colour output — black, white, red, and yellow. Like real paper, it requires no backlight and retains its last displayed image without any power draw, making it ideal for signage and low-power a...
7.5" e-Paper Display (H) – 800x480, Red/Yellow/Black/White, SPI
· MPN: 31123
This 7.5" e-paper display (H) features 800×480 resolution with a four-colour palette of red, yellow, black, and white. Using microcapsule electrophoretic technology, it delivers a paper-like viewing experience with natural light reflection, an ultra-wide >170° viewing angle, and zero power consum...
RP2350 1.47" Display Board – 172x320, Dual-Core, RGB LED
· MPN: 31159
This compact development board from Waveshare combines the Raspberry Pi RP2350A microcontroller with a built-in 1.47″ LCD display, TF card slot, and RGB LED — all in a tiny form factor with pre-soldered headers and USB-C connectivity. The RP2350A features a unique dual-core, dual-architecture de...
RP2350 Dual-core CAN Development Board with XL2515 Controller
· MPN: 30945
Waveshare RP2350 CAN Development BoardUnleash the power of robust embedded systems with the cutting-edge Waveshare RP2350 CAN Development Board. Crafted meticulously for those who demand precision and reliability in their projects, this board is powered by the Raspberry Pi RP2350A Dual-core & Dua...
Raspberry Pi 4G HAT SIM7600NA-H – LTE Cat-4, GNSS, North America
· MPN: 30717
Add 4G LTE connectivity and GNSS positioning to your Raspberry Pi with this SIM7600NA-H HAT. It supports LTE Cat-4 data rates (up to 150 Mbps down / 50 Mbps up), phone calls, SMS, and multi-constellation satellite navigation — all controlled via standard AT commands. The HAT connects via the sta...

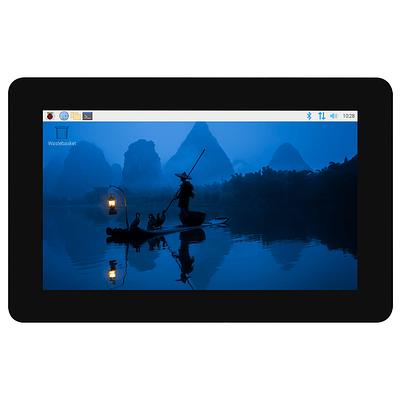

7-Inch DSI Capacitive Touchscreen – 1280x720, IPS, 10-Point Multi-Touch, Anti-Fingerprint
· MPN: 30646
This 7" DSI capacitive touchscreen from Waveshare features a 1280×720 IPS panel with 10-point multi-touch, toughened glass with optical bonding, and an anti-fingerprint coating. The integrated driver circuitry connects via a single FPC cable, resulting in a slim 9.3 mm total thickness. Compatibl...

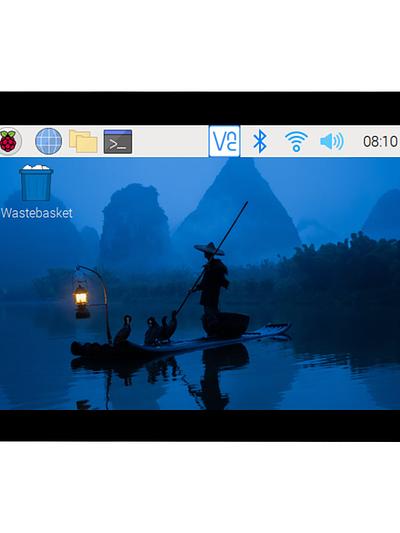

Raspberry Pi 3.5" Capacitive IPS Touch Screen – 320x480, 5-Point Touch
· MPN: 30896
Enhance your Raspberry Pi projects with the 3.5inch Capacitive Touch Display (F) - a remarkable small-scale visual and interactive powerhouse that brings your ideas to life with vibrant colors, precise touch control, and robust construction. Whether you're an avid maker, developer, or hobbyist, t...
16-Channel Ethernet Relay Module – Modbus, PoE Support, Isolation Protection
· MPN: 30795
The Waveshare Modbus POE ETH Relay 16CH is an industrial-grade 16-channel relay module controlled over Ethernet using Modbus RTU or Modbus TCP protocol. It features dual Ethernet ports for cascading, Power over Ethernet (PoE) support to IEEE 802.3af, and optocoupler-isolated relay drivers with fl...
RP2350 2" Touchscreen Board – 240x320 IPS, Camera Interface
· MPN: 30711
Unlock Your Development Potential with the RP2350 2inch Capacitive Touch DisplayEngineer the future with the RP2350 2inch Capacitive Touch Display Development Board, designed by Waveshare to be your go-to for innovation and interactive projects. This high-performance MCU board integrates a multit...

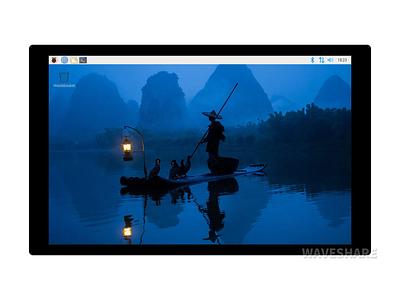

8" DSI IPS Touch Display – 800x1280, Optical Bonded Glass, 10-Point Touch
· MPN: 30326
The 8" DSI IPS Touch Display delivers a crisp 800×1280 resolution with 10-point capacitive touch, optical bonding, and toughened glass for a durable, responsive interface. The IPS panel provides vivid colours and wide 178° viewing angles. With the driver circuit integrated into a flexible FPC ca...
ESP32-C6 WiFi 6 Development Board - 160MHz, USB & UART Support
· MPN: 30951
A development board based on the ESP32-C6-WROOM-1-NX module, featuring a 32-bit RISC-V single-core processor running at up to 160 MHz. Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) — making it a versatile platform for IoT, smart home, and industrial automation projects....
Argon ONE V5 Case 0.96" OLED Display – 128x64, Raspberry Pi Status Monitor
· MPN: 30953
A 0.96″ white OLED display module designed to snap into the Argon ONE V5 case for Raspberry Pi. Once installed and configured, it displays real-time system information including CPU temperature, uptime, and IP address — useful for headless setups or quick status checks without connecting a monito...
